Looking for resource's on creating heat maps.

[Krueger]

Hello,

I'm an avid bass fisherman and was curious on what type of statistics I could get on catches in certain areas around a lake.

I've seen heat maps such as the US; such as what is shown here: https://support.sas.com/resources/papers/proceedings17/SAS0312-2017.pdf

I know very little about this but what I would like is to understand:

How I can grab an image of a lake

How can I plot coordinates to the above image

The log would basically have pretty standard fishing data: Season, Air Temp, Water Temp, Latitude, longitude location, fish type, fish size.

If anyone has any information on this, or even an alternative, I would very much appreciate it. If I caused confusion and can expand on anything just let me know.

Thanks,

[Reeza]

Google SGMAP

[GraphGuy]

If you're wanting to plot the data on an image of the lake, then as Reeza said, Proc SGmap would be the easiest way to start.

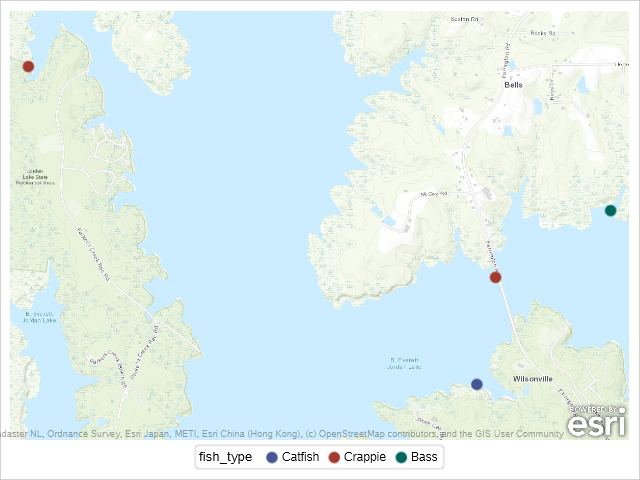

Here's an example:

data my_data;
length fish_type $50;
input lat long fish_type;
datalines;
35.742384 -79.0091287 Catfish
35.7641991 -79.047054 Crappie
35.7497305 -79.0075478 Crappie
35.7543135 -78.9978178 Bass
;
run;

proc sgmap plotdata=my_data;
/*
esrimap url="http://services.arcgisonline.com/arcgis/rest/services/World_Imagery";
*/
esrimap url="http://services.arcgisonline.com/arcgis/rest/services/World_Topo_Map";
scatter y=lat x=long / group=fish_type markerattrs=(symbol=circlefilled size=10pt);
run;

[Krueger]

Thanks this is very cool! I definitely need to investigate all of this further as what I had in mind regarding a topo map was to show the contour lines of the lake. Example here: "https://webapp.navionics.com/#boating@11&key=otlhFtwduP"

Maybe there's a way to add this as a second layer. Regardless I appreciate all the info and the examples are great.
