Hi all,

First, thanks so much for the great answers I've gotten on all my questions. You are all the best! I'm almost there with my project and I just need help with one more part. . .



I'm running SAS 9.4 on EG 7.15 and I have a butterfly chart where some values show 4000% and most others show 5% - 20%. I am able to label everything (thanks to great code provided here) EXCEPT those that are massive values. So I need to label some inside the bars and some outside the bars. I know there's an option for this but that doesn't come in until SAS 9.5. Here's the code I'm using for now:



proc format;
 picture posval low-<0='00000%'
 (prefix='-')
  0='9%'
  0<-high='00000%';
run;

data have;
call streaminit(123);
do date='01jan2022'd  to '20jan2022'd;
 value=rand('integer',-100,100);
 n=rand('integer',100,4000);
 group=ifc(value>0,'pos_diff','neg_diff');
 if value>0 then datalabel_pos=cats(value,"%|(",n,")");
  else datalabel_neg=cats(value,"%|(",n,")");
 output;
 call missing(datalabel_pos,datalabel_neg);
end;
format date date9.  value posval.;
run;



proc sgplot data=have;
hbarparm category=date response=value/group=group name='x' ;
text x=value y=date text=datalabel_pos/splitchar='|'   strip contributeoffsets=none
SPLITCHAR='|'  SPLITJUSTIFY=left SPLITPOLICY=splitalways position=right ;
text x=value y=date text=datalabel_neg/splitchar='|'   strip contributeoffsets=none
SPLITCHAR='|'  SPLITJUSTIFY=left SPLITPOLICY=splitalways position=left ;
keylegend 'x'/title='';
yaxis label=' ';
xaxis label=' ' offsetmin=0.1 offsetmax=0.1;
run;





Thank you!



Paula

1 ACCEPTED SOLUTION

Accepted Solutions
Ksharp
Super User
proc format;
 picture posval low-<0='00000%'
 (prefix='-')
  0='9%'
  0<-high='00000%';
run;

data have;
call streaminit(123);
do date='01jan2022'd  to '10jan2022'd;
 value=rand('integer',-100,100);
 n=rand('integer',100,4000);
 group=ifc(value>0,'pos_diff','neg_diff');
 datalabel=cats(value,"%|(",n,")");

 /*greater than 80 data label is inside,otherwise outside*/
 if value>=80 then _value=value-8;
  else if value<=-80 then _value=value+8;
   else if 0<value<=80 then _value=value+8;
    else if -80<value<0 then _value=value-8;

 output;
end;
format date date9.  value posval.;
run;



proc sgplot data=have;
hbarparm category=date response=value/group=group name='x' ;
text x=_value y=date text=datalabel/splitchar='|'   strip contributeoffsets=none
SPLITCHAR='|'  SPLITJUSTIFY=center SPLITPOLICY=splitalways position=center ;
keylegend 'x'/title='';
yaxis label=' ';
xaxis label=' ';
run;




View solution in original post

2 REPLIES 2
Ksharp
Super User
proc format;
 picture posval low-<0='00000%'
 (prefix='-')
  0='9%'
  0<-high='00000%';
run;

data have;
call streaminit(123);
do date='01jan2022'd  to '10jan2022'd;
 value=rand('integer',-100,100);
 n=rand('integer',100,4000);
 group=ifc(value>0,'pos_diff','neg_diff');
 datalabel=cats(value,"%|(",n,")");

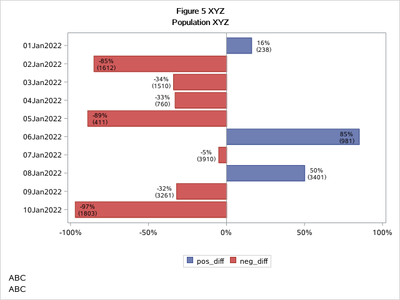

 /*greater than 80 data label is inside,otherwise outside*/
 if value>=80 then _value=value-8;
  else if value<=-80 then _value=value+8;
   else if 0<value<=80 then _value=value+8;
    else if -80<value<0 then _value=value-8;

 output;
end;
format date date9.  value posval.;
run;



proc sgplot data=have;
hbarparm category=date response=value/group=group name='x' ;
text x=_value y=date text=datalabel/splitchar='|'   strip contributeoffsets=none
SPLITCHAR='|'  SPLITJUSTIFY=center SPLITPOLICY=splitalways position=center ;
keylegend 'x'/title='';
yaxis label=' ';
xaxis label=' ';
run;




SASGeek
Obsidian | Level 7
Thank you so very much. I truly appreciate your helping me through this project!
