Fun With SAS ODS Graphics: Easter Egg Cookie (Polygon + Vector + Scatter + Spline Plots)

[tc]

Sunday is Easter, so here's a SAS ODS Graphics take on a delicious-looking Easter egg cookie. Happy Easter, all!

* Fun With SAS ODS Graphics: Easter Egg Cookie (Polygon + Vector + Scatter + Spline Plots)
  Inspired by delicious-looking cookie pictured at chicagofoodmagazine.com/news/easter-2025;

data points;                                                         * Create points for Easter Egg Cookie made from an ellipse and a circle;
poly=1;                                                              * One polygon of points;
do x=-.75, -.75 to .75 by .01, .75;                                  * Top is a vertical half-ellipse (width=.75, height=1);
  y=sqrt(1-x**2/.75**2);
  if y^=. then output;                                               * Polygons don't like missing values, kids!;
end;
do x=.75, .75 to -.75 by -.01, -.75;                                 * Bottom is a semi-circle (r=.75, generate points right to left for polygon);
  y=-sqrt(.75**2-x**2);
  if y^=. then output;                                               * Polygons don't like missing values, kids!;
end;
x=.; y=.;                                                            * Done with polygons;
do vy=.15, .45, .75;                                                 * Draw 3 'frosting' lines using vectors;
  vx1=-.75*sqrt(1-vy**2)+.075;
  vx2=-vx1;
  vcolor=(vy=.75);                                                   * Make top line yellow (1), others white (0);
  if vx1^=. and vx2^=. then output;
end;
vx1=.; vx2=.; vy=.;                                                  * Done with vectors;

dots=5;                                                              * Scatter plot of 16 frosting dots group in 2 groups of 2 lines of staggeed points (1st line has 5 points);
scolor=0;                                                            * Bottom group of dots will be white;
do wy=.15, .45;                                                      * Calc y value for each group of lines;
  l=-.75*sqrt(1-(wy+.1)**2)+.15;                                     * Calc left starting point (x);
  do i=0 to dots-1;                                                  * Print each row of dots (four lines of 5, 4, 4, 3 dots in each);
    sx=l+i*abs(l)*2/(dots-1); sy=wy+.1; output;                      * Calc x value of point for bottom line;
    if i<=(dots-2) then do;                                          * Stagger x values for top line of each group and recalc y value;
      sx=l+i*abs(l)*2/(dots-1)+.5*abs(l)*2/(dots-1); sy=wy+.2; output; end;
  end;
  dots=dots-1;                                                       * Top group of dots will contain one less dot than bottom group;
  scolor=1;                                                          * Top group of dots will be yellow;
end;
sx=.; sy=.;                                                          * Done with frosting scatter plot points;

do s2y=.01 to -.72 by -.65/25;                                       * Generate x/y points for candy sprinkles covering bottom semi-circle of cookie;
  xl=-sqrt(.75**2-s2y**2)+.025;                                      * Compute how much space we have to work with for each line;
  xr=-xl;
  n=floor(abs(xl-xr)/(.65/25));                                      * "Nudge" lines over to right so each row is centered;
  nudge=(abs(xl-xr)-n*(.65/25))/2;
  do s2x=xl+nudge to xr by .65/25;                                   * Fill each row with sprinkles;
    s2color=rand("Integer", 0, 4);                                   * Assign colors (0-4 = white red yellow blue green);
    if s2x^=. then output;
  end;
end;

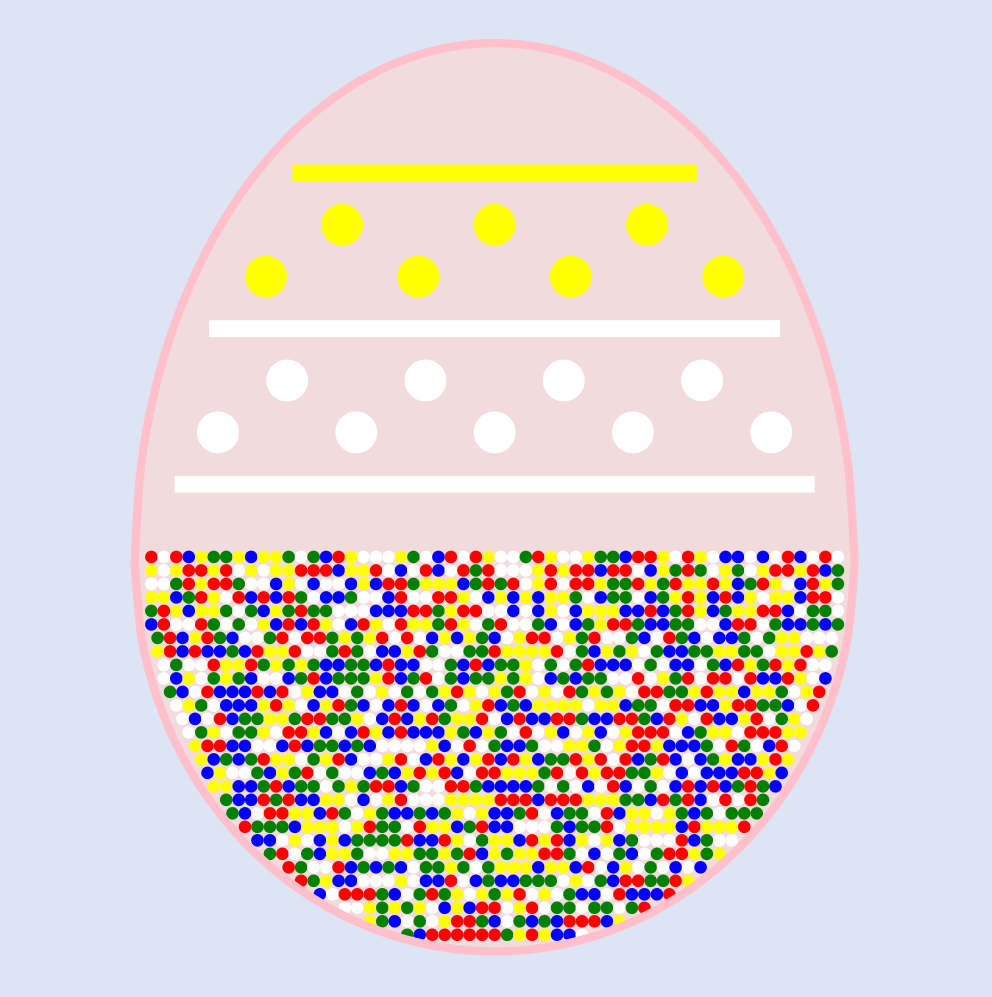

                                                                     * Hard work is done, let's 'bake' a cookie (Polygon/Vector/Scatter/Spline plots);
ods graphics / reset antialias border=off height=5in width=5in imagefmt=svg;
proc sgplot data=points aspect=1 noborder noautolegend nowall;       * Generate Easter Egg - polygon plot of half-ellipse + semi-circle points, spline plot border, text plot message;
styleattrs backcolor=cxDDE4F4;                                       * Pastel background;
polygon x=x y=y id=poly / nooutline fill nooutline fillattrs=(color=cxF2DBDD transparency=0); * Eather Egg Cookie;
vector x=vx2 y=vy / xorigin=vx1 yorigin=vy noarrowheads lineattrs=(color=white thickness=6pt) colormodel=(white yellow) colorresponse=vcolor; * Frosting lines;
scatter x=sx y=sy / markerattrs=(symbol=circlefilled color=white size=16pt) colormodel=(white yellow) colorresponse=scolor; * Frosting dots;
scatter x=s2x y=s2y / markerattrs=(symbol=circlefilled color=white size=5.25pt) colormodel=(white red yellow blue green) colorresponse=s2color; * Candy sprinkles;
spline x=x y=y / lineattrs=(color=pink thickness=3pt);               * Draw smoother outline of Easter Egg;
xaxis display=none min=-.925 max=.925 offsetmax=.001 offsetmin=.001; * Limit x/y axis bounds;
yaxis display=none min=-.80 max=1.05 offsetmax=.001 offsetmin=.001;
run;

TASTIER VERSION OF ABOVE
