Batman
Quartz | Level 8

This is the tail end of a program that colors states into two groups and also creates a filled circle around the city of Seattle.  It creates a legend for the two groups of states, however, I would like to add the color for the circle around Seattle to the legend, which comes from the ANNO dataset.   Is there a way to tell SAS to include that in the legend?



/* Separate projected data into map and anno datasets */
DATA usmap anno;
SET us48_proj;
IF flag=1 THEN OUTPUT anno;
ELSE OUTPUT usmap;
RUN;

proc format;
value TEC_NAME
1='Group 1'
2='Group 2'
;

TITLE1 "Example";
pattern1 value=msolid color=Yellow;
pattern2 value=msolid color=Brown;
PROC GMAP DATA=usmap MAP=usmap ANNO=anno;
ID ID;
CHORO cat / levels=11 COUTLINE=black MISSING;
FORMAT cat TEC_NAME.;
RUN; QUIT;

1 ACCEPTED SOLUTION

Accepted Solutions
GraphGuy
Meteorite | Level 14

I don't know of a built-in way to add extra things to the official legend in SAS/Graph GMap. I do what you're doing - annotate the extra stuff. Here's an example:

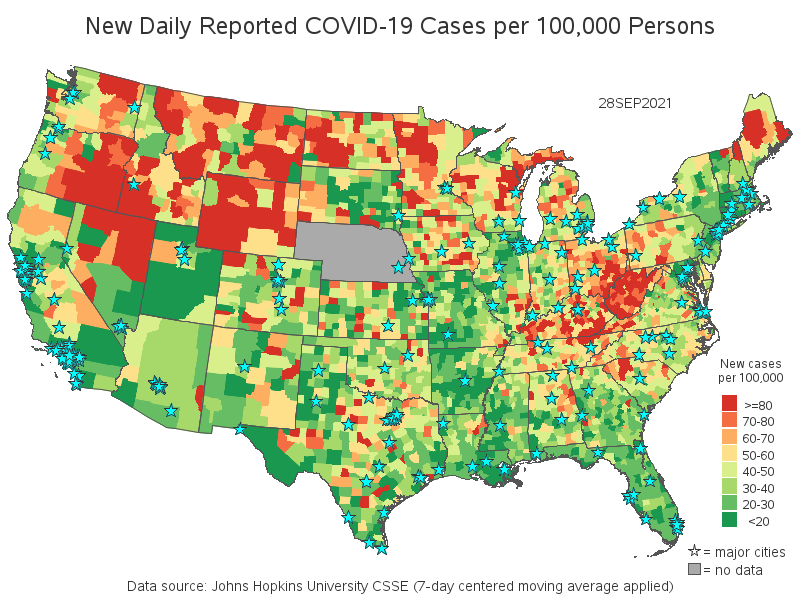

https://robslink.com/SAS/democd104/covid_uscounty_snapshots.sas




View solution in original post

3 REPLIES 3
GraphGuy
Meteorite | Level 14

I don't know of a built-in way to add extra things to the official legend in SAS/Graph GMap. I do what you're doing - annotate the extra stuff. Here's an example:



https://robslink.com/SAS/democd104/covid_uscounty_snapshots.sas




Batman
Quartz | Level 8
That is helpful. Is there a way to display the coordinates on the map to I can try to moved the anno items around?
GraphGuy
Meteorite | Level 14

If you use an xsys and ysys value of '3', then the coordinate system for anno is 0-100 in each direction.
