SanjayAhir
Obsidian | Level 7

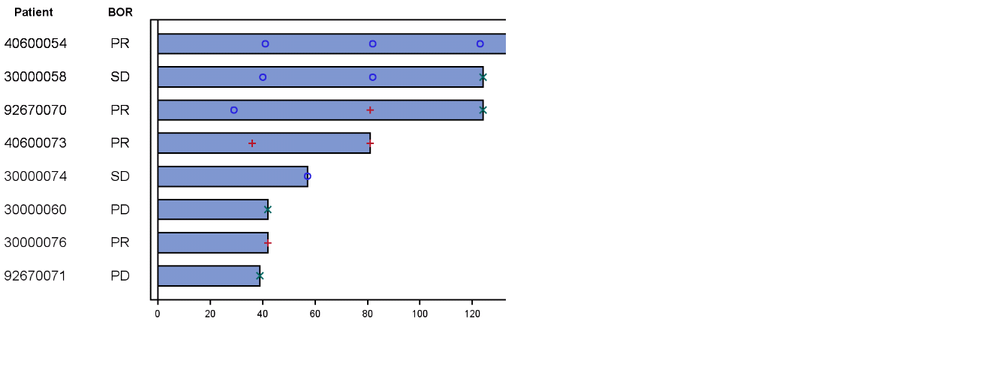

How to reduce font size of value under column Patients and BOR. please find attached screen shot.



Swimmer plot.png


proc template;
define statgraph swim_plot;
dynamic _title1 _title2 _footnotel _footnoter _disp;
begingraph/ designwidth=500px designheight=450px;

layout lattice/columns=3 columngutter=2 columnweights=(.12 .10 .70);

column2headers;
entry halign=center " Patient"/textattrs=(size=6pt weight=bold);
entry halign=center " BOR"/textattrs=(size=6pt weight=bold);
endcolumn2headers;

/*Patient*/
layout overlay/walldisplay=none border=false
yaxisopts=(display=none reverse=true type=discrete)
xaxisopts=(display=none offsetmin=0.3 offsetmax=0);
scatterplot y=SUBJID x=constant/markercharacter=subjid markerattrs=(size=0);
endlayout;

/*BOR*/
layout overlay/walldisplay=none border=false
yaxisopts=(display=none reverse=true type=discrete)
xaxisopts=(display=none offsetmin=0.3 offsetmax=0);
scatterplot y=subjid x=constant/markercharacter=bor markerattrs=(size=0);
endlayout;

/*Swimmer Plot*/
layout overlay/
yaxisopts=(reverse=true display=none tickvalueattrs=(weight=bold))
xaxisopts=(griddisplay=off labelattrs=(size=5pt weight=bold) label="Treatment Duration (Days)"
tickvalueattrs=(size=5pt)
linearopts=(viewmin=0 viewmax=200 tickvaluesequence = (start=0 end=200 increment=20)));
barchart x=subjid y=ady/name="ARM" barwidth=0.6 orient=horizontal group=trtp grouporder=ascending
outlineattrs=(color=black);
scatterplot x=rsdy y=subjid / group=avalc name="s" markerattrs=( size=5) includemissinggroup=false;
discretelegend "ARM" / valueattrs=(size=5);
discretelegend "s" / location=inside valign=bottom halign=right across=1 valueattrs=(size=4);
endlayout;
endlayout;
endgraph;
end;
run;

2 REPLIES 2
DR_Majeti
Quartz | Level 8

Hi,



If not solution not found, please use below.



Use Markercharattrs=(size=8) in the scatterplot statement



Thanks,

Durga

DanH_sas
SAS Super FREQ

@DR_Majeti is correct, but also consider replacing your MARKERCHAR-based SCATTERPLOTs with AXISTABLEs, if your version of SAS supports it.
