Control Cell Headers in SGPANEL

[Jagadishkatam]

Dear Experts,

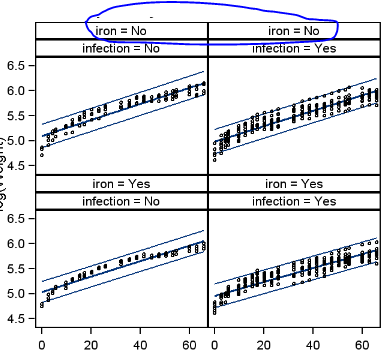

This is with regard to query i have with regard to the cell headers in the graph generated by the SGPANEL. From the graph like the one below, SGPANEL procedure could be used. However the cell headers generated are displayed separately. I wanted to check if we could display the circled text as one rather than two. Is it possible. could you please provide a possible option if we have or any hint. appreciate your response.

I am using sas9.3.

[data_null__]

What does it look like if you use LAYOUT=LATTICE?

[Jagadishkatam]

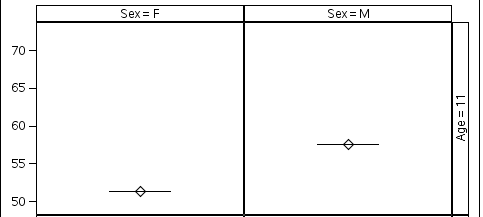

when i do not use the layout=lattice  i get

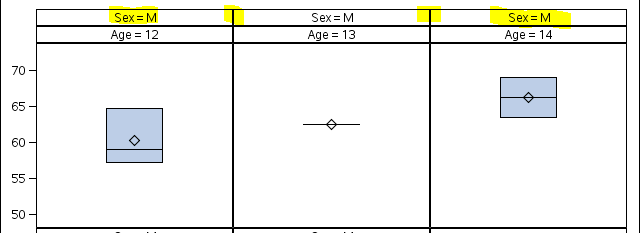

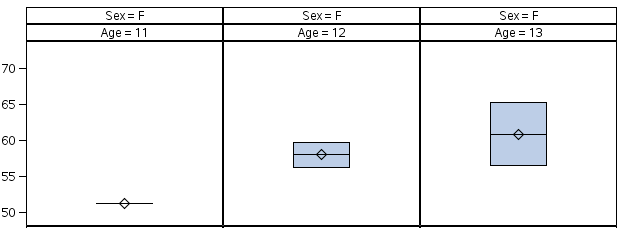

with layout=lattice then

However i wish to remove the highlighted portion and get only single sex=M for all the three cells

[data_null__]

I understand what you want.  Sometimes an alternative that conveys the same data and meaning can be just as good, or better.

I think in your case that a LATTICE layout solves your problem and is aesthetically pleasing.
