Hi is it possible to add gridlines on the xaxistable on the proc sgplot?



here's my sample code. Note that I only created a dummy data named sample data set.



/*create sample data*/
data sample; brand = "Brand1";count = 10;Month = 1;output; brand = "Brand1";count = 22;Month = 2;output; brand = "Brand1";count = 12;Month = 3;output; brand = "Brand2";count = 11;Month = 1;output; brand = "Brand2";count = 31;Month = 2;output; brand = "Brand2";count = 2;Month = 3;output; brand = "Brand3";count = 21;Month = 1;output; brand = "Brand3";count = 41;Month = 2;output; brand = "Brand3";count = 11;Month = 3;output; run; /*plot graph*/ proc sgplot data=sample;
vbar brand /response=count group=Month groupdisplay=CLUSTER;
xaxistable count /colorgroup=Month location=inside nostatlabel valueattrs=(size=10 weight=normal) separator;
xaxis display=(nolabel noline noticks);
yaxis display=(noline noticks) grid;
run;

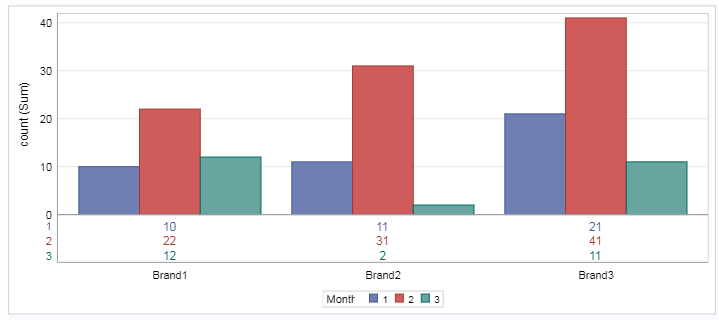

The resulting graph would be like this but I'm required to add gridlines on the table underneath the bar graph.








2 REPLIES 2
Ksharp
Super User
data sample;
brand = "Brand1";count = 10;Month = 1;output;
brand = "Brand1";count = 22;Month = 2;output;
brand = "Brand1";count = 12;Month = 3;output;
brand = "Brand2";count = 11;Month = 1;output;
brand = "Brand2";count = 31;Month = 2;output;
brand = "Brand2";count = 2;Month = 3;output;
brand = "Brand3";count = 21;Month = 1;output;
brand = "Brand3";count = 41;Month = 2;output;
brand = "Brand3";count = 11;Month = 3;output;
run;

/*plot graph*/
proc sgplot data=sample;
vbar brand /response=count group=Month groupdisplay=CLUSTER;
xaxistable count /colorgroup=Month location=inside nostatlabel
valueattrs=(size=10 weight=normal) separator;
xaxis display=(nolabel noline noticks); yaxis display=(noline noticks) grid;
refline "Brand1" "Brand2" "Brand3"/axis=x discreteoffset=0.3;
refline "Brand1" "Brand2" "Brand3"/axis=x discreteoffset=-0.3;
refline "Brand1" "Brand2" "Brand3"/axis=x;
run;
albertsamaniego
Fluorite | Level 6

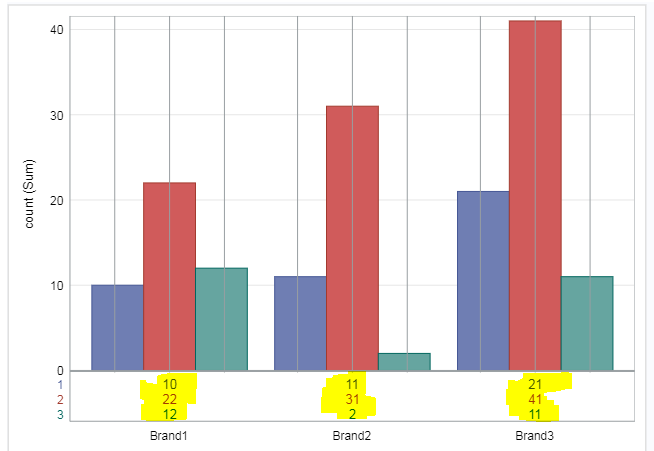

hi sorry for the confusion, what I mean is to add grid lines on the table highlighted below and not on the chart itself.




thanks for the reply anyway.
