How to correctly make the html form code of SAS Job to fetch the param...

Rian0126

Hi,

I have a SAS Job with HTML form code which is used in iframe of SAS Visual Investigator's (SVI) page. Without the HTML form code, the SAS Job code correctly fetch the parameter values such as customer_id and first_name of the current entity's SVI page. But when I added the HTML form code, the HTML form code cannot fetch the parameter values; thus, it cannot pass the value to SAS Job code.

See attached SAS Job code and HTML form code.

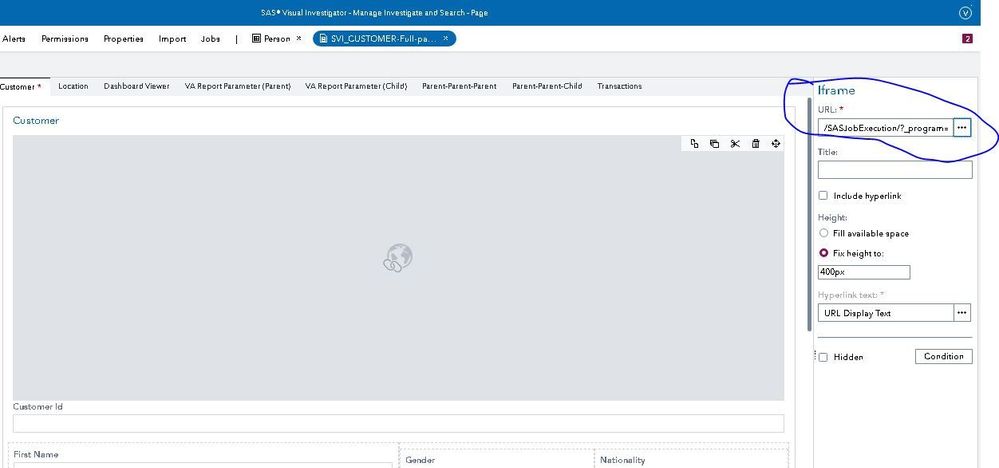

This is the URL I used in iframe of SAS Job page:

/SASJobExecution/?_program=%2FUsers%2Fviadmin%2FHTML%20JOB%20Test%2FTest&customer_id={%1}&first_name={%2}&last_name={%3}

with parameter values

{%1} = customer_id
{%2} = first_name
{%3} = last_name

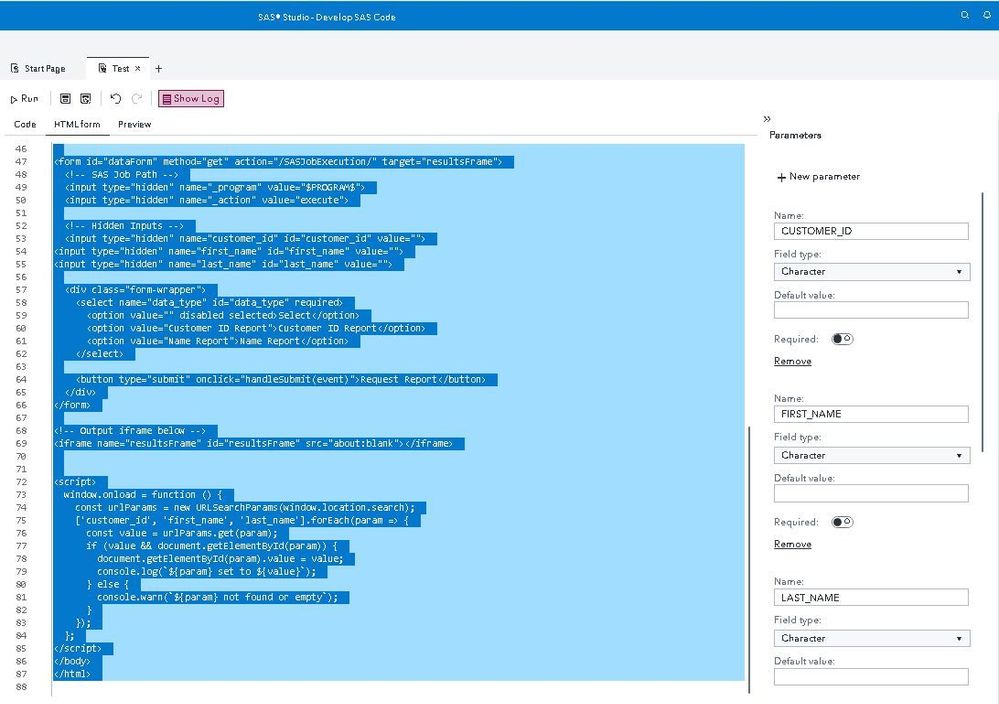

Below is the html form code I used:

<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<title>Run SAS Job</title>
<style>
body {
margin: 0;
padding: 8px;
font-family: "Segoe UI", Arial, sans-serif;
font-size: 14px;
background-color: white;
}

.form-wrapper {
display: flex;
align-items: center;
gap: 8px;
margin-bottom: 12px;
}

select, button {
font-family: "Segoe UI", Arial, sans-serif;
font-size: 14px;
padding: 4px 6px;
border: 1px solid #999;
border-radius: 2px;
background-color: white;
color: #0078B8;
}

button:hover {
background-color: #f0f0f0;
cursor: pointer;
}

iframe {
width: 100%;
height: 300px;
background: white;
border: 1px solid #999;
}
</style>
</head>
<body>

<input type="hidden" name="CUSTOMER_ID" value="{%1}">
<input type="hidden" name="FIRST_NAME" value="{%2}">
<input type="hidden" name="LAST_NAME" value="{%3}">

<div class="form-wrapper">
<select name="data_type" id="data_type" required>
<option value="" disabled selected>Select</option>
<option value="Customer ID Report">Customer ID Report</option>
<option value="Name Report">Name Report</option>
</select>

<button type="submit" onclick="handleSubmit(event)">Request Report</button>
</div>
</form>

<iframe name="resultsFrame" id="resultsFrame" src="about:blank"></iframe>

const iframe = document.getElementById('resultsFrame');
const form = document.getElementById('dataForm');

// Show "Running..." message inside iframe
const runningHTML = `
<html>
<head>
<style>
body {
font-family: "Segoe UI", Arial, sans-serif;
font-size: 14px;
padding: 10px;
color: orange;
}
</style>
</head>
<body>
⏳ Job Running... <span style="font-weight: normal">Started at: ${new Date().toLocaleString()}</span>
</body>
</html>
`;

const blob = new Blob([runningHTML], { type: 'text/html' });
iframe.src=URL.createObjectURL(blob);

// Submit form after short delay to allow iframe update
setTimeout(() => {
form.submit();
}, 150);
}
</script>
</body>
</html>

I hope someone can help me on solving the correct code to use in HTML form code. Thanks.

- Rian

DeMer

Don't know about SVI, but normally parameters are inserted in a form with a $parm$ syntax-

https://documentation.sas.com/doc/da/pgmsascdc/v_063/jobexecug/p1221ogz3uk22an1pdab2glza2mj.htm

Rian0126

Hi @DeMer

Sorry, I think I'm a bit confused on the exact process on how to do it. Do you mean I change the URL of the iframe by changing the parameters? So instead of the original I used in HTML form code:

<input type="hidden" name="CUSTOMER_ID" value="{%1}">
<input type="hidden" name="FIRST_NAME" value="{%2}">
<input type="hidden" name="LAST_NAME" value="{%3}">

it will become:

<input type="hidden" name="CUSTOMER_ID" value="$CUSTOMER_ID$" required>
<input type="hidden" name="FIRST_NAME" value="$FIRST_NAME$" required>
<input type="hidden" name="LAST_NAME" value="$LAST_NAME$" required>

Is my understanding correct?

Thank you.

Regards,

Adrian

DeMer

I would guess you would change the form to

based on the note in the doc:

Note: Use lowercase letters in the $param$ string.

Rian0126

Stll not working, still canot fetch the parameter values.

Rian0126

It just shows:

NOTE: customer_id="$customer_id$

DeMer

Don't know about SVI. Normal job forms can be retrieved with a URL of the form

/SASJobExecution/?_program=xxx&_action=form&customer_id=zzzz

that will do the parameter substitution.
