Change percent to freq in sgplot/hbar

[FloB]

Dear all,

I am trying to get a hbar graph using sgplot to represent the relative contribution of scores (0 to 3) in 2 groups.

I used the following code:

data tempo;
input codetrt score nbpat;
allpat=1;
cards;
1 0 12
1 1 8
1 2 5
1 3 8
2 0 5
2 1 6
2 2 9
2 3 15
run;

proc sgplot data=tempo pctlevel=group ;
hbar codetrt / response=allpat group=score stat=percent seglabel freq=nbpat;
run;

I would like to get the frequency counts instead of percentages inside each segment.

Could anyone help?

Thanks

[PeterClemmensen]

Like this?

proc sgplot data=tempo pctlevel=group ;
hbar codetrt / response=allpat group=score stat=freq seglabel freq=nbpat;
run;

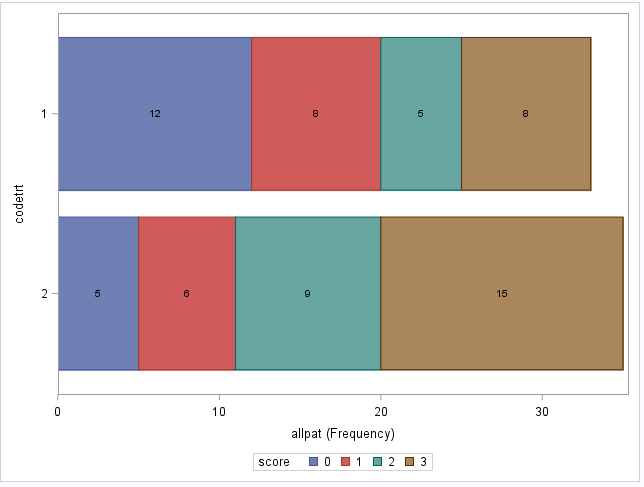

Result:

[FloB]

Not quite...

As in the same time, I want the cumulative percent to add-up to 100% in each group, and get the cumulative percent on the x-axis.

[Rick_SAS]

See the article "Construct a stacked bar chart in SAS where each bar equals 100%", which includes code for PROC SGPLOT. The article does not use the SEGLEVEL option, but I think you already know how to do that.

[FloB]

Thank you for the reference, but I have no problem to produce a 100% stacked bar plot.

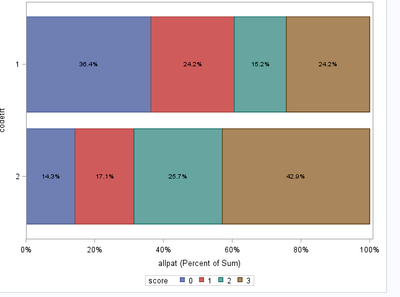

The only thing I want to change from the graph I posted is to get the freqencies instead of the percentages displayed inside the segments of the bars

[ballardw]

---

@FloB wrote:

Thank you for the reference, but I have no problem to produce a 100% stacked bar plot.

The only thing I want to change from the graph I posted is to get the freqencies instead of the percentages displayed inside the segments of the bars

---

I suspect you'll have to summarize the data before plotting so you have a variable containing the frequency that can be used to display with a DATALABEL=<freqvar> if you are going to plot percentages.

Going back to the days of GCHART in SAS 6 almost never used the stat= approach to create graphs because I almost always wanted/needed something that was not available. So I would summarize the data to have all the values I needed and control the plot.

[FloB]

Thank you all for considering my request.


I finally managed to get what I wanted with the sganno= option and the annotate facilities using a table from a previous PROC FREQ
