Add a reference point on geomaps

[Renan_Crepaldi]

Hello!

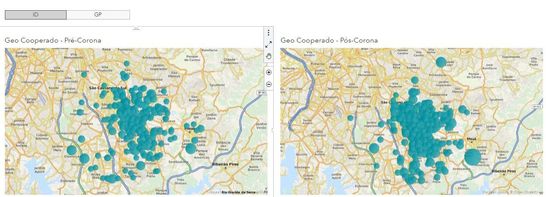

I've created a Geomap that plots a bubble for each client according to their address, but I wanted to add a specific bubble (or a marker) to identify the store they had an order.

There are 2 different stores, and I've added a filter to select only one each time:

Is there a feature on this type of object? The table I used for this dashboard already have the coordinates for the store.

Thanks!

[PetriRoine]

Hello @Renan_Crepaldi

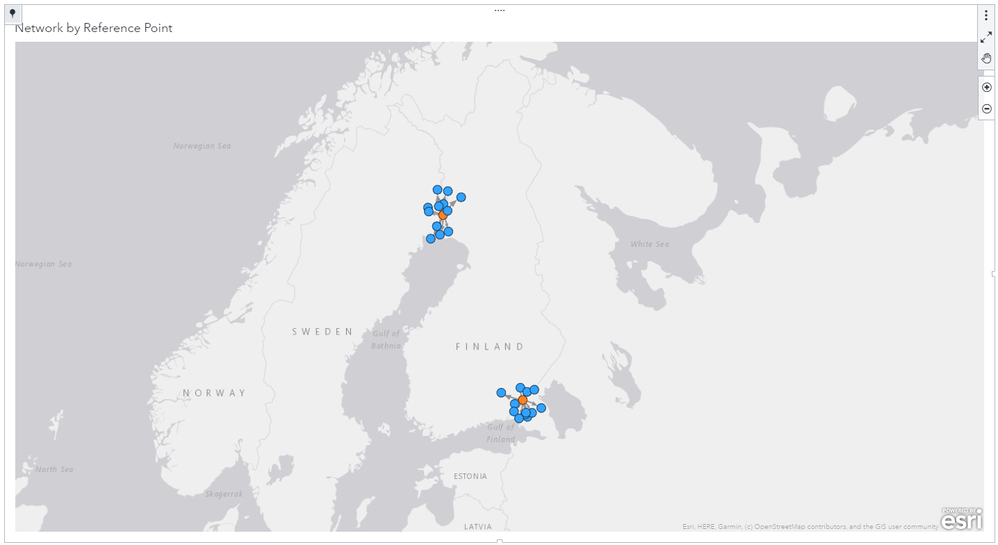

I'm not exactly sure what you are looking for, but maybe Geo Network (Type: Hierarchical) would do the trick? I have two Reference points with links to Clients.

Is this something that you are looking for?

Best regards,

Petri

[Renan_Crepaldi]

Hello, Petri! That's exactly what I want!

How do you create this Geo Network? Is it just a Hierarchy?

I've tried creating one and it doesn't seem to be the correct way.

Could you show me the way you did it?

Thanks!

[PetriRoine · Accepted solution]

Sure,

This is how my data looks like:

Notice that I have one hierarchy defined as: Reference Point -> Customer

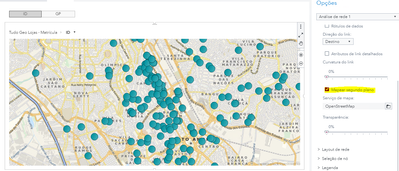

The object I use is called Geo network in VA8.5. In VA8.3 you can use Network Analysis object. You get the map to background from Options -> Network Display -> Network Diagram -> Map background = checked.

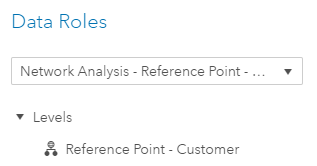

The only data role you need is to assign the hierarchy you created to Levels.

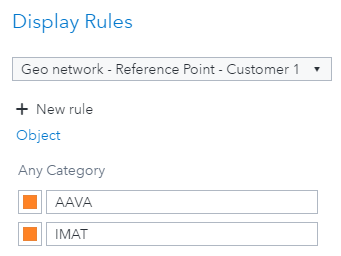

Then I manually created coloring rules for Reference Points:

I think that was it. Please ask if you get stuck at any point.

Best regards,

Petri

[Renan_Crepaldi]

Hi, Petri.

I made all the configurations you specified, but the links are not showing 😞

I saw that there's an option of the link direction, and even after I activate it, nothing happens.

Just to wrap up all the things I've done:

Created a hierarchy

Setted it as a level

Activated the map background

Created the custom rules for the reference points

Have I missed any step?

Thank you very much for the help!

[FalkoSchulz]

It seems you performed a drill down to level 2 of your hierarchy - as such you will only see nodes on that level. If you want to see both levels (and related link between) - go to the top level (you can use the top level breadcrumb) and make sure the 'additional level' slider in the options panel is at least set to 2.

Hope this helps. Falko

[Renan_Crepaldi]

It worked!

Thank you, Fako.

I marked Petri's reply as a solution since he passed every detail to make this type of view, but thank you again for putting this detail up.

Best regards,

Renan
