Hello,



I have to create a figure equivalent to this one:

proc summary data=sashelp.cars noprint nway;
	var MSRP;
	class Origin DriveTrain;
	output out=cars_summary lclm= uclm= mean= /autoname;
run;

data cars_for_plot;
	set sashelp.cars cars_summary;
run;

proc sgpanel data=cars_for_plot;
	panelby DriveTrain / layout=columnlattice noborder noheader columns=3 skipemptycells sort=ascformat;
	rowaxis type=log label="MSRP";
	colaxis label=" " fitpolicy=rotatealways valuesrotate=vertical discreteorder=formatted;
	keylegend "ssss" / position=right noborder;
	vbarparm category=Origin response=MSRP_Mean / group=DriveTrain groupdisplay=cluster grouporder=ascending baseline=10 datalabel datalabelfitpolicy=none name="ssss";
	highlow x=Origin high=MSRP_UCLM low=MSRP_LCLM / group=DriveTrain highcap=serif lowcap=serif;
	scatter x=Origin y=MSRP / group=DriveTrain jitter markerattrs=(symbol=circlefilled size=5) transparency=0.50 clusterwidth=0.7;
	refline 1e5 / lineattrs=(pattern=shortdash) label="LLOD";
run;

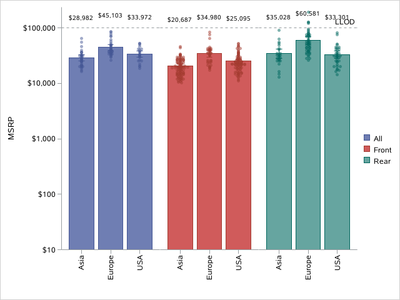

I have received a request to improve two visual aspects:

  • move the refline label outside of the plot so that it is only printed once per row: is this possible with sgpanel?
  • move the vbar labels up so that these do not overlap with error bars and the scatter plot: is this possible?

Thank you for your input in advance.

1 ACCEPTED SOLUTION

Accepted Solutions
Ksharp
Super User
proc summary data=sashelp.cars noprint nway;
 var MSRP;
 class Origin DriveTrain;
 output out=cars_summary lclm= uclm= mean= /autoname;
run;

data cars_for_plot;
 set sashelp.cars cars_summary nobs=nobs;
 if _n_ =nobs-2 or _n_= nobs-1 or _n_= nobs then ref=1e5;
    if _n_=nobs then label="LLOD" ;

 if not missing(MSRP_Mean) then y_datalabel=MSRP_Mean+120000;
run;

proc sgpanel data=cars_for_plot;
 panelby DriveTrain / layout=columnlattice noborder noheader columns=3 skipemptycells sort=ascformat;
 rowaxis type=log label="MSRP";
 colaxis label=" " fitpolicy=rotatealways valuesrotate=vertical discreteorder=formatted;
 keylegend "ssss" / position=right noborder;
 vbarparm category=Origin response=MSRP_Mean / group=DriveTrain groupdisplay=cluster grouporder=ascending baseline=10  name="ssss";
    scatter x=Origin y=y_datalabel/markerchar=MSRP_Mean labelstrip;

 highlow x=Origin high=MSRP_UCLM low=MSRP_LCLM / group=DriveTrain highcap=serif lowcap=serif;
 scatter x=Origin y=MSRP / group=DriveTrain jitter markerattrs=(symbol=circlefilled size=5) transparency=0.50 clusterwidth=0.7;
 refline ref / lineattrs=(pattern=shortdash) label=label labelpos=max ;
run;




View solution in original post

1 REPLY 1
Ksharp
Super User
proc summary data=sashelp.cars noprint nway;
 var MSRP;
 class Origin DriveTrain;
 output out=cars_summary lclm= uclm= mean= /autoname;
run;

data cars_for_plot;
 set sashelp.cars cars_summary nobs=nobs;
 if _n_ =nobs-2 or _n_= nobs-1 or _n_= nobs then ref=1e5;
    if _n_=nobs then label="LLOD" ;

 if not missing(MSRP_Mean) then y_datalabel=MSRP_Mean+120000;
run;

proc sgpanel data=cars_for_plot;
 panelby DriveTrain / layout=columnlattice noborder noheader columns=3 skipemptycells sort=ascformat;
 rowaxis type=log label="MSRP";
 colaxis label=" " fitpolicy=rotatealways valuesrotate=vertical discreteorder=formatted;
 keylegend "ssss" / position=right noborder;
 vbarparm category=Origin response=MSRP_Mean / group=DriveTrain groupdisplay=cluster grouporder=ascending baseline=10  name="ssss";
    scatter x=Origin y=y_datalabel/markerchar=MSRP_Mean labelstrip;

 highlow x=Origin high=MSRP_UCLM low=MSRP_LCLM / group=DriveTrain highcap=serif lowcap=serif;
 scatter x=Origin y=MSRP / group=DriveTrain jitter markerattrs=(symbol=circlefilled size=5) transparency=0.50 clusterwidth=0.7;
 refline ref / lineattrs=(pattern=shortdash) label=label labelpos=max ;
run;
