Hi,



I am using below code for generating forest plot, very new to plotting, I only have 9.3 SAS and the report should be in RTF.



proc sgplot data=indata;

scatter x=perc y=dptxt / xerrorlower=lo xerrorupper=hi markerattrs=(symbol=circleFilled color=black);
refline 0 / axis=x lineattrs=(color=grey pattern=20);



xaxis label="LSMean difference and 95% CI" min=-0.4;
yaxis  label="Subgroup Category";
run;

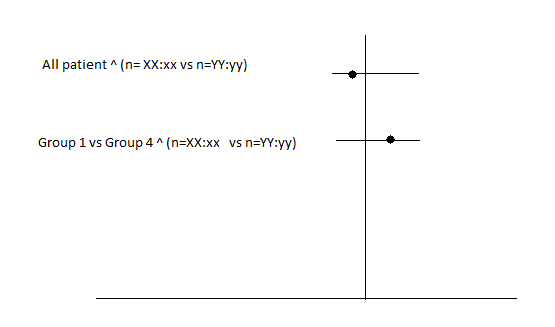

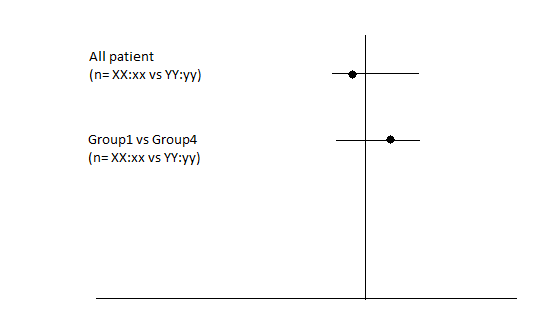

the value labels are currently "All patient  ^ (n=XX:xx vs n=YY:yy)" and "Group1 vs Group4  ^ (n=XX:xx vs n=YY:yy)"



even after using SPLITCHAR='^', fitpolicy in Yaxis attribute in SGPLOT  and ods escapechar = '~'; somehow the axis label is not getting separated.



I have tried multiple other things but I am unsuccessful in the same, can anyone help please



figure1figure1figure2figure2

4 REPLIES 4
Ksharp
Super User

I have no problem.



data x;
y="All patient  ^ (n=XX:xx vs n=YY:yy)      ";x=1;output;
y="Group1 vs Group4  ^ (n=XX:xx vs n=YY:yy)"; x=2;output;
run;

proc sgplot data=x;
scatter x=x y=y;
yaxis fitpolicy=splitalways splitchar='^' splitjustify=left;
run;










kunjgemi
Calcite | Level 5

HI, I tried the same code with multiple instances, but every time I am getting the same error. Always!





19483 data x;
19484 y="All patient ^ (n=XX:xx vs n=YY:yy) ";x=1;output;
19485 y="Group1 vs Group4 ^ (n=XX:xx vs n=YY:yy)"; x=2;output;
3 The SAS System 05:23 Monday, July 22, 2019

19486 run;

NOTE: The data set WORK.X has 2 observations and 2 variables.
NOTE: Compressing data set WORK.X increased size by 100.00 percent.
Compressed is 2 pages; un-compressed would require 1 pages.
NOTE: DATA statement used (Total process time):
real time 0.01 seconds
cpu time 0.02 seconds

19487
19488 proc sgplot data=x;
19489 scatter x=x y=y;
19490 yaxis fitpolicy=splitalways splitchar='^' splitjustify=left;
-----------
79
76
ERROR 79-322: Expecting a THIN.
ERROR 76-322: Syntax error, statement will be ignored.
19491 run;

NOTE: The SAS System stopped processing this step because of errors.
NOTE: PROCEDURE SGPLOT used (Total process time):
real time 0.00 seconds
cpu time 0.00 seconds

Ksharp
Super User

I don't know why you can't run the code. Here is my LOG . I am running SAS Academic On-Demand .



1          OPTIONS NONOTES NOSTIMER NOSOURCE NOSYNTAXCHECK;
 68
 69         data x;
 70         y="All patient  ^ (n=XX:xx vs n=YY:yy)      ";x=1;output;
 71         y="Group1 vs Group4  ^ (n=XX:xx vs n=YY:yy)"; x=2;output;
 72         run;

 NOTE: 数据集 WORK.X 有 2 个观测和 2 个变量。
 NOTE: “DATA 语句”所用时间(总处理时间):
       实际时间          0.00 秒
       用户 CPU 时间     0.00 秒
       系统 CPU 时间     0.00 秒
       内存              662.31k
       OS 内存           25508.00k
       时间戳           2019-07-22 下午12:13:21
       Step Count                        32  Switch Count  1
       页错误数                       0
       页回收数                     129
       页交换数                        0
       主动上下文切换数        6
       被动上下文切换数      0
       块输入操作数            0
       块输出操作数           264


 73
 74         proc sgplot data=x;
 75         scatter x=x y=y;
 76         yaxis fitpolicy=splitalways splitchar='^' splitjustify=left;
 77         run;

 NOTE: “PROCEDURE SGPLOT”所用时间(总处理时间):
       实际时间          0.23 秒
       用户 CPU 时间     0.04 秒
       系统 CPU 时间     0.01 秒
       内存              7607.59k
       OS 内存           31276.00k
       时间戳           2019-07-22 下午12:13:21
       Step Count                        33  Switch Count  1
       页错误数                       0
       页回收数                     1582
       页交换数                        0
       主动上下文切换数        146
       被动上下文切换数      0
       块输入操作数            0
       块输出操作数           464

 NOTE: 从数据集 WORK.X. 读取了 2 个观测

 78
 79         OPTIONS NONOTES NOSTIMER NOSOURCE NOSYNTAXCHECK;
 90
Ksharp
Super User

I know what is going on. You are using low version SAS 9.3. Try this one .



data x;
y="All patient"||'0D0A'x||" (n=XX:xx vs n=YY:yy)      ";x=1;output;
y="Group1 vs Group4"||'0D0A'x||" (n=XX:xx vs n=YY:yy)"; x=2;output;
run;

proc sgplot data=x;
scatter x=x y=y;
run;
