Log Reviewing Made Easy

1 Like

Paper 1049-2021

Author

Peter Knapp, U.S. Department of Commerce

Abstract

One of the golden rules when running SAS® programs is to review the Log for problems. Unfortunately, many users ignore the Log and focus on the output. Adding a dynamically generated report to the bottom of the Log that shows the number of problems (such as run-time errors, missing values, and uninitialized variables) is a great way to identify issues with the program run that need addressing. Enhancing the report to include information about the number of observations flowing through the program can not only help ensure that the program runs without mechanical errors, but also runs as expected. This presentation discusses a Log Report macro that provides summary log information, explains how it works, and details how to modify it so you can tailor it for your organization's specific needs. The Log Report was developed using SAS® Enterprise Guide® on a Windows environment using SAS macro and Base SAS code. The Log Report also works in SAS® Studio.

Watch the presentation

Watch Log Reviewing Made Easy by the author on the SAS Users YouTube channel.

INTRODUCTION

I support 150 trade analysts who use SAS to administer international trade law. Most of the analysts have no programming background yet need to customize large template programs with case specific information. They find reviewing the thousands of lines of the Log for problems difficult and confusing. I developed a Log Report macro that summarizes problems with program runs and provides information about the flow of data. This allows the analysts to quickly determine if their programs have run properly and helps them find code that needs revision. Use of the Log Report can speed up the debugging process as it identifies problems that need review and correction.

For this paper I am using a simplified Log Report that will be reviewing a small program. The Log Report can easily be expanded to capture more indicators of problems with the run program run along with information about the data flow.

Reviewing the Log for Program Run Problems

One of the golden rules when running SAS programs is to review the Log for problems. Using the Log Summary built into SAS Enterprise Guide and SAS Studio it's easy to find Syntax Errors and Warnings.

Finding other issues explained in the notes can be more challenging. Examples include:

Uninitialized variables
Missing values
Repeats of by values
Converted variables
Division by zero detected
Invalid data values
Rejected missing weight variable values

Sample Program

When the following example program is run it generates an uninitialized variable NOTE, a run time ERROR, and WARNING message.

DATA CARS;
    SET SASHELP.CARS;
    IF ORIGIN EQ 'USA';
    DISCOUNT = MSRP - INVOIC;
RUN;

PROC PRINT DATA = CAR;
    TITLQ "CAR DISCOUNTS";
RUN;

SAS Enterprise Guide Log

When running the program in SAS Enterprise Guide the log looks like this:

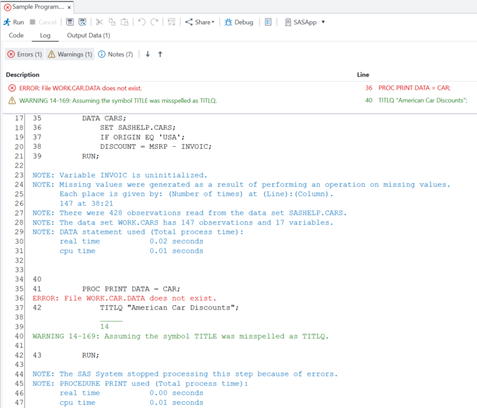

Sample program Log in SAS Enterprise Guide

In the Log Summary the Errors tab indicates the total number of syntax and run time errors. The Description section lists the error messages and the ERROR messages appear in the Log. Clicking on an ERROR message in the Description section will highlight the error listed in the Log.

Similarly, the Warnings tab indicates the total number of warning messages. The Description section lists the warning messages and the WARNING messages appear in the Log. Clicking on a WARNING message in the Description section will highlight the warning listed in the Log.

Notes behave the same way in the Log Summary. Because the Log Summary identifies and lists all the notes, it can be difficult to know which notes are indicative of problems with the program run.

SAS Studio Log

When running the program in SAS Studio the Log looks like this:

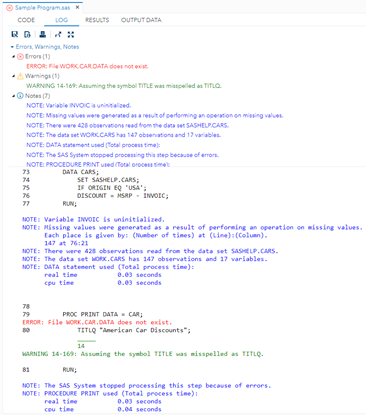

Sample program Log in SAS Studio

In the Log Summary the total number of errors are displayed in the Errors section along with a listing of the errors. Clicking on an ERROR message in the Errors section will highlight the error listed in the Log. The Warning section behaves the same way as does the Notes section.

As with SAS Enterprise Guide the SAS Studio Log Summary identifies and lists all the notes. It can be difficult to know which notes are indicative of problems with the program run.

The Log Report Is Different Than the Log Summary

The Log Summary tabulates all notes together. You need to review all notes to find notes indicative of problems with the program run. The Log Report Identifies specific kinds of Notes indicative of problems with the program run. There is no need to review all notes. The report can be enhanced to include information about the number of observations flowing through the program.

IMPLEMENTING THE LOG REPORT

To implement the Log Report, you need to add the following functionality into your program.

Redirect the Log to an external file.
Run the program to be reviewed.
Reset the Log Destination to the Log.
Run the Log Report macro.

REDIRECT THE LOG TO AN EXTERNAL FILE

The first step is to use a FILENAME Statement to define the external file path and file name. The following is an example of a FILENAME statement.

FILENAME FILEREF "C:\Sample Program.log";

Alternatively, you can dynamically define the external file with the same path and name of SAS program to be reviewed by the Log Report, though with a 'LOG' suffix instead of a 'SAS' suffix. Here is an example of a FILENAME statement that dynamically generates the path and file name.

FILENAME FILEREF "%SYSFUNC(TRANWRD(%UPCASE(&_SASPROGRAMFIE), .SAS, .LOG))";

The automatic macro variable _SASPROGRAMFILE is used to identify the path and name of the SAS program. The %SYSFUNC macro function executes SAS functions or user-written functions. The TRANWRD macro function replaces all occurrences of a substring in a character string. The %UPCASE macro function converts values to uppercase.

After the FILENAME is defined SAS needs to be directed to send the log destination to an external file. Here is an example of a PROC PRINTO which defines destinations, other than ODS destinations, for SAS procedure output and for the SAS log.

PROC PRINTTO LOG = FILEREF NEW;
RUN;

RUN THE PROGRAM TO BE REVIEWED

The second step is to run the program. The Log of the program run will be sent to the external file C:\Sample Program.log. Here is the sample program.

DATA CARS;
    SET SASHELP.CARS;
    IF ORIGIN EQ 'USA';
    DISCOUNT = MSRP - INVOIC;
RUN;

PROC PRINT DATA = CAR;
RUN;

RESET THE LOG DESTINATION TO THE LOG

The third step is to reset the log destination back to the default log destination. Here is an example of a PROC PRINTO setting the log destination to the SAS Log.

PROC PRINTTO LOG = LOG;
RUN;

RUN THE LOG REPORT MACRO

The fourth step is to run the Log Report macro which does six things.

Copies the saved Log to the default log destination.
Reads the saved Log.
Looks for key words.
Accumulates instances of key words.
Saves key word totals into macro variables.
Writes key word totals to the Log Report.

Copy the Saved Log to the Default Log Destination

The %MACRO statement defines the beginning of the macro LOG_REPORT.

%MACRO LOG_REPORT;

DATA _NULL_;
    INFILE FILEREF;
    INPUT;
    PUTLOG _INFILE_;
RUN;

The DATA _NULL_ uses the following statements and keywords. The INFILE statement specifies an external file to read with an INPUT statement. The INPUT statement without arguments brings an input data record into the input buffer without creating any SAS variables. The PUTLOG statement writes a message to the SAS log. The _INFILE_ automatic variable contains the value of the current input record read from a file.

Read the Saved Log

The DATA _NULL_ reads each line of the log.

DATA _NULL_;
    INFILE FILEREF END = END
           MISSOVER PAD;
    INPUT LINE $250.;

The END = option specifies a variable that SAS sets to 1 when the current input data record is the last in the input file. The MISSOVER option prevents an INPUT statement from reading a new input data record if it does not find values in the current input line for all the variables in the statement. The PAD option pads the records that are read from an external file with blanks. The INPUT statement reads each line of the Log into the variable LINE.

Look for Key Words and Accumulate Instances of Key Words

The conditional logic processes each line of the Log and accumulates key word counters when it finds instances of keywords.

IF UPCASE(COMPRESS(SUBSTR(LINE,1,6))) = "ERROR:" THEN
    ERROR + 1;
ELSE IF UPCASE(COMPRESS(SUBSTR(LINE,1,8))) = "WARNING:" THEN
    WARNING + 1;
ELSE DO;
    UNINIT_I = INDEX(UPCASE(LINE),'UNINITIALIZED');
    IF UNINIT_I THEN
        UNINIT + 1;
END;

When looking for the keyword ‘ERROR:’ the code uses UPPER, COMPRESS, and SUBTR functions to check the first six digits of the variable LINE. When 'ERROR:' is found the code accumulates the variable ERROR. The same three functions are used to check the first eight digits of the variable LINE to look for the keyword ‘WARNING:’. When found the WARNING accumulator is increased. To look for the keyword ‘UNINITIALIZED’ the INDEX and UPCASE functions are used. When found UNINIT accumulator is increased.

Save Key Word Totals into Macro Variables

The CALL SYMPUTX routine is used to assign a value to a macro variable and remove both leading and trailing blanks. Macro variables created by CALL SYMPUTX are not available until after the DATA Step is run. The CALL SYMPUTX routine looks like this.

  CALL SYMPUTX('ERROR', ERROR);
  CALL SYMPUTX('WARNING', WARNING);
  CALL SYMPUTX('UNINIT', UNINIT);
RUN;

Write Key Word Totals to the Log

The %PUT statements to write the Log Report to the SAS Log. The %MEND statement. ends the macro definition.

    %PUT **************************************************************;
    %PUT * GENERAL SAS ALERTS: Determine cause of non-zero instances. *;
    %PUT **************************************************************;
    %PUT # OF ERRORS                  = &ERROR;
    %PUT # OF WARNINGS                = &WARNING;
    %PUT # OF UNINITIALIZED VARIABLES = &UNINIT;
%MEND LOG_REPORT;

Results of Log Report Macro Run

The following Log shows the Log Report macro run which does the following six things:

Copies the saved Log to the default log destination.
Reads the saved Log.
Routes the log to the default log destination.
Looks for key words.
Saves key word totals into macro variables.
Writes key word totals to the Log Report using %PUT statements.

Note: %PUT statements don’t appear in the Log.

106        %LOG_REPORT
MPRINT(LOG_REPORT):   DATA _NULL_;
MPRINT(LOG_REPORT):   INFILE FILEREF;
MPRINT(LOG_REPORT):   INPUT;
MPRINT(LOG_REPORT):   PUTLOG _INFILE_;
MPRINT(LOG_REPORT):   RUN;

NOTE: The infile FILEREF is:
      Filename=C:\Sample Program.log,
      RECFM=V,LRECL=32767,File Size (bytes)=1357,
      Last Modified=15Apr2021:21:23:32,
      Create Time=01Mar2021:22:30:03

NOTE: PROCEDURE PRINTTO used (Total process time):
      real time           0.00 seconds
      cpu time            0.00 seconds

92
93         DATA CARS;
94             SET SASHELP.CARS;
95             IF ORIGIN EQ 'USA';
96             DISCOUNT = MSRP - INVOIC;
97         RUN;

NOTE: Variable INVOIC is uninitialized.
NOTE: Missing values were generated as a result of performing an operation on missing values.
      Each place is given by: (Number of times) at (Line):(Column).
      147 at 96:21
NOTE: There were 428 observations read from the data set SASHELP.CARS.
NOTE: The data set WORK.CARS has 147 observations and 17 variables.
NOTE: DATA statement used (Total process time):
      real time           0.02 seconds
      cpu time            0.03 seconds

98
99         PROC PRINT DATA = CAR;
ERROR: File WORK.CAR.DATA does not exist.
100            TITLQ "CAR DISCOUNTS";
               _____
               14
WARNING 14-169: Assuming the symbol TITLE was misspelled as TITLQ.

101        RUN;

NOTE: The SAS System stopped processing this step because of errors.
NOTE: PROCEDURE PRINT used (Total process time):
      real time           0.01 seconds
      cpu time            0.00 seconds

102
103        PROC PRINTTO LOG = LOG;
104        RUN;
NOTE: 44 records were read from the infile FILEREF.
      The minimum record length was 0.
      The maximum record length was 93.
NOTE: DATA statement used (Total process time):
      real time           0.01 seconds
      cpu time            0.01 seconds

MPRINT(LOG_REPORT):   DATA _NULL_;
MPRINT(LOG_REPORT):   INFILE FILEREF END = END MISSOVER PAD;
MPRINT(LOG_REPORT):   INPUT LINE $250.;
MPRINT(LOG_REPORT):   IF UPCASE(COMPRESS(SUBSTR(LINE,1,6))) = "ERROR:" THEN ERROR + 1;
MPRINT(LOG_REPORT):   ELSE IF UPCASE(COMPRESS(SUBSTR(LINE,1,8))) = "WARNING:" THEN WARNING + 1;
MPRINT(LOG_REPORT):   ELSE DO;
MPRINT(LOG_REPORT):   UNINIT_I = INDEX(UPCASE(LINE),'UNINITIALIZED');
MPRINT(LOG_REPORT):   IF UNINIT_I THEN UNINIT + 1;
MPRINT(LOG_REPORT):   END;
MPRINT(LOG_REPORT):   CALL SYMPUTX('ERROR', ERROR);
MPRINT(LOG_REPORT):   CALL SYMPUTX('WARNING', WARNING);
MPRINT(LOG_REPORT):   CALL SYMPUTX('UNINIT', UNINIT);
MPRINT(LOG_REPORT):   RUN;

NOTE: The infile FILEREF is:
      Filename=C:\sample program.log,
      RECFM=V,LRECL=32767,File Size (bytes)=1357,
      Last Modified=15Apr2021:21:23:32,
      Create Time=01Mar2021:22:30:03

NOTE: 44 records were read from the infile FILEREF.
      The minimum record length was 0.
      The maximum record length was 93.
NOTE: DATA statement used (Total process time):
      real time           0.00 seconds
      cpu time            0.01 seconds

**************************************************************
* GENERAL SAS ALERTS: Determine cause of non-zero instances. *
**************************************************************
# OF ERRORS                  = 1
# OF WARNINGS                = 0
# OF UNINITIALIZED VARIABLES = 1NHANCING THE LOG REPORT WITH ADDITIONAL TERMS

Enhancing the Log Report Macro for Your Specific Needs

Anything appearing in the Log can be identified and added to the Log Report Macro. For example, the Log Report Macro can identify how many observations are read in from a data set and how many observations are kept. The following program reads the CARS dataset from the SASHELP library and keeps cars originating in the USA.

 	DATA CARS;
         SET SASHELP.CARS;
         IF ORIGIN EQ 'USA’;
	RUN;

Adding Functionality to The Log Report Macro

Because anything the appears in the Log can be identified the Log Report can be enhanced to display more than instances of ERRORs, WARNINGs, and NOTEs.

Identify and Print Data Set Observations

The PROC SQL SELECTs the total number of observations FROM a specified data set and assigns totals INTO macro variables. %PUT statements write messages to the SAS Log.

PROC SQL NOPRINT;
        SELECT COUNT(*)
        INTO :COUNT_CARS
        FROM SASHELP.CARS;
    QUIT;

    PROC SQL NOPRINT;
        SELECT COUNT(*)
        INTO :COUNT_SAVINGS
        FROM WORK.CARS;
    QUIT;

   %PUT **********************************************************;
   %PUT * FLOW OF DATA IN THE PROGRAM.                           *;
   %PUT **********************************************************;
   %PUT # of cars in SASHELP.CARS  = %CMPRES(&COUNT_CARS);
   %PUT # OF USA cars in WORK.CARS = %CMPRES(&COUNT_SAVINGS);
   %PUT **********************************************************;

Results of the Enhanced Log Report Macro Run

The following log shows the program run:

SELECTs total number of observations FROM specified data sets and assigns totals INTO macro variables.
Writes key word totals to the Log Report using %PUT statements.

Note: %PUT statements don’t appear in the Log.

MPRINT(LOG_REPORT):   PROC SQL NOPRINT;
MPRINT(LOG_REPORT):   SELECT COUNT(*) INTO :COUNT_CARS FROM SASHELP.CARS;
MPRINT(LOG_REPORT):   QUIT;
NOTE: PROCEDURE SQL used (Total process time):
      real time           0.01 seconds
      cpu time            0.01 seconds

MPRINT(LOG_REPORT):   PROC SQL NOPRINT;
MPRINT(LOG_REPORT):   SELECT COUNT(*) INTO :COUNT_SAVINGS FROM WORK.CARS;
MPRINT(LOG_REPORT):   QUIT;
NOTE: PROCEDURE SQL used (Total process time):
      real time           0.00 seconds
      cpu time            0.01 seconds

**************************************************************
* GENERAL SAS ALERTS: Determine cause of non-zero instances. *
**************************************************************
# OF ERRORS                  = 1
# OF WARNINGS                = 0
# OF UNINITIALIZED VARIABLES = 1
**************************************************************
* PROGRAM FLOW OF DATA IN THE PROGRAM: Obs before and after. *
**************************************************************
# OF CARS IN SASHELP.CARS  = 428
# OF USA CARS IN WORK.CARS = 147

CONCLUSION

There are many ways to ensure that programs run properly. The Log Summary is a great way to identify ERRORs and WARNINGs but not NOTEs indicative of problems. A Log Report, in addition to identifying ERRORs and WARNINGs, identifies specific kinds of NOTEs indicative of problems with the program run. The Log Report can be enhanced to identify anything the appears in the Log Summary.

A Log Report is especially helpful when running programs that generate thousands of lines in the Log that are time intensive to review manually. With the Log Report you can focus on correcting any problems with your program and producing the results you want.

References

SAS® 9.4 and SAS® Viya® 3.5 Programming Documentation. Available at https://documentation.sas.com/?cdcId=pgmsascdc&cdcVersion=9.4_3.5&docsetId=pgmsashome&docsetTarget=h...

Knapp, Peter. 2020. “Log Reviewing Made Easy” Proceedings of the Southeast SAS User Group 2020 Conference, Savannah, Georgia. Available at https://sesug.org/proceedings/sesug_2020_final_papers/Know_Your_SAS__Advanced_Techniques/SESUG2020_P...

Acknowledgements

I would like to thank my colleague Girish Narayandas who adapted and improved the Log Report Macro I originally wrote to work with SAS Enterprise Guide.

CONTACT INFORMATION

Your comments and questions are valued and encouraged. Contact the author at:
Peter Knapp
U.S. Department of Commerce
202-482-1359
Peter.Knapp@trade.gov

gabonzo · ‎05-20-2021

Would it be possible to link the complete code of the log-checking macro here? Thanks!

wreeves · ‎05-26-2021

Hi @gabonzo,

Peter presented this topic as an Ask the Expert webinar earlier this year and you can find a link to his code and his condensed code in this is post to the Ask the Expert Community: https://communities.sas.com/t5/Ask-the-Expert/Why-Is-the-Log-Report-a-Programmer-s-Best-Friend-Q-amp... (See the last question in the Q&A section.)

Thanks!

TimWright22 · ‎06-01-2021

Is it possible to write the code (not log) to the pdf with the output. I want to create sample code with visualization in the same file

jbilenas · ‎06-03-2021

Hello Tim,

Interesting question. I may have an answer which I was testing. I typically use ODS EXCEL where I dump output in tabs so I decided to check if I can dump code to the last tab. It worked but may need more work.

SAS can read SAS code. So why not put this macro at the top of the code before your ODS PDF code. Here is the code where I am writing the code to my ODS EXCEL. I was concerned that I could not read the SAS code while running the SAS code in batch on Linux, but did work. It may not work with SAS/EG or SAS STUDIO.

&LET code="boosting.sas";  /* if running SAS/EG include full path of the code */

%MACRO code;
OPTIONS NODATE NONUMBER CENTER;

DATA _NULL_;
  INFILE &CODE.
         LENGTH=LINELEN
         LRECL=200;
  INPUT @;
  VARLEN=LINELEN;
  INPUR @1 full_line $VARYING200. VARLEN;
  FILE PRINT;
  PUT full_line;
RUN;
%MEND code;

Call the macro at the end of your code, before you close the PDF or EXCEL output.

I still have some issues with my output run:

The indents to the code were not included. The full_line variable which reads each line of code up to line length of 200, based on the macro, removes the indents.
In EXCEL, the full code is listed but I had to remove the borders in excel.
The output was in SAS MONOSPACE so I replaced it with COURIER NEW

Give it a try. In PDF you may not want to include long code lines. Reduce LRECL and $VARYINGw.

Thanks for the question,

Jonas V. Bilenas

https://jonasbilenascom.wpcomstaging.com/

jonas_bilenas · ‎06-04-2021

Hello Tim,

I made some changes to the code I sent yesterday.

Include indents by using a $CHARw. FORMAT in the PUT statement.
Changed option CENTER to NOCENTER.
Using a PAD option in the INFILE statement (will add extra spaces to the line up to, in this code, 130).
I also added initial first code OPTIONS for sending to EXCEL output. You may not want to include such a large PS if dumping to PDF. Code LS could be larger or smaller. PS could be bigger for EXCEL output.
- LS=130 PS=999

&LET code="boosting.sas"; /* if running SAS/EG include full path of the code */
%MACRO code;
OPTIONS NODATE NONUMBER NOCENTER ;
DATA _NULL_;
  INFILE &CODE. LENGTH=LINELEN LRECL=130 pad;
INPUT @;
VARLEN=LINELEN;
INPUT @1 full_line $VARYING130. VARLEN;
FILE PRINT;
PUT full_line $CHAR130.;
RUN;
%MEND code;

I still need modification of the Excel output; remove grid lines, change font to Courier New, and bold the code text. Need to see if there are ODS EXCEL options to have that done automatically.

Note if using SAS/EG or SAS STUDIO, I am not sure if the code can read the code while running the code. If so you may need to make a copy of the code and run the macro on that code.

Again Tim, thanks for the question. It came in handy for me, hopefully for you as well.

Jonas
