Some books are instantly recognizable from their opening line. One of the most famous of these lines is “Call me Ishmael,” which appears at the start of the Herman Melville classic Moby-Dick. This complex novel is based around the obsessive search for Moby Dick, the great white whale which took the leg of Captain Ahab of the whaler Pequod. Melville served on whaling ships and the book contains lengthy descriptions of the process of hunting whales. During the mid-19th century the New England whaling industry was a major force in the American economy until its eventual decline until today when, for conservation reasons, all commercial whaling is banned in US waters and these magnificent creatures are allowed to live in relative peace and security.
In this edition of Free Data Friday, we will be looking at data from whalinghistory.org to see what we can learn about the rise and fall of this once mighty industry and in the process learn how to identify and handle outliers in our data.
The data is available for download from https://whalinghistory.org/ which is a collaborative project between Mystic Seaport Museum and New Bedford Waling Museum – you can download a zip file containing a number of tab delimited files. I have chosen to use the file containing details of voyages.
Firstly, I used PROC Import to convert the data into a SAS file. I then created a summary table with fewer variables and limited it to records with a voyage rank equal to one. This was necessary to avoid double counting as some voyages have multiple records with the voyagerank variable indicating the record number.
filename reffile '/home/chris52brooks/Whaling/voyages_20211020.txt'; proc import datafile=reffile dbms=dlm replace out=voyages; delimiter='09'x; getnames=yes; guessingrows=3000; RUN; proc sql; create table summary as select voyageid, vessel, vesselid, sperm, oil, yearin, yearout, returncode from voyages where voyagerank=1 ; quit;

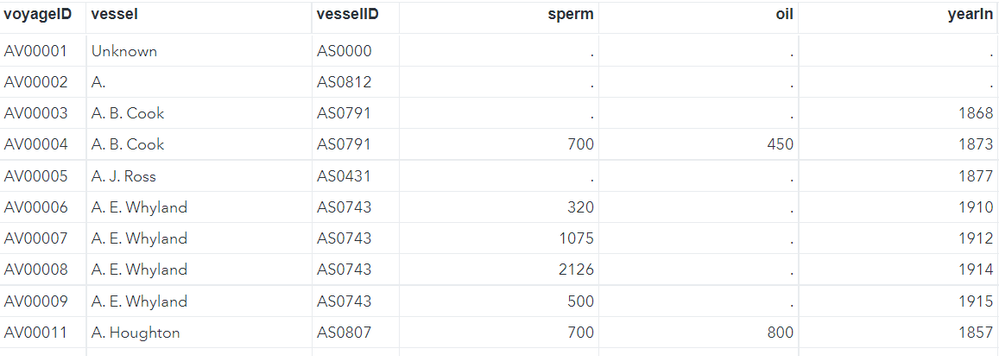

This gave me a file looking like this:
I first ran a simple PROC SQL statement to create annualised totals for a couple of the variables and then decided to use the values for barrels of oil landed to further analyse my data.
proc sql; create table annuals as select distinct yearin, sum(sperm) as totalsperm, sum(oil) as totaloil from summary group by yearin; quit;

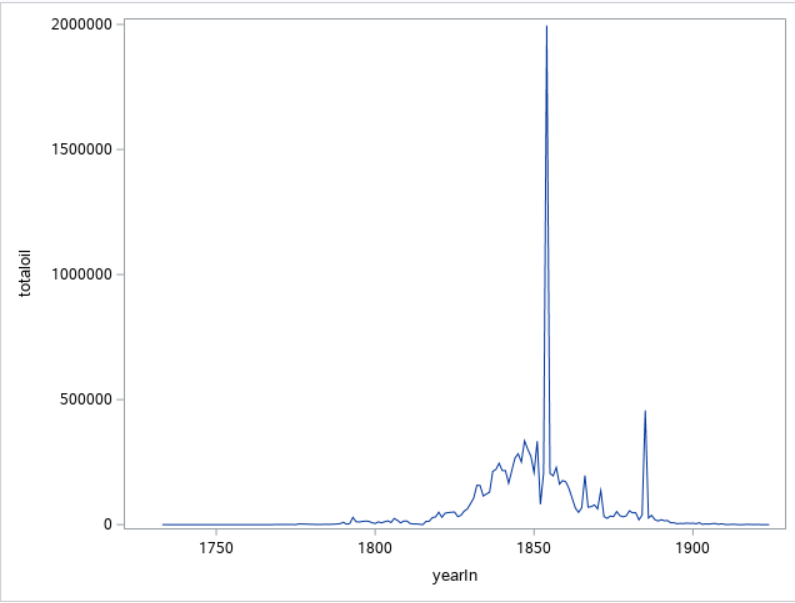

I could now run a basic PROC SGPlot to get some sense of what the data looked like. I chose to use total oil landed as my metric.
proc sgplot data=annuals; series x=yearin y=totaloil; run;

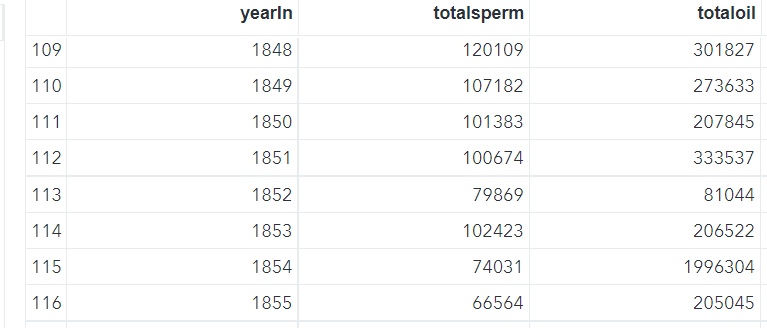

The massive spike in the 1850s rings immediate alarm bells here – when I look at the data in the annualised data set it is clear that I need to investigate this further.

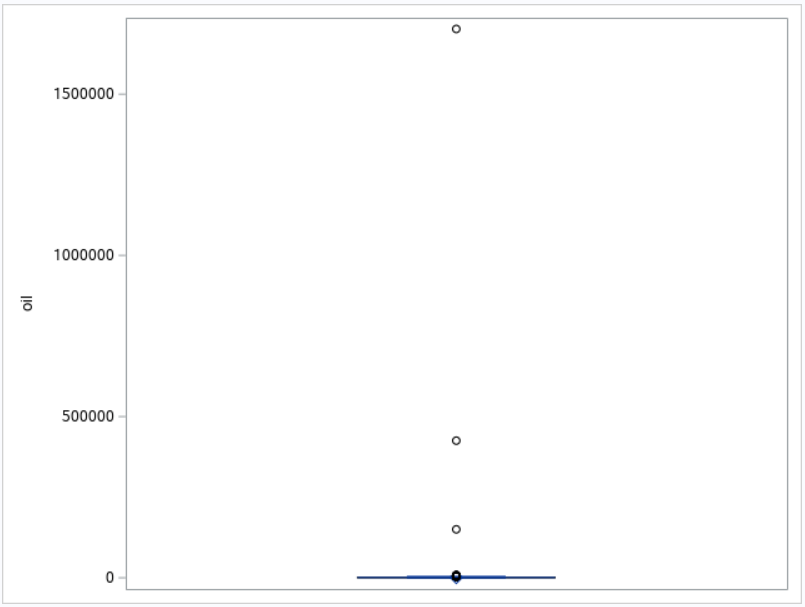

The value for total oil in 1854 is huge whereas the value for sperm is roughly equivalent to other, nearby years. In order to see what happened here in detail I decided to check for outliers i.e. unfeasibly large numbers appearing in the data. There are a number of ways of doing this but I decided to create a boxplot of the disaggregated data which highlights any extreme values. Here is the code I used – note that the ODS statement creates a data set holding the values of these outliers.
ods output sgplot=outliers; proc sgplot data=summary; vbox oil; run;

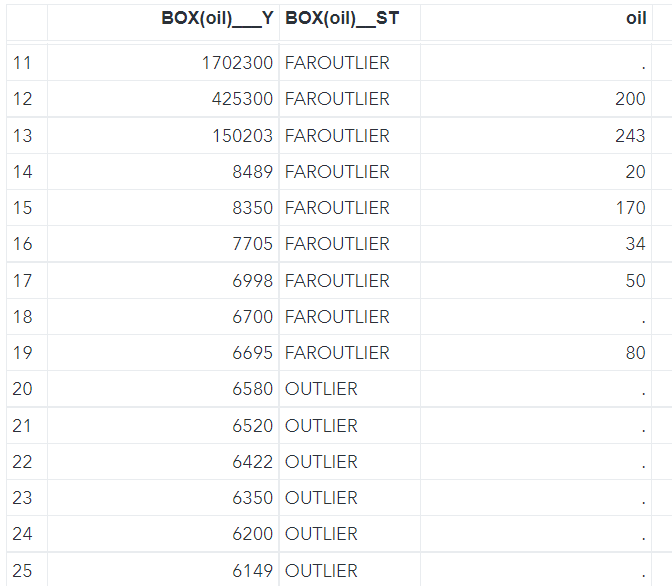

You can see from the output file that quite a few outliers were detected along with some ‘faroutliers’.
I now had to decide what to do with these values. I can understand why there may be some exceptional values in the data; voyages often lasted several years, and it is entirely possible that their numbers may be much larger than voyages which were cut short for some reason. Also size of ship, hunting grounds, whale migration patterns etc may all well have played a part in this variation. However, some of the faroutliers look simply too big to be realistic and I believe that they may be caused by either recording or transcribing errors. I decided therefore to remove them from the analysis by going back to the original imported voyages file and excluding them.
proc sql; create table cleanvoyages as select * from voyages where oil not in (select 'BOX(oil)___Y'n from outliers where 'BOX(oil)__ST'n="FAROUTLIER") ; quit; proc sql; create table cleansummary as select voyageid, vessel, vesselid, sperm, oil, yearout, yearin, returncode from cleanvoyages where voyagerank=1 ; quit;

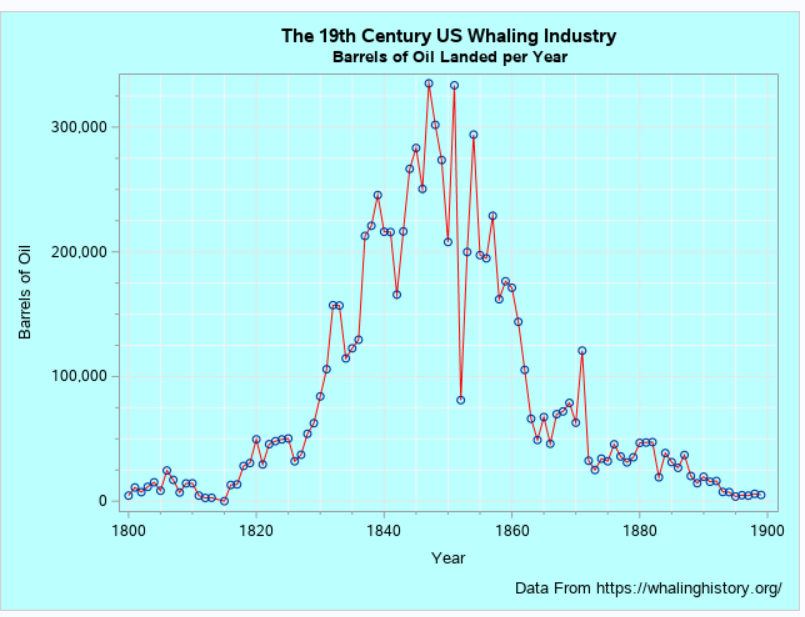

I then re-aggregated the data and generated my final series chart, adding in tooltips, colors and generally making the whole chart look better.
proc sql; create table cleanannuals as select distinct yearin, sum(sperm) as totalsperm, sum(oil) as totaloil from cleansummary group by yearin; quit; ods graphics / reset imagemap; proc sgplot data=cleanannuals(where=(yearin>1799 and yearin<1900)); title1 "The 19th Century US Whaling Industry"; title2 "Barrels of Oil Landed per Year"; footnote j=r "Data From https://whalinghistory.org/"; series x=yearin y=totaloil / tip=(yearin totaloil) tiplabel=("Year" "Barrels") tipformat=(auto comma12.) lineattrs=(color=red) markers; styleattrs backcolor=cxBBFFFF wallcolor=cxBBFFFF; xaxis grid label="Year" minorgrid minor minorcount=3; yaxis grid label="Barrels of Oil" minorgrid minor minorcount=3 valuesformat=comma12.; run;
This is much more realistic – the series is a little volatile as you would expect from an industry of this nature but there is a clear pattern of increasing amounts of oil landed until the 1850s followed by a decline until by the end of the century the industry seems to have been pretty much back where it started. Further investigation on the American Experience web site tells us that the discovery of petroleum in the US in 1859 led to the replacement of whale oil in the illuminant market and was a key factor in the industries decline.
Commercial whaling did continue of course and drove many large species to the brink of extinction but the moratorium on all but subsistence and scientific whaling has helped these beautiful animal recover although their position remains vulnerable.
Did you find something else interesting in this data? Share in the comments. I’m glad to answer any questions.
