The Many Uses of PROC GPROJECT: Clipping Data

Started ‎10-04-2024 by
Modified 2 weeks ago by
Views 1,604

In a previous article, I discussed how to use PROC GPROJECT to project and re-project spatial data. However, that’s not all that the GPROJECT procedure can be used for! In this article, I’ll discuss how you can use PROC GPROJECT to clip out a specific geographic extent from a larger dataset, allowing you to create precise maps that focus on a defined study area.



Why Clip Spatial Data?



Imagine you are working on a project focusing specifically on the northeast United States. You need to create a map highlighting this region, but you only have a map data set that covers the entire country. Rather than going back to the drawing board and trying to find a new map data set that focuses on just your study area, you can simply clip your existing map data set to a specific geographic extent.


Select any image to see a larger version.
Mobile users: To view the images, select the "Full" version at the bottom of the page.





Using the GPROJECT Procedure



When using the GPROJECT procedure to project spatial data, you use the PROJECT= option to specify what projection to use: Lambert, Albers, Gnomonic, or Proj4. However, there is a fifth option: none.

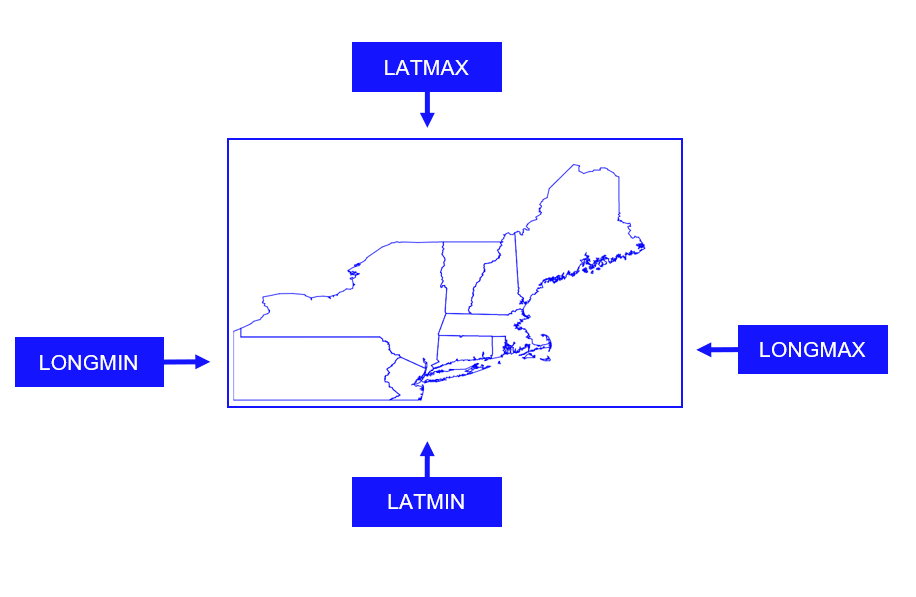

You can then use the LONGMIN=, LONGMAX=, LATMIN=, and LATMAX= options to specify the geographic extent that you want to clip. The latitude and longitude values that you provide here determine the rectangle that is clipped from the input data.



PROC GPROJECT DATA=input-mapdata-set



<OUT=output-map-data-set>



DEGREES



EASTLONG



PROJECT=none



LONGMIN=min-longitude



LONGMAX=max-longitude



LATMIN=min-latitude



LATMAX=max-latitude;



ID <id-variable(s)>;



RUN;

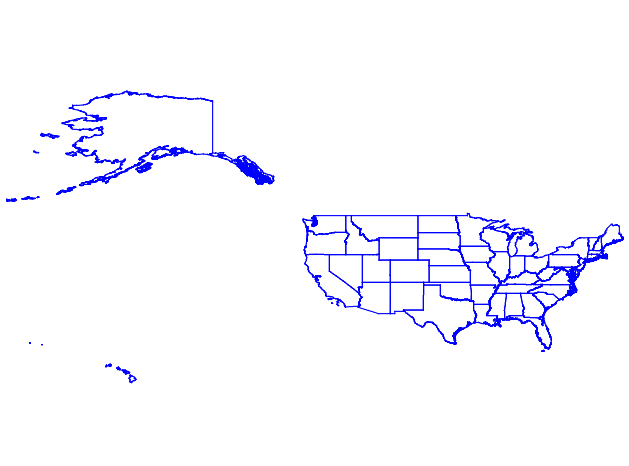

Let’s look at an example. Imagine that I have a map data set covering the entire United States. Using the SGMAP procedure, I could create a map that looks like this:


However, I need to create a map focused on just the northeastern region of the country. To do so, I’ll use the LONGMIN, LONGMAX, LATMIN, and LATMAX options to define the region that I want to clip. I’ll specify the latitude parallels that define the northern and southern bounds of my study area, and the longitude values (or meridians) that define the eastern and western bounds. Because my input data set is unprojected, I’ll refer to unprojected latitude and longitude values in the GPROJECT procedure.



proc gproject data=states
              out=NE_States
              degrees eastlong
              project=none
              longmin=-80
              longmax=-60
              latmin=40
              latmax=75;
   id StateCode;
run;



This will create a clipped map data set, where the northern boundary is 75 degrees latitude, the southern boundary is 40 degrees latitude, the eastern boundary is -80 degrees longitude, and the western boundary is -60 degrees longitude.


This new, clipped map data set can then be used to create more precise maps, focused just on this particular study area.



Conclusion



When creating a map or performing spatial analysis, your map data set may not always line up exactly with your study area. However, using the GPROJECT procedure, it’s easy to trim or clip a map dataset to a specific geographic extent.



Tip and Tricks



  • You can combine the LATMIN, LATMAX, LONGMIN, and LONGMAX with another PROJECT= option instead of NONE to project a map data set at the same time as clipping it.
  • If you’re clipping a data set that’s already projected, make sure to use the latitude and longitude values used by that particular projection.
