SAS Viya application access to Databricks using Service Principal (SIMBA Driver)

Started yesterday by
Modified yesterday by
Views 65

The SAS Viya platform facilitates connectivity to Databricks via the SAS/ACCESS Interface to Spark, which comes pre-packaged with the Simba Databricks JDBC driver.



While the SAS Viya platform supports various authentication methods—including standard credentials and Single Sign-On (SSO)—implementing Service Principal-based authentication requires a specific configuration. When using the Simba driver for this purpose, your connection string must include the OAuth2 OIDC Discovery Endpoint URL, the Service Principal ID, and the Service Principal Secret.



In this post, I discuss the database access from the SAS Compute Server and CAS to Databricks using an Azure Service Principal with the SIBMA JDBC driver.



SAS Viya applications can leverage an Azure Service Principal for automated, secure connectivity to Databricks. To establish this connection, the Service Principal must first be registered in Microsoft Entra ID, then added to the appropriate Databricks Workspace user group. Finally, it requires explicit access privileges to the necessary Databricks catalogs, databases, schemas, and tables to ensure full end-to-end data integration.





Prerequisites:



The following Prerequisites must be met before a Service Principal can be used to connect and access the Databricks database from SAS Viya applications.



  • An Azure Service Principal configured with the Databricks API permission and a Secret.
  • The Service Principal was added to the Databricks Workspace user group.
  • The Service Principal has read-write access privileges to Databricks Catalog/database/tables.
  • SAS Viya applications (Compute and CAS) are configured with the JRE options to support the Apache Arrow library.





An Azure Service Principal with the Databricks API permission and a Secret

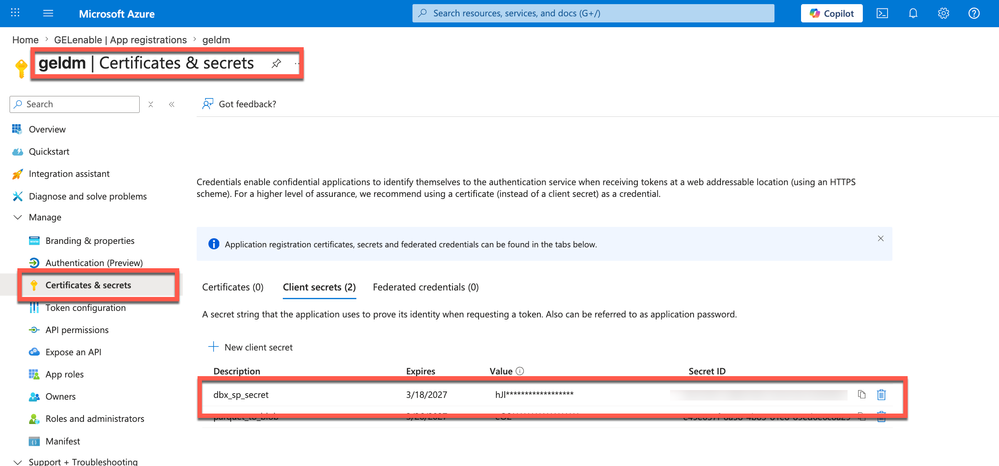

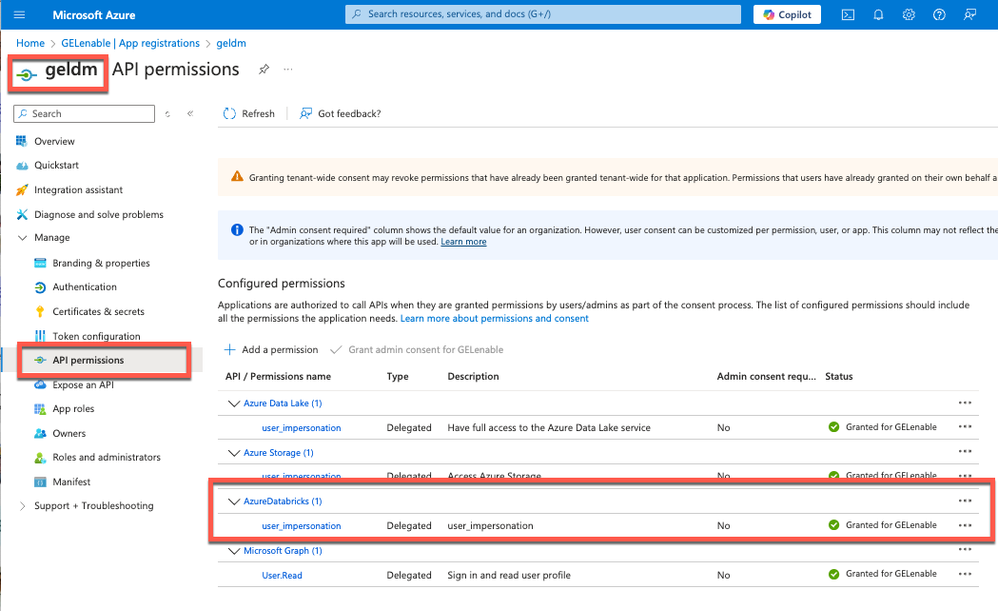

The following pics describe a service principal configured with Databricks API Permission and a Secret.




Select any image to see a larger version.
Mobile users: To view the images, select the "Full" version at the bottom of the page.








Service Principal at the Databricks Workspace user group

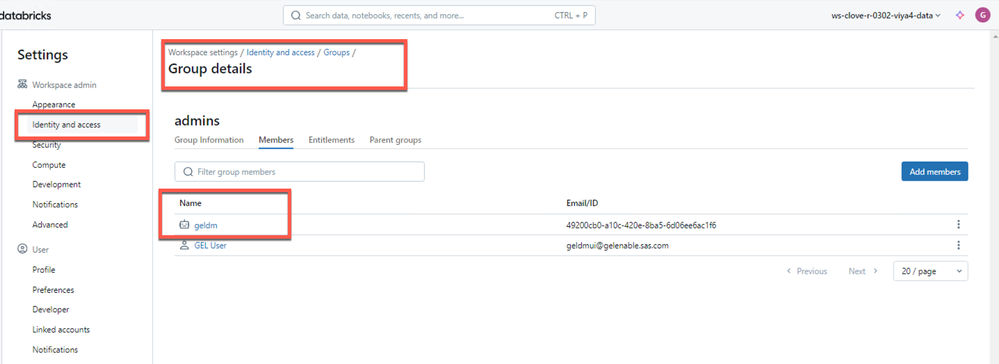

The following pics describe the service principal that is part of the Databricks Workspace user group.








Read-write access privileges on Databricks Catalog/database/tables for the Service Principal

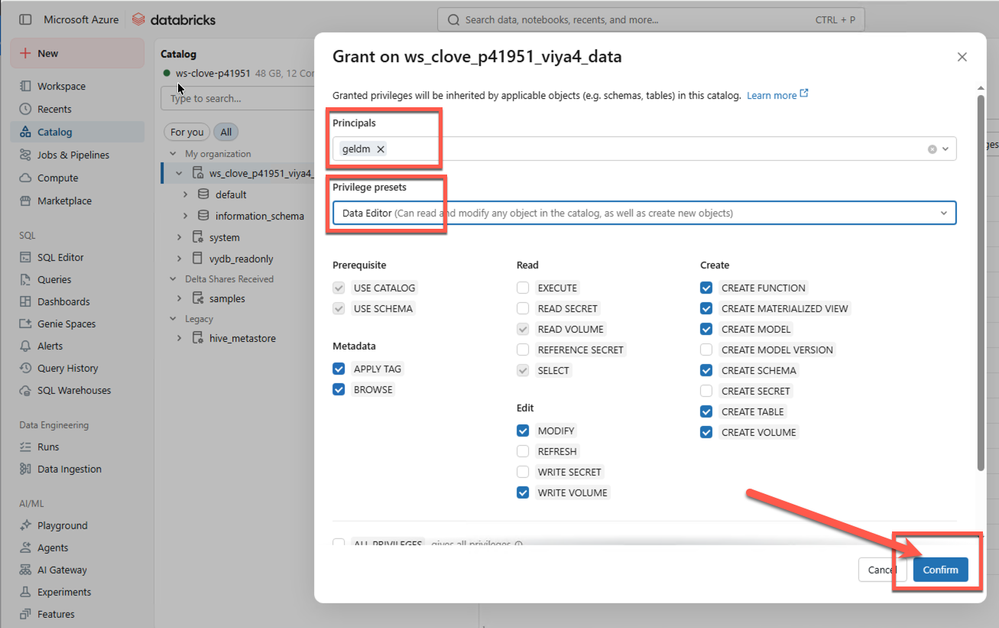

The following pics describe the read-write access privileges on the Databricks catalog and database tables for the service principal.








SAS Viya applications JRE option configuration to support the Apache Arrow library



The Simba Databricks JDBC Data Connector uses the Apache Arrow library to efficiently transfer result sets from Databricks to the client. The Arrow library requires the following JRE option for the SAS Compute Server, SAS batch Server, and CAS.

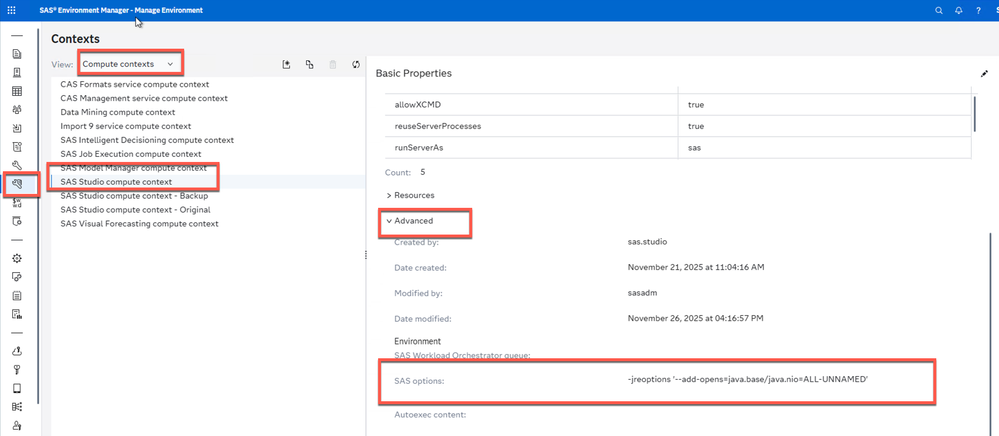

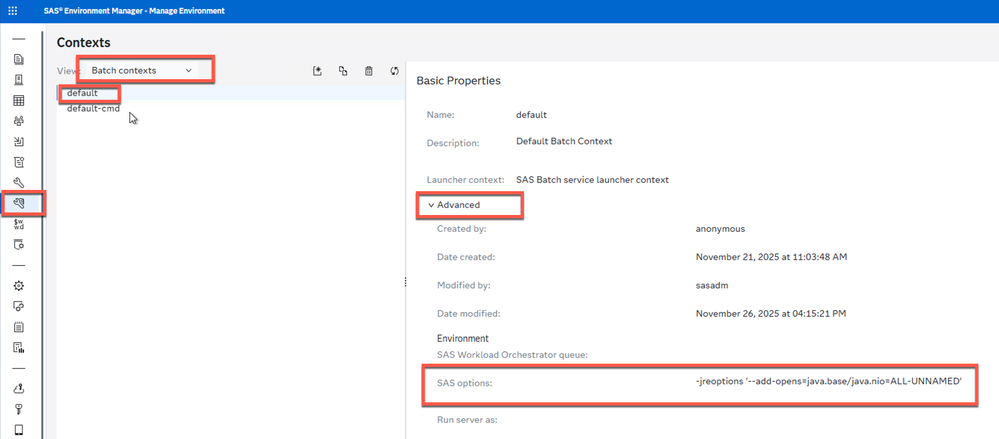

The JRE option for the SAS Studio compute context and the SAS batch server context JREOPTION --add-opens=java.base/java.nio=ALL-UNNAMED.

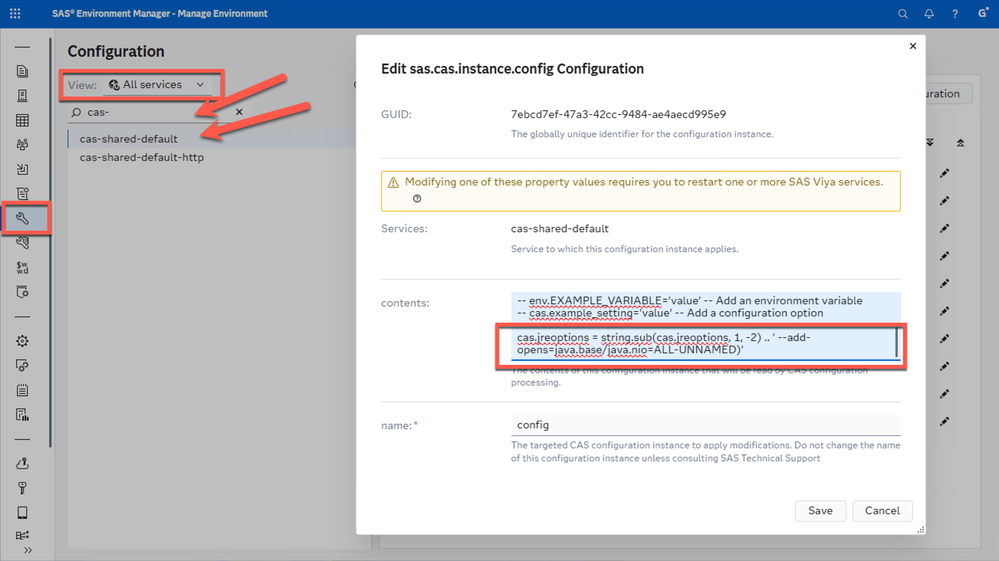

The JRE option for CAS compute context under sas.cas.instance config: config cas.jreoptions = string.sub(cas.jreoptions, 1, -2) .. ' –add opens=java.base/java.nio=ALL-UNNAMED)'.








Service-Principal-Based access from SAS Compute Server to Azure DataBricks (SIMBA Driver)



With Azure Databricks Workspace, SPARK Cluster, database table, the JDBC driver in place, and pre-requisites met, you can connect and access a Databricks database table from the SAS compute server.



The following code describes the Service-Principal-based access from SAS Compute Server to the Azure Databricks database. Notice, there is no user ID and password in the LIBNAME statement. The properties option contains the Service principal ID, Service Principal Secret, and Oauth2 OIDC Discovery Endpoint URL with AuthMech=11 and Auth_Flow=1.



To access the Unity catalog, the ConnCatalog=; parameter is used with the properties option.



Code:



%let MYDBRICKS=adb-7405619489303584.4.azuredatabricks.net;
%let MYHTTPPATH=sql/protocolv1/o/7405619489303584/0511-195411-cbz969s0;
%let MYSCHEMA=default;
%let MYCATALOG=ws_clove_p41951_viya4_data;

%let MYDRIVERCLASS=com.simba.databricks.jdbc.Driver;

%let MYTNTID=XXXXXXXXXXXX-fa07ff196d;
%let MYCLNT_ID=XXXXXXXXXXX-8ba5-6d06ee6ac1f6;
/* AppReg client secret */
%let MYCLNT_SECRET=XXXXXXXXXXXXXXXB12Tc1.;

libname dbricks spark platform=databricks
driverClass="&MYDRIVERCLASS"
server="&MYDBRICKS"
database="&MYSCHEMA"
port=443
httppath="&MYHTTPPATH"
properties="ConnCatalog=&MYCATALOG;AuthMech=11;Auth_Flow=1;OAuth2ClientId=&MYCLNT_ID;OAuth2Secret=&MYCLNT_SECRET;OIDCDiscoveryEndpoint=https://login.microsoftonline.com/&MYTNTID/v2.0/.well-known/openid-configuration;EnableOIDCDiscovery=true;"
bulkload=no
character_multiplier=1
;

Proc SQL outobs=10;
select * from dbricks.iot_device ;
run;quit;

data dbricks.prdsal2_sas3;
set sashelp.prdsal2 ;
run;



Log:



.........
.....
93   libname dbricks spark platform=databricks
94   driverClass="&MYDRIVERCLASS"
95   server="&MYDBRICKS"
96   database="&MYSCHEMA"
97   port=443
98   httppath="&MYHTTPPATH"
99   properties="ConnCatalog=&MYCATALOG;AuthMech=11;Auth_Flow=1;OAuth2ClientId=&MYCLNT_ID;OAuth2Secret=&MYCLNT_SECRET;
99 ! OIDCDiscoveryEndpoint=https://login.microsoftonline.com/&MYTNTID/v2.0/.well-known/openid-configuration;EnableOIDCDiscovery=true
99 ! ;"
NOTE: The quoted string currently being processed has become more than 262 bytes long.  You might have unbalanced quotation marks.
100  bulkload=no
101  character_multiplier=1
102  ;
NOTE: Libref DBRICKS was successfully assigned as follows:
      Engine:        SPARK
103
104  Proc SQL outobs=10;
105  select * from dbricks.iot_device ;
WARNING: Statement terminated early due to OUTOBS=10 option.
106  run;quit;
NOTE: PROC SQL statements are executed immediately; The RUN statement has no effect.
NOTE: The PROCEDURE SQL printed page 1.
NOTE: PROCEDURE SQL used (Total process time):
      real time           17.86 seconds
      cpu time            0.10 seconds

107
111
112  data dbricks.prdsal2_sas3;
113  set sashelp.prdsal2 ;
114  run;
NOTE: SAS variable labels, formats, and lengths are not written to DBMS tables.
NOTE: There were 23040 observations read from the data set SASHELP.PRDSAL2.
NOTE: The data set DBRICKS.PRDSAL2_SAS3 has 23040 observations and 11 variables.
NOTE: DATA statement used (Total process time):
      real time           1:15.23
      cpu time            10.54 seconds
....
...........





Service-Principal-Based access from CAS to Azure DataBricks (SIMBA Driver)



With Azure Databricks Workspace, SPARK Cluster, database table, the JDBC driver in place, and pre-requisites met, you can connect and load/save a CAS table from the Azure Databricks table.



The Service Principal (aka Entra ID application) must have an API permission for the Azure DataBricks. The Databricks Workspace and catalogs are configured with the access permissions for the service principal.



The following code describes the Service-Principal-based access from CAS to the Azure Databricks database. Notice, there is no user ID and password in the CASLIB statement. The properties option contains the Service principal ID, Service Principal Secret, and Oauth2 OIDC Discovery Endpoint URL with AuthMech=11 and Auth_Flow=1.



To access the Unity catalog, the ConnCatalog=; parameter is used with the properties option.



Code:



%let MYDBRICKS=adb-7405619489303584.4.azuredatabricks.net;
%let MYHTTPPATH=sql/protocolv1/o/7405619489303584/0511-195411-cbz969s0;
%let MYSCHEMA=default;
%let MYCATALOG=ws_clove_p41951_viya4_data;

%let MYDRIVERCLASS=com.simba.databricks.jdbc.Driver;

%let MYTNTID=XXXXXXXXXXXX-fa07ff196d;
%let MYCLNT_ID=XXXXXXXXXXX-8ba5-6d06ee6ac1f6;
/* AppReg client secret */
%let MYCLNT_SECRET=XXXXXXXXXXXXXXXB12Tc1.;


CAS mySession  SESSOPTS=( CASLIB=casuser TIMEOUT=99 LOCALE="en_US");

/* Service Principal based CASLIB  to Databricks */
caslib Cdtspkcaslib datasource=(srctype='spark',
              platform=databricks,
              schema="&MYSCHEMA",
              server="&MYDBRICKS",
              httpPath="&MYHTTPPATH",
              driverclass="&MYDRIVERCLASS",
              bulkload=no,
              port=443,
              useSsl=yes,
              charMultiplier=1,
              dbmaxText=50,    properties="ConnCatalog=&MYCATALOG;AuthMech=11;Auth_Flow=1;OAuth2ClientId=&MYCLNT_ID;OAuth2Secret=&MYCLNT_SECRET;OIDCDiscoveryEndpoint=https://login.microsoftonline.com/&MYTNTID/v2.0/.well-known/openid-configuration;EnableOIDCDiscovery=true;"
            );

/* Load CAS from DataBricks database table */
proc casutil outcaslib="Cdtspkcaslib" incaslib="Cdtspkcaslib" ;
    load casdata="iot_device" casout="iot_device" replace;
    list tables;
quit;

/* Save CAS data to DataBricks database */
proc casutil outcaslib="Cdtspkcaslib" incaslib="Cdtspkcaslib";
load data=sashelp.cars casout="cars" replace;
save casdata="cars" casout="cars_sas"  replace;
list files;
quit;

CAS mySession  TERMINATE;



Log:



95   /* Service Principal based CASLIB  to Databricks */
96   caslib Cdtspkcaslib datasource=(srctype='spark',
97                 platform=databricks,
98                 schema="&MYSCHEMA",
99                 server="&MYDBRICKS",
100                httpPath="&MYHTTPPATH",
101                driverclass="&MYDRIVERCLASS",
102                bulkload=no,
103                port=443,
104                useSsl=yes,
105                charMultiplier=1,
106                dbmaxText=50,
107                properties="ConnCatalog=&MYCATALOG;AuthMech=11;Auth_Flow=1;OAuth2ClientId=&MYCLNT_ID;OAuth2Secret=&MYCLNT_SECRET;
107! OIDCDiscoveryEndpoint=https://login.microsoftonline.com/&MYTNTID/v2.0/.well-known/openid-configuration;EnableOIDCDiscovery=true
107! ;"
NOTE: The quoted string currently being processed has become more than 262 bytes long.  You might have unbalanced quotation marks.
108              );
NOTE: 'CDTSPKCASLIB' is now the active caslib.
NOTE: Cloud Analytic Services added the caslib 'CDTSPKCASLIB'.
NOTE: Action to ADD caslib CDTSPKCASLIB completed for session MYSESSION.
109


114  /* Load CAS from DataBricks database table */
115  proc casutil outcaslib="Cdtspkcaslib" incaslib="Cdtspkcaslib" ;
NOTE: The UUID 'c6570a39-a199-b64e-81ac-fb2e3148e45e' is connected using session MYSESSION.
116      load casdata="iot_device" casout="iot_device" replace;
NOTE: Performing serial LoadTable action using SAS Data Connector to Spark.
NOTE: Cloud Analytic Services made the external data from iot_device available as table IOT_DEVICE in caslib Cdtspkcaslib.
NOTE: The Cloud Analytic Services server processed the request in 7.784973 seconds.
117      list tables;
                                                         Caslib Information
Library                CDTSPKCASLIB
Source Type            spark
CharMultiplier         1
Session local          Yes
Active                 Yes
Personal               No
Hidden                 No
Transient              No
TableRedistUpPolicy    Not Specified
Schema                 default
HiveClass              com.simba.databricks.jdbc.Driver
BulkLoad               false
HttpPath               sql/protocolv1/o/7405619489303584/0511-195411-cbz969s0
UseSsl                 yes
Server                 adb-7405619489303584.4.azuredatabricks.net
Port                   443
DbmaxText              50
Platform               databricks
                                             Table Information for Caslib CDTSPKCASLIB

                   Number      Number  Indexed  NLS                                                             Promoted  Repeated
 Table Name       of Rows  of Columns  Columns  encoding  Created                    Last Modified                 Table     Table
 IOT_DEVICE        198164          15        0  utf-8     2026-05-12T14:57:11+00:00  2026-05-12T14:57:11+00:00  No        No
                                             Table Information for Caslib CDTSPKCASLIB

                                                                                                        Java
                               Source        Source                                                     Character       Multi
       Table Name      View    Name          Caslib          Compressed    Accessed                     Set              Part
       IOT_DEVICE  No          iot_device    CDTSPKCASLIB      No          2026-05-12T14:57:11+00:00    UTF8         No
                                             Table Information for Caslib CDTSPKCASLIB

                                                                               Table
                                                                               Redistribute Up
                                      Table Name  Creator                      Policy
                                      IOT_DEVICE  geldmui@gelenable.sas.com    Not Specified
NOTE: Cloud Analytic Services processed the combined requests in 0.010191 seconds.
118  quit;
NOTE: PROCEDURE CASUTIL used (Total process time):
      real time           7.83 seconds
      cpu time            0.06 seconds



119
120  /* Save CAS data to DataBricks database */
121  proc casutil outcaslib="Cdtspkcaslib" incaslib="Cdtspkcaslib";
NOTE: The UUID 'c6570a39-a199-b64e-81ac-fb2e3148e45e' is connected using session MYSESSION.
122  load data=sashelp.cars casout="cars" replace;
NOTE: The INCASLIB= option is ignored when using the DATA= option in the LOAD statement.
NOTE: SASHELP.CARS was successfully added to the "CDTSPKCASLIB" caslib as "CARS".
123  save casdata="cars" casout="cars_sas"  replace;
NOTE: Performing serial SaveTable action using SAS Data Connector to Spark.
NOTE: Cloud Analytic Services saved the file cars_sas in caslib CDTSPKCASLIB.
NOTE: The Cloud Analytic Services server processed the request in 6.079864 seconds.
124  list files;
                                                         Caslib Information
Library                CDTSPKCASLIB
Source Type            spark
CharMultiplier         1
Session local          Yes
Active                 Yes
Personal               No
Hidden                 No
Transient              No
TableRedistUpPolicy    Not Specified
Schema                 default
HiveClass              com.simba.databricks.jdbc.Driver
BulkLoad               false
HttpPath               sql/protocolv1/o/7405619489303584/0511-195411-cbz969s0
UseSsl                 yes
Server                 adb-7405619489303584.4.azuredatabricks.net
Port                   443
DbmaxText              50
Platform               databricks
                                                       CAS File Information

                                  Name            Catalog         Schema     Type     Description
                                  cars_sas        CDTSPKCASLIB    default    TABLE
                                  iot_device      CDTSPKCASLIB    default    TABLE
                                  prdsal2_sas3    CDTSPKCASLIB    default    TABLE
NOTE: Cloud Analytic Services processed the combined requests in 0.865737 seconds.
125  quit;
NOTE: PROCEDURE CASUTIL used (Total process time):
      real time           7.00 seconds
      cpu time            0.08 seconds

............
..............



Important Links:



SAS/ACCESS Interface to Spark

Spark Data Connector

Scenario: OIDC with Microsoft Entra ID (Azure Active Directory)

Troubleshooting Spark Connection Problems
