SAS Studio Flows: Adding Status Handling
As of the LTS 2025.09 release, you can use the status handling feature to send the flow status to a specified table after the flow is finished running. Note: Status handling is available only if your site licenses SAS Studio Engineer.

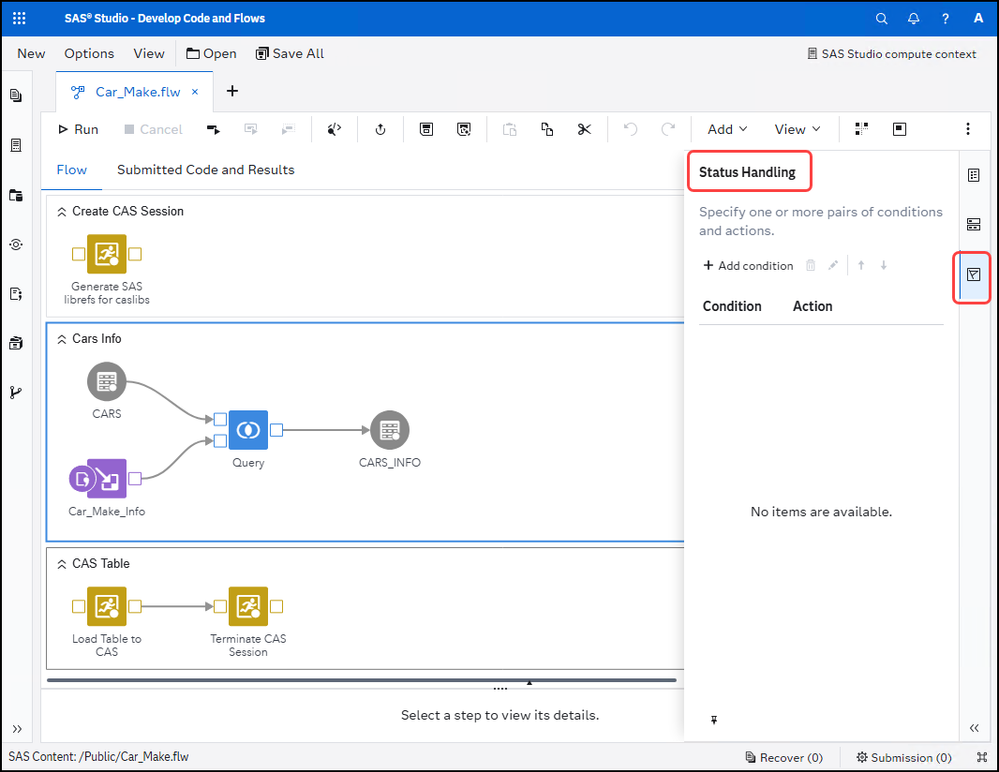

To add status handling to a SAS Studio flow, select
Select any image to see a larger version.
Mobile users: To view the images, select the "Full" version at the bottom of the page.

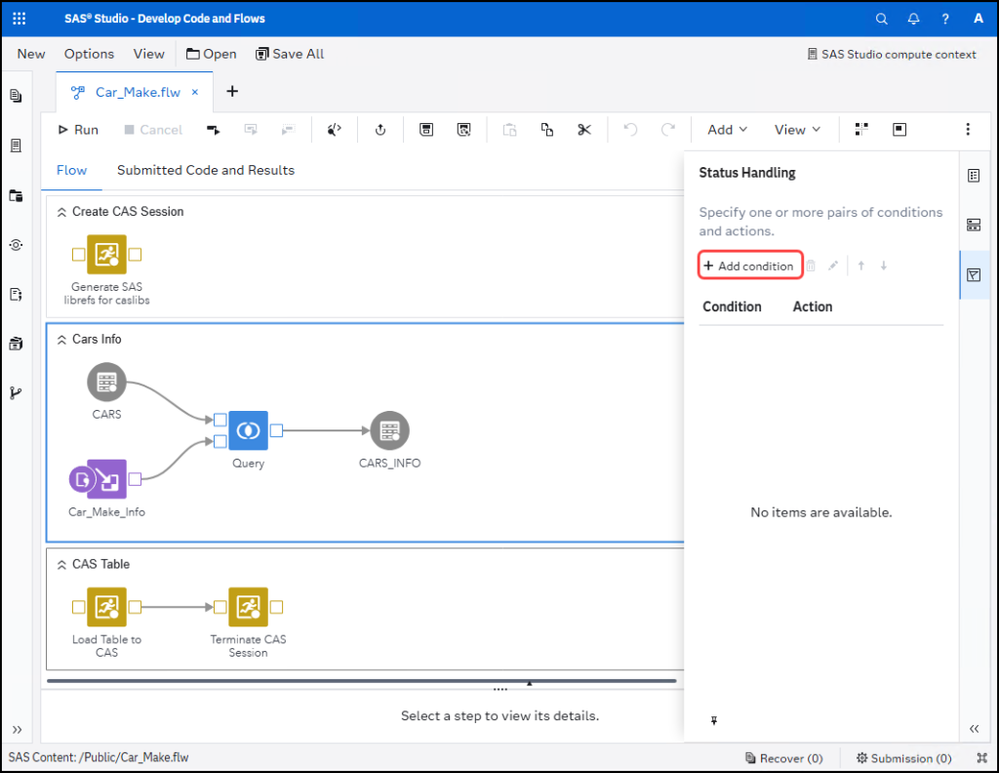

Click

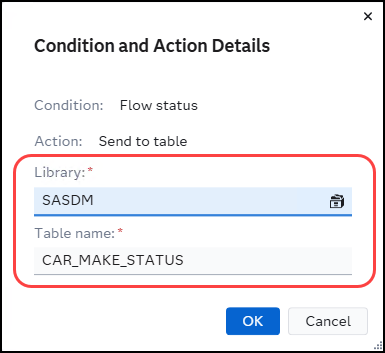

On the Condition and Action Details dialog, select the library and table name to which you want to write the flow status.
Note: The only condition is Flow status and the only action is Send to table.

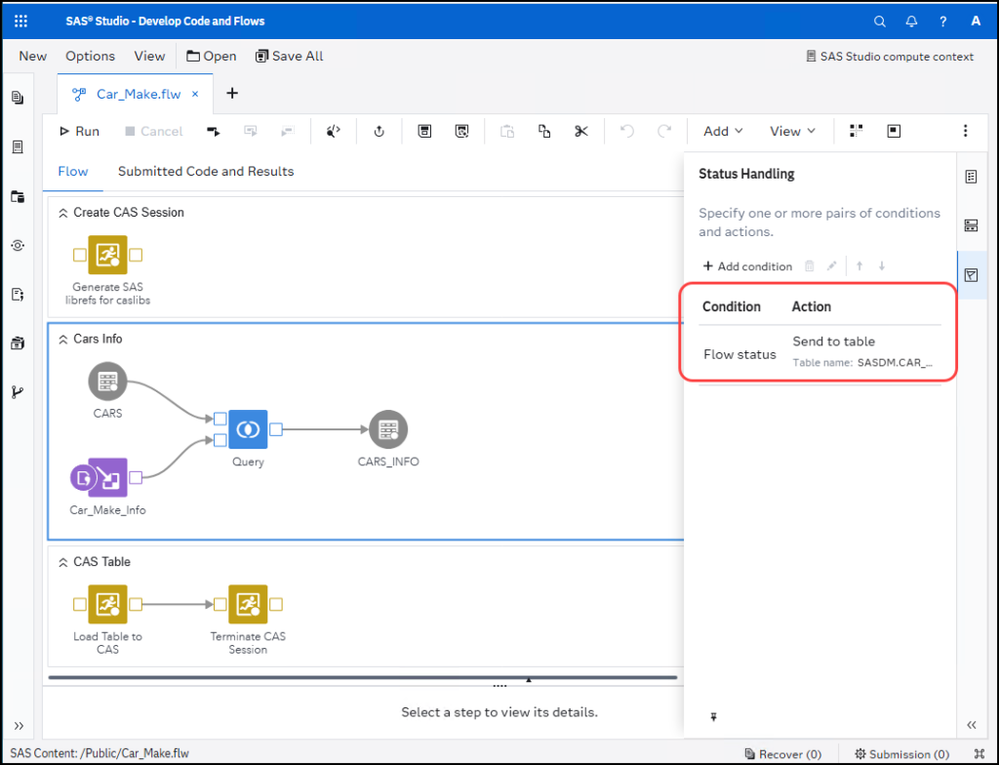

The condition and action are now part of the Status Handling properties for the flow.

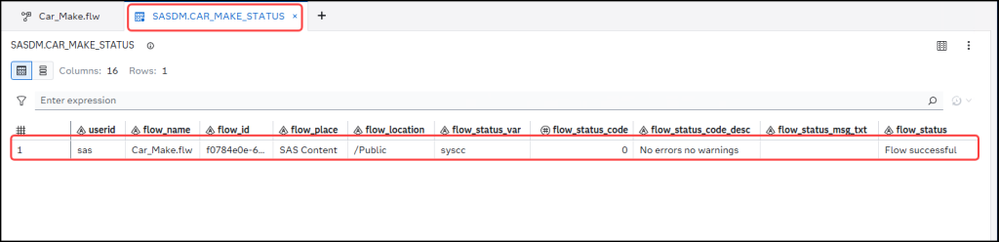

When this flow is executed, the status of the execution is written to the specified status table.
Other columns written to the status table that are not pictured are:
- flow_start_time
- flow_end_time
- flow_elapsed_time
- viya_release
- viya_version.
Note: The SYSCC automatic macro variable is evaluated at the end of the flow execution to determine the overall run status of the flow. A value of 0 indicates a successful execution. SYSCC is global in scope and reflects the highest severity of any issue that is encountered during the flow execution. In rare cases, the value of SYSCC can be 0 even when other diagnostic automatic variables, such as SYSERR, SYSFILRC, or SYSRC, are set to nonzero values for warnings or errors in a step or program statement.
If the flow is executed again, the status of that execution is appended to the specified status table.
Summary
You can write the status of an execution of a SAS Studio flow to a table. For more information, refer to the documentation on Adding Status Handling to a Flow.
