How to color leaves in the Tree Diagram of the Decision Tree node in SAS Model Studio by a statistic

Started ‎09-18-2020 by
Modified ‎05-07-2019 by
Views 2,757

Question



97403_banner_Asked&Answered_aqua.pngHow can I color the leaves of the tree in the Tree Diagram in the results of the Decision Tree node in Model Studio by node purity (probability of event) or correct classification proportion?

Answer

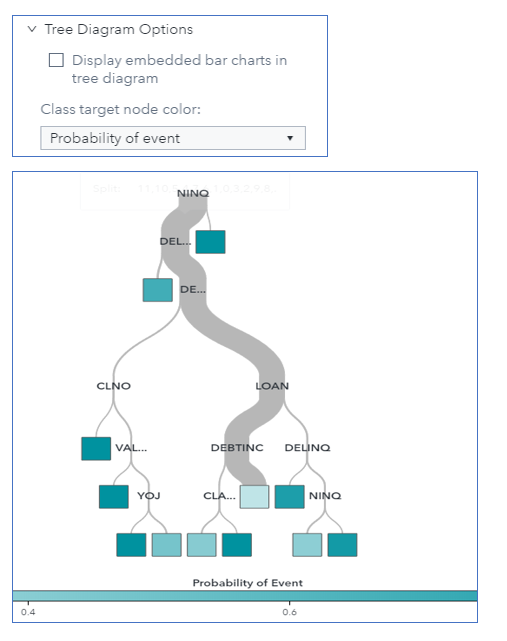

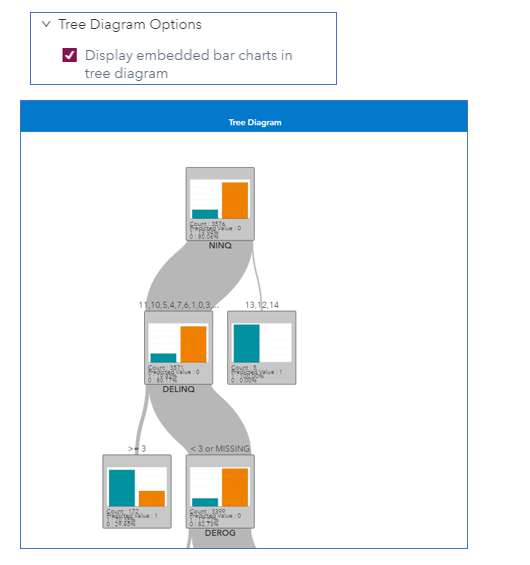

By default, for a class target, the leaves of the tree in the Tree Diagram display an embedded histogram of the target level percentages (first image).  To have the leaves instead colored by either the probability of event (purity) or the proportion correctly classified, you can un-check the property “Display embedded bar charts in tree diagram” under Tree Diagram Options in the Decision Tree node.  The leaves can then be colored by the selection in the “Class target node color” property as in the second image.
