Extreme Value Theory for Modern Risk Management Systems

Introduction

In many real-world domains such as finance, insurance, environmental science, engineering, and cybersecurity, the most severe risks arise not from average events but from extreme and rare occurrences. Financial crashes, catastrophic insurance losses, floods, heatwaves, and system failures are all examples of tail events that can have disproportionate impacts.

Traditional statistical models often focus on central tendencies (mean, variance) and fail to accurately capture the behavior of extreme observations. Extreme Value Theory (EVT) provides a principled mathematical framework for modeling and quantifying the tail behavior of probability distributions. EVT allows organizations to better understand, predict, and manage rare but high-impact risks. Note that SAS Risk Engine provides most of these statistical measures including EVT based measures. This article explores the fundamentals of EVT, key statistical metrics derived from EVT, and its practical utility in risk management.

Fundamentals of Extreme Value Theory

What is Extreme Value Theory?

For detailed information on several risk related statistical measures, SAS Risk Engine, risk-related action sets, and guidance on interpreting outputs, please refer to the following:

Intuitive Understanding of Statistics in

SAS Risk Engine

Using the SAS Risk Engine Interface

Programming with SAS Risk Engine

Extreme Value Theory is a branch of statistics that focuses on the stochastic behavior of extreme deviations from the median of probability distributions. Rather than modeling the entire dataset, EVT concentrates on the maximum or minimum values (the extremes).

The theory answers questions such as:

How large can financial losses become?
What is the probability of extreme market crashes?
How often can catastrophic floods occur?

.

Two Core EVT Modeling Approaches

EVT primarily relies on two frameworks: block maxima and peak over threshold

Block Maxima Method

Instead of analyzing all observations, the Block Maxima Method focuses only on the maximum value within fixed time blocks.

Steps:

Divide the data into equal-sized blocks (e.g., years, months, weeks).
From each block, take the maximum observation.
Fit these maxima to a probability distribution known as the
Generalized Extreme Value Distribution (GEV).

The theory shows that the distribution of block maxima converges to the GEV distribution, regardless of the original data distribution.

Simple Intuitive Example (Insurance)

Suppose an insurance company records the daily claim amounts over a period of ten years. Instead of analyzing all 3,650 daily observations, the analyst applies the Block Maxima approach from Extreme Value Theory by dividing the data into ten equal blocks, with each block representing one year. From each yearly block, the analyst extracts only the largest claim amount observed during that year, thereby creating a new dataset consisting of ten annual maximum claims. These yearly maxima can then be analyzed to understand the behavior of extreme insurance losses.

Example:

Year	Maximum Claim (USD)
2016	120,000
2017	250,000
2018	180,000
2019	310,000
2020	270,000
...	...

The analyst then models these yearly maximum claim amounts using the Generalized Extreme Value Distribution, a key distribution used in Extreme Value Theory for analyzing extreme observations. By fitting this distribution to the annual maxima, the insurer can estimate the likelihood and magnitude of rare but potentially severe claim events. This enables the company to answer important risk-management questions, such as what the expected largest claim might be over a 50-year period and what the probability is that a claim will exceed $1 million.

Note that the GEV distribution can be defined as:

Mathematical function for GEV

Select any image to see a larger version.
Mobile users: To view the images, select the "Full" version at the bottom of the page.

Where:

μ (location) – central tendency
σ (scale) – dispersion
ξ (shape) – tail behavior

The shape parameter determines tail heaviness:

ξ > 0 → heavy-tailed (Frechet)
ξ = 0 → light-tailed (Gumbel)
ξ < 0 → bounded tail (Weibull)

The biggest limitation of the block maxima method is data wastage. If you have 365 daily observations per year, the method keeps only 1 value (the maximum) and discards the rest. Because of this, another EVT approach called Peaks Over Threshold (POT) is often preferred.

Peaks Over Threshold (POT) Method

The Peaks Over Threshold (POT) Method is another important approach in Extreme Value Theory used to study extreme events. Instead of dividing the data into blocks and selecting only the maximum observation from each block, the POT method focuses on all observations that exceed a sufficiently high threshold value. In this approach, every value above the threshold is considered an extreme event and is included in the analysis. The excess amount above the threshold (called the exceedance) is then modeled using the Generalized Pareto Distribution (GPD).

By fitting the GPD to these exceedances, analysts can estimate the probability and magnitude of rare events, such as extremely large insurance claims, severe financial losses, or extreme environmental events. Because it uses multiple extreme observations instead of just one maximum per block, the POT method often makes more efficient use of the available data when modeling extremes.

Note that the GPD distribution can be defined as:

Mathematical function for GPD.

Where:

y = x - u
β (scale parameter)
ξ (shape parameter)

POT is generally more data-efficient and widely used in financial risk modeling.

Key Metrics Derived from EVT

Various metrics have been developed to make use of EVT in the risk measurement literature. The following table provides key insights into the important metrics.

Metric	Definition	Formula	Example	Why Important?
Value at Risk (VaR)	Maximum expected loss over a given time horizon at confidence level α	VaR_α=inf {x:P(X≤x)≥α}	99% daily VaR of $10M → Losses exceed $10M on only 1% of trading days	EVT-based VaR gives more accurate extreme loss estimates compared to normal/lognormal assumptions
Expected Shortfall (ES) / Conditional VaR (CVaR)	Expected loss given that VaR is exceeded	ES_α=E[X∣X>VaR_α	If losses cross $10M, ES measures the average loss beyond $10M	Captures tail severity; more coherent than VaR; strongly recommended under Basel III
Return Level	Magnitude of an event expected once every T years	Derived from EVT model (GEV or GPD)	100-year flood level → flood height expected once in 100 years	Used in environmental, insurance, and catastrophe risk
Return Period	Average time between events exceeding a threshold	( T = 1 / P(X > x) )	Flood exceeding certain height occurs once every 50 years	Helps quantify event frequency
Tail Index (Shape Parameter ξ)	Measures heaviness of the distribution tail	Estimated from GEV/GPD	Large ξ → higher probability of extreme losses	Critical for solvency modeling, capital planning, and stress testing

Metrics Deployed by SAS Risk Engine

Presently SAS Risk Engine uses three measures which are based on EVT Theory. These are Tail Index, Value at Risk (EVT based), and Conditional Extreme Loss or Conditional VaR (EVT based.). You use the keywords TAILINDEX, VAREVT and CONDEL in your code to deploy them. The following piece of code demonstrates the usage.

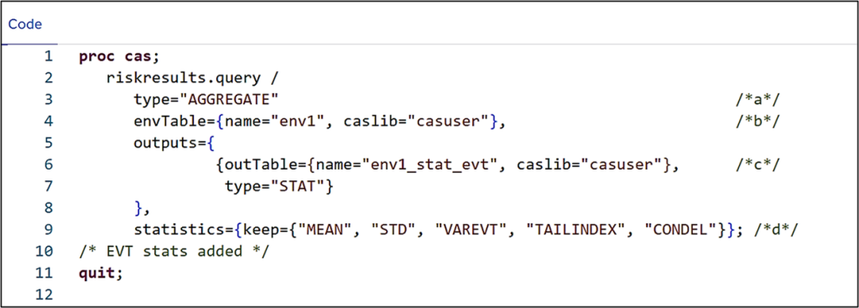

Illustration of EVT Metrics usage in SAS Risk Engine Code

Following is a brief description of the code:

The type parameter specifies aggregate as the type of query to perform.
The envTable parameter specifies the environment table as the table env1 in the casuser caslib.
The outputs parameter specifies the output tables to write. The outTable subparameter creates the statistics output table named env1_stat in the casuser caslib.
The statistics parameter specifies the statistics to compute on output variable draws. The keep sub parameter specifies the individual statistics to keep like "VAREVT", "TAILINDEX", "CONDEL” as EVT Statistics.

You can gain more knowledge about several risk related statistics in SAS Risk Engine including EVT statistics by going through the article, Intuitive Understanding of Statistics in SAS Risk Engine, and for programming related details refer to the training program at Programming with SAS Risk Engine.

Applications and Utility of EVT

Extreme Value Theory is useful across many domains because it focuses specifically on rare and extreme events, which are often the most critical for risk management and decision-making. It helps organizations estimate the probability and magnitude of extreme outcomes—such as financial crashes, catastrophic insurance losses, or severe floods—allowing better planning, capital allocation, and disaster preparedness. The following table provides a quick applications and utility of EVT across multiple domains.

Domain	Nature of Risk	Key Applications of EVT	Practical Utility
Insurance and Actuarial Risk	Heavy-tailed catastrophic losses	- Catastrophe modeling (earthquakes, floods, hurricanes) - Premium pricing - Reinsurance contract valuation - Solvency capital estimation	Enables accurate pricing of insurance products, efficient reinsurance structuring, and robust capital adequacy planning
Operational Risk	Rare, high-severity operational losses	- Fraud detection - Cyber-attack modeling - System failure loss modeling - Regulatory penalty estimation - Loss Distribution Approach (LDA) using EVT + compound Poisson models	Supports extreme loss forecasting, operational resilience planning, and regulatory capital calculation
Environmental and Climate Risk	Extreme natural events and climate anomalies	- Flood prediction - Heatwave analysis - Extreme rainfall modeling - Climate stress testing	Facilitates infrastructure planning, disaster risk mitigation, and climate resilience strategies
Cybersecurity and Fraud Detection	Rare anomalous events and attacks	- Detection of transaction spikes - DDoS attack identification - Abnormal spending pattern analysis - Dynamic anomaly thresholding	Improves early threat detection, fraud prevention accuracy, and system security resilience

Advantages and Disadvantages

Advantages:
Extreme Value Theory offers highly accurate modeling of tail risk, making it particularly effective for rare but high-impact events. It is data-efficient, performs well even under non-normal distributions, supports regulatory compliance with frameworks like Basel III and Solvency II, and provides a robust foundation for stress-testing and scenario analysis.

Limitations:
Despite its strengths, EVT has some challenges. It requires careful selection of thresholds, can be sensitive to small sample sizes, and carries model risk when extrapolating extreme tails. The method also assumes independent and identically distributed (i.i.d.) data, so proper validation, back-testing, and stress-testing are essential to ensure reliable results.

Conclusion

Extreme Value Theory provides a mathematically sound and practically powerful framework for quantifying rare but devastating risks. By focusing explicitly on distribution tails, EVT enables organizations to more accurately estimate worst-case scenarios, allocate capital, and build resilient risk management systems.

In an era marked by financial instability, climate uncertainty, and rising cyber threats, EVT stands as a cornerstone methodology for robust, forward-looking risk management.
