“Data-Aware” Scheduling with Airflow or How to Specify Data Dependencies in your DAGs

Started ‎03-19-2024 by
Modified ‎03-19-2024 by
Views 1,587

Last time, I explored how Airflow sensors can help starting processes upon the occurrence of an event like the creation of a file or the load of new records in a database table. Today, I am going to take a look at Airflow Datasets. As explained in the Airflow documentation, Airflow Datasets are useful to make your flows “data-aware”.



In other words, Airflow Datasets allow you to trigger a DAG (Directed Acyclic Graph, a process flow in Airflow) based on the “update” of an input “Dataset”, produced by another DAG for instance. I use “quotes” because it’s all logical. A Dataset is nothing but a string that describes a logical data source or target. It is not connected to actual data, and that’s finally the beauty of it.



It’s simply declarative. For example, you can declare that a flow named MAN_THROWS “updates” a Dataset named BALL. And you can declare that a flow named DOG_RUNS is triggered when Dataset BALL is updated. You just created a dependency between MAN_THROWS and DOG_RUNS. If MAN_THROWS is triggered (for example based on a time event) and runs successfully, then Dataset BALL will be marked as updated which will trigger DOG_RUNS. It’s probably a tiny bit more subtle but you get the idea, and we will provide more examples further down.



How to declare an Airflow Dataset?



An Airflow Dataset is defined using a URI and remember that an Airflow Dataset is not connected to any data systems. It’s just a string and Airflow will not check the existence of the data it represents. So, you can be very creative about it. Let say we have a flow (DAG) whose goal is to update a fact table named ORDERS stored as a SAS data set (yes, it’s confusing, right?) in a SAS library named SALES, you could define the Airflow Dataset as:



  • sas://sales/orders



And that’s it. You defined an Airflow Dataset URI.



You can define as many Datasets as you want and try to match the reality of your data ecosystem:



  • cas://productsCaslib/product_catalog
  • gcs://credit/transactions/operations.parquet
  • singlestore://energy/water/water_consumption_current_year



In terms of DAG source code (Python), this will look like this:



example_dataset = Dataset("sas://sales/orders")



How to specify that a DAG updates an Airflow Dataset?



First, we need to specify what “updates” a Dataset. I was probably oversimplifying it earlier when I said that a DAG “updates” a Dataset. Actually, a task (a unit of processing belonging to a DAG) is the element that owns the update concept. In other words, a task within a DAG “produces” (or “updates”) a Dataset. A task can update multiple Datasets. A DAG can contain multiple tasks that update a Dataset.



So, the following flow is NOT what really happens:






Instead, the following one represents more accurately the actual workflow:






Bottom line: a consumer DAG that depends on Datasets – here DAG 3 – may start before the producer DAGs finish – here DAG 1 and DAG 2. Indeed, as soon as the tasks that update both Datasets are finished and successful, DAG 3 can start. This can be useful to have that level of granularity.



Having said that, let’s see a code example of how to specify that a task updates a Dataset:



task1 = SASStudioOperator(task_id="1_LoadOrders.flw",
   exec_type="flow",
   path_type="content",
   path="/Public/Load Orders.flw",
   compute_context="SAS Studio compute context",
   connection_name="sas_default",
   exec_log=True,
   codegen_init_code=False,
   codegen_wrap_code=False,
   outlets=[Dataset("sas://sales/orders")],
   trigger_rule='all_success',
   dag=dag)



This is done through the outlet parameter (standard option of the main operator class). If this task (among other tasks in a DAG) runs successfully, the Dataset sas://sales/orders will be marked as “updated”. You can specify multiple Datasets in this outlet parameter.



How to specify that a DAG is triggered by an Airflow Dataset update?



Now, how do we tell a DAG that it should start when a Dataset has been marked “updated”? Simply by using a special string in the schedule parameter.



The schedule parameter can take a cron expression, a cron preset, a timedelta expression or a Dataset expression:



dag = DAG(dag_id="Prepare_Data_for_Analytics",
   schedule=[Dataset("sas://sales/orders")],
   start_date=datetime(2024,3,14),
   catchup=False)

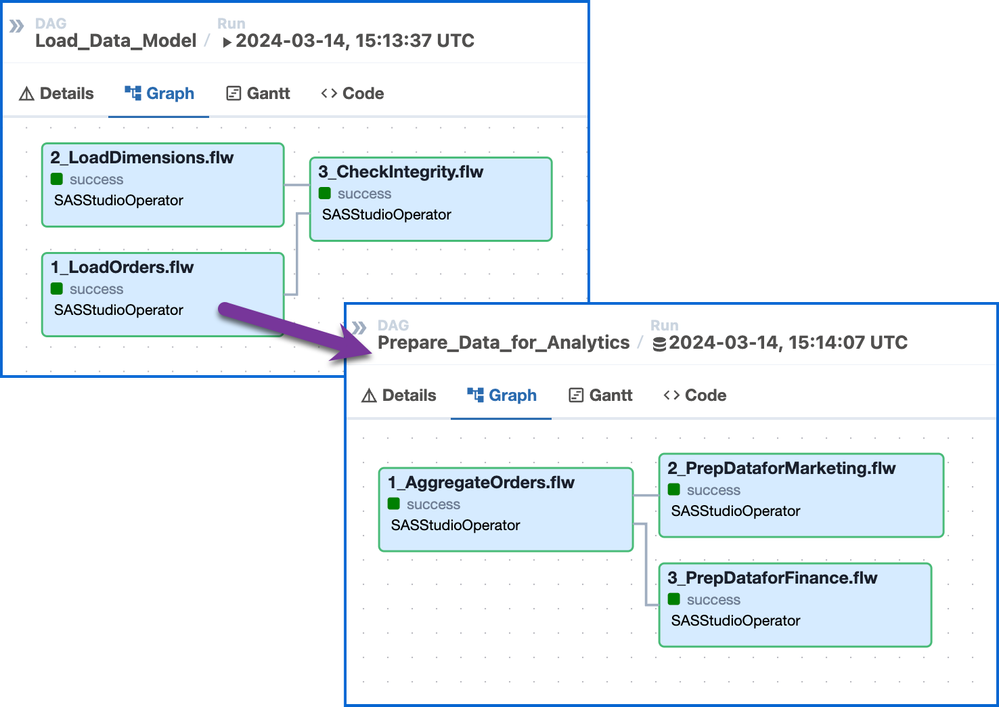

This DAG will start as soon as the Dataset sas://sales/orders is being updated. And it will start every time the Dataset is being updated.






If you look at the DAGs list in Airflow, you will observe this:






Get the full code of the two sample DAGS here.



The cherry on the cake: Datasets lineage



The Airflow user interface provides a lineage view (“Datasets” menu) of the relationships between DAGs and Datasets. This is super helpful to understand your orchestration sequence.






As a conclusion, I will just mention that I updated my “Airflow – Generate DAG” custom steps on GitHub to include the ability to define dependencies between your DAGs using Airflow datasets:






Thanks for reading.
