pie chart (using the values of a variable)

[PierreYvesILY]

Hello,

I want o create a pie chart with data structured as the folloing:

data Beispiel(label='Beispiel');

input Structure:$35. Month:2. Anz:5.; /* Anz is a numeric value, actually */

datalines;

Nord 1 250

South 1 305

Center 1 444

East 1 140

West 1 456

Nord 2 210

South 2 175

Center 1 413

East 2 199

West 2 302

Nord 3 150

South 3 405

Center 3 124

East 3 140

West 3 456

Nord 4 105

South 4 375

Center 4 145

East 4 240

West 4 159

;

run;

I wrote:

PROC TEMPLATE;

DEFINE STATGRAPH pie;

BEGINGRAPH;

LAYOUT REGION;

PIECHART CATEGORY = Anz / group=monat

DATALABELLOCATION = OUTSIDE

DATALABELCONTENT = ALL

CATEGORYDIRECTION = CLOCKWISE

START = 180 NAME = 'pie';

DISCRETELEGEND 'pie' /

TITLE = 'Anzahl der Anträge';

ENDLAYOUT;

ENDGRAPH;

END;

RUN;

proc sgrender data=Beispiel template = pie; run;

it gives stupid results (calculation the number of structures for each month and classified by Anz value). The reverse (variable = Structure instéad of Anz).

How should I proceed to get a pie chart where the value of Anz gives the part of each structure for each month?

[hollandnumerics]

PierreYvesILY,
Please could you post a copy of the Beispiel, or a similar, data set so we can test your code?

[PierreYvesILY]

hallo Philipp,

thanks for your interest.

The Beispiel Data is the following, and should be directly copied into your SAS session without any pb:

data Beispiel(label='Beispiel');

input Structure:$35. Month:2. Anz:5.; /* Anz is a numeric value, actually */

datalines;

Nord 1 250

South 1 305

Center 1 444

East 1 140

West 1 456

Nord 2 210

South 2 175

Center 1 413

East 2 199

West 2 302

Nord 3 150

South 3 405

Center 3 124

East 3 140

West 3 456

Nord 4 105

South 4 375

Center 4 145

East 4 240

West 4 159

;

run;

This Dataset is only an exemple, my actual Dataset is a lot bigger, but for code testing purpose I wrote this one extra.

YOu have 5 'Structure' items (Nord, SOuth, Center, East, West)

4 Months from 1 to 4

and a value Anz (=Anzahl) between 0 and 1000 for each Structre + Month.

The desired pie displays in each Pie Sector a Structure for each month, and the size of the Pie sector is given by the Anz value: Anz /(Sum of Anz).

Order of the months as in the group=monat option is perfectly fine.

I hope it helps.

The code I wrote after the DAtaset is giving a result where all sectors are of the same size, not displaying the size accordingly to the Anz /(Sum of Anz).

That's the point I don't resolve myself. Don't know how to, although I checked many pie related tutorials / pages / doc.

Thanks a lot,

have a nice day,

PY

[hollandnumerics · Accepted solution]

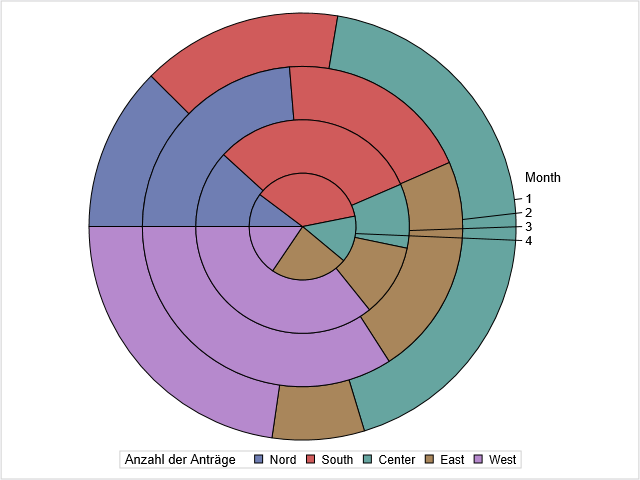

PY, I think you have missed out the response= part of the template. If you try using my PIE2 template instead, then, using your supplied data set code, your pie chart will look like the one below:

PROC TEMPLATE;
  DEFINE STATGRAPH pie2;
    BEGINGRAPH;
      LAYOUT REGION;
        PIECHART CATEGORY = structure response = anz / group=month
            stat = sum
            DATALABELLOCATION = OUTSIDE
            DATALABELCONTENT = ALL
            CATEGORYDIRECTION = CLOCKWISE
            START = 180 NAME = 'pie';
            DISCRETELEGEND 'pie' /
            TITLE = 'Anzahl der Anträge';
      ENDLAYOUT;
    ENDGRAPH;
  END;
RUN;

proc sgrender data=Beispiel template = pie2;
run;

Enjoy!..............Phil

[PierreYvesILY]

Thanks a lot Phil,

I will use adapt this code to my actual data and check that it also works.

Your result is actually exactly what I want.

I'll let you know if I encounter further problems with the actual data.

Thank you again,

Regards,

PY

[PierreYvesILY]

It worked after another step to clean my data in the dataset.

Thanks a lot,

Regards,

PY
