Stacked bar graph w/ table annotation

[lbarwick]

Morning,

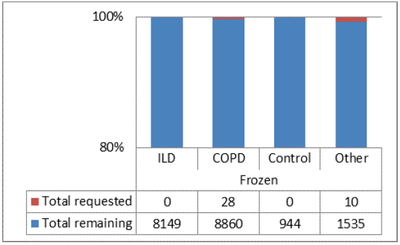

I'm trying to use proc gchart in conjunction with the annotation facility to generate a stacked bar graph with a table annotated below. An example of my desired result is below (produced in Excel):

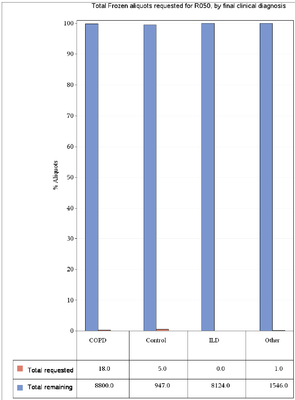

The closest example I found was at http://support.sas.com/kb/35/774.html so this is what I modeled my code off of. I did get my data set up and was able to make the example code work and produce a graph similar to what is in the preceding link (two bars per response variable with the actual response values displayed in a grid under the bar graph). That result is below:

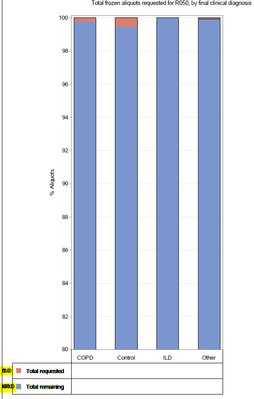

I then began adjusting my code to create stacked bars and got my table frame and legend set up appropriately. The issue I am running into now is that the response values are scrunched to the left of my annotated table (see highlighted portion):

My code is below. This is not complete (i.e. the pieces that define the raw data behind the graph are not included for brevity). I mainly need help with the /*Populate the table */ portion and curious if anyone sees anything obvious that I need to adjust to get my data annotations correctly displayed in the table. Or perhaps my gchart code is not set up correctly to do what I want. If needed I can re-post code to facility reproducibility.

data impact&spectype._forprint;
	length mid $15.;
   set impact&spectype._forprint;
	if dx ne 'Total' then do;
   response=&spectype.totreq; mid='totreq'; output; *use to display N in annotated data;
   response=totremain; mid='totremain'; output; *use to display N in annotated data;
	response=pctrequest; mid='pctrequest'; output; *use for % in y-axis of stacked bar;
	response=pctremain; mid='pctremain'; output; *use for % in y-axis of stacked bar;
	end;

keep dx response mid totremain &spectype.totreq pctrequest pctremain n;
run;
proc sort; by dx mid; run;

data impact&spectype._anno;
   set impact&spectype._forprint;
   by dx mid;
   length function color $8 text $20 style $ 20;

/* Populate the table */
   if first.dx then do;
      function='move'; xsys='2'; ysys='1';
         midpoint=mid; group=dx; y=0;
         output;
      function='cntl2txt'; output;
      function='label'; xsys='A'; ysys='3';
         x=+3; y=17.25;
         text=trim(left(put(&spectype.totreq,8.1)));
         color='black'; position='+'; when='a';
         output;
      function='move'; xsys='2'; ysys='1';
         midpoint=mid; group=dx; y=0;
         output;
      function='cntl2txt'; output;
      function='label'; xsys='A'; ysys='3';
         x=+3; y=13.75;
         text=trim(left(put(totremain,8.1)));
         color='black'; position='+'; when='a';
         output;
   end;

/* Generate the table frame */
   function='move'; xsys='3'; ysys='3';
      x=3; y=12;
      output;
   function='bar';  xsys='1'; ysys='3';
      x=100; y=19;
      style='empty'; color='black'; line=0;
      output;

/* Generate the row headers */
   function='label'; xsys='3'; ysys='3';
      style='marker'; text='U'; color='cxde7e6f';
      x=4; y=17.25; position='6';
      output;
   function='label'; xsys='3'; ysys='3';
      style="Albany AMT"; text='Total requested'; color='black';
      x=7; y=17.5; position='6';
      output;
   function='label'; xsys='3'; ysys='3';
      style='marker'; text='U'; color='cx7c95ca';
      x=4; y=13.75; position='6';
      output;
   function='label'; xsys='3'; ysys='3';
      style="Albany AMT"; text='Total remaining'; color='black';
      x=7; y=14; position='6';
      output;

/* Generate the vertical lines in the table */
   function='move'; xsys='1'; ysys='1';
      x=0; y=0;
      output;
   function='draw'; xsys='1'; ysys='3';
      x=0; y=12;
      line=1; color='black';
      output;
   function='move'; xsys='1'; ysys='1';
      x=100; y=0;
      output;
   function='draw'; xsys='1'; ysys='3';
      x=100; y=12;
      line=1; color='black';
      output;


/* Generate the horizontal line in the table */
   function='move'; xsys='3'; ysys='3';
      x=3; y=15.5;
      output;
   function='draw'; xsys='1'; ysys='3';
      x=100; y=15.5;
      line=1; color='black';
      output;
run;

%mend impact;
%impact (spectype=frozen);

ods graphics;

title1 font='arial' height=10pt "Total frozen aliquots requested for R050, by final clinical diagnosis";

axis1 label=(a=90 '% Aliquots')
      order=(80 to 100 by 2)
      minor=none;

axis2 label=none
      value=none
      origin=(20pct,22pct)
      offset=(4pct,4pct);

axis3 label=none;

footnote1 h=.5 '  ';

pattern1 value=solid color=cx7c95ca;
pattern2 value=solid color=cxde7e6f;

ods pdf file="X:\XXX\COMMON\Requests\test.pdf";

proc gchart data=impactfrozen_forprint (where=(mid in ('pctremain','pctrequest')));
   vbar dx / sumvar=response subgroup=mid group=dx g100 nozero
              coutline=black
              space=0 gspace=5 width=4
              cframe=white autoref clipref
              raxis=axis1 maxis=axis2 gaxis=axis3 nolegend
              annotate=impactfrozen_anno;

run; quit;
ods pdf close;

[RW9]

Move to the modern graphing system - sgplot/GTL.  Examples:

https://blogs.sas.com/content/?s=stacked

And you will find everything you ever wanted to know about graphs at:

https://blogs.sas.com/content/graphicallyspeaking/

[lbarwick]

Thanks. I think I found a solution. Here is some sample code I developed that is getting me to where I need to be (just need to add labels):

data dx;
input nmid $ pctmid $ dx $ nresponse pctresponse;
datalines;
totreq pctreq COPD 18 0.20
totrem pctrem COPD 8800 99.80
totreq pctreq Control 5 0.52
totrem pctrem Control 949 99.48
totreq pctreq ILD 0 0
totrem pctrem ILD 8124 100
totreq pctreq Other 200 12.93
totrem pctrem Other 1546 87.07
;
run; proc sort; by dx descending pctresponse; run;


ods graphics;

ods pdf file="X:\test1.pdf";
proc sgplot data=dx;
  title 'Frozen specimens requested';
  vbarparm category=dx response=pctresponse / group=pctmid dataskin=gloss;
  xaxistable nresponse / class=nmid label labelpos=left location=inside;
  xaxis display=(nolabel);
  keylegend / location=inside position=topright;
  yaxis offsetmax=0.1;
  run;
ods pdf close;

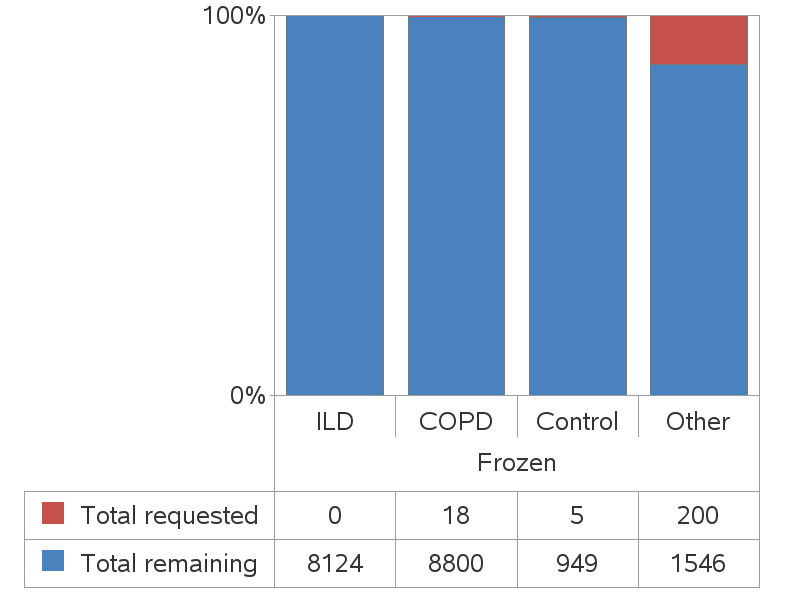

[GraphGuy · Accepted solution]
