Band in PROC SGPLOT

[fastb]

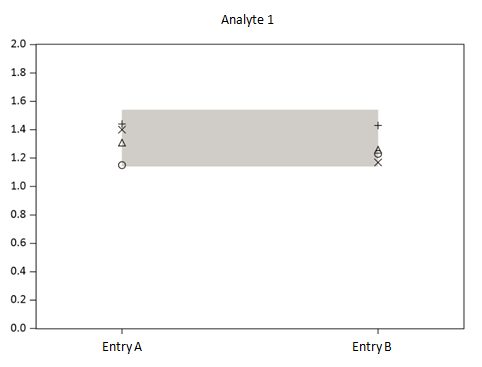

The attached graph was created in PROC SGPLOT. I want the gray band to extend the full width of the plot.  However, I would like the data points to stay where they are.  Any suggestions?

[GraphGuy]

I'm not sure how to do it in sgplot, but you can do it in gplot by annotating the gray shaded range ...

data foo;
input entry $ 1-7 value group;
datalines;
Entry A 1.20 1
Entry A 1.25 2
Entry A 1.50 3
Entry A 1.60 4
Entry B 1.23 1
Entry B 1.41 2
Entry B 1.52 3
Entry B 1.61 4
;
run;

data anno_range;
xsys='1'; ysys='2'; when='b';
function='move'; x=0; y=1.2; output;
function='bar'; x=100; y=1.6; color='graydd'; style='solid'; output;
run;

symbol1 value=circle interpol=none color=black;
symbol2 value=triangle interpol=none color=black;
symbol3 value='x' interpol=none color=black;
symbol4 value=plus interpol=none color=black;

axis1 label=none minor=none order=(0 to 2.0 by .2) offset=(0,0);
axis2 label=none offset=(30,30);

proc gplot data=foo anno=anno_range;
plot value*entry=group / vaxis=axis1 haxis=axis2 nolegend;
run;

[Jay54]

The "constant" bands are extended to the edge only if the X variable is numeric.  So, change your X variable to numeric, and add a UDF for the labels and set x axis offsets to 0.2.

proc sgplot data=BandNum;

  band x=x upper=1.5 lower=1.05;

  scatter x=x y=y / group=group name='a';

  yaxis values=(0 to 2 by 0.2) display=(nolabel);

  xaxis offsetmin=0.2 offsetmax=0.2 display=(nolabel) values=(1 2);

  keylegend 'a' / location=inside position=topright;

run;
