Yes, you can secure ESP !
Encryption, authentication and access control are standard features for an “Enterprise Class” software. Although security was originally not the primary focus of ESP, those features have been progressively added or extended all along the ESP Software life cycle.
Today SAS® Event Stream Processing 4.3 comes with a solid set of security capabilities.
However, your customer might be running a previous version of ESP.
So, here we will first provide a short history of this aspect for the major ESP releases, then delve a little bit more into the new ESP 4.3 capabilities and finally walk through a few examples with the new SASLogon Authentication feature. (Access controls and encryption examples could be the topic for a future blog :))
The History
| ESP version | Added feature | Commment |
|---|---|---|
| 3.1 | Encryption
|
support for ESP client-server communication (using SAS approved TLSv1.2 ciphers) |
| 3.2 | Authentication
|
Authentication was not added to ESP Studio. This tool is intended to create and test new models in developer’s environment before they are deployed to production. Authentication support applies for Streamviewer (as it relies on pub/sub API), it will prompt the user for a token. |
| 4.2 | Authentication
|
SASLogon authentication when enabled, allows ESP to use the SASLogon Viya microservice to validate the user authentication. The user and password is transmitted from the ESP client to the ESP Server, which itself submits those credentials to the SASLogon service. If the service accepts the authentication with the provided credentials, then the ESP server to client communication is enabled. |
| 4.3 (current) | Authentication
|
Explicit permissions are defined for ESP users in a ".yml" file. |
| 5.1 | Authentication
|
The capabilities matrix (for ESP 4.3)
Based on tests, documentation, and RnD or Product Management feedback I have tried to summarize available security capabilities depending on the ESP version and ESP component in the table below.
| Security Features in ESP 4.3 | Type: | Pub/sub API Adapters | ESP Client, REST API | ESP Streamviewer | ESP Studio | Event Stream Manager service |
|---|---|---|---|---|---|---|
| Ports used : | pubsub(5555) | ESP Client, REST API http-admin (5556), http-pubsub (5557) | http-pubsub (5557), pubsub (5555) | http-admin (5556), http-pubsub (5557) | http-admin (5556), http-pubsub (5557) | |
| Authentication | oAuth2 | YES | YES | YES[1] | YES[2] | YES |
| SASLogon credentials | YES[3] | YES[3] | YES[3] | NO[4] | NO | |
| Kerberos[5] | YES | YES | YES | NO[4] | NO | |
| User Access Control | Permissions[6] | YES | YES | YES | NO[4] | NO |
| Encryption(*) | TLSv1.2 | YES | YES | YES | YES[7] | YES[7] |
(*) Here we are NOT talking about client encryption between the Web Browser and the ESP Web Application, but we are talking about the communications between the ESP Web Application and the ESP Server. Note that with 5.1, it is planned that ESP Studio can use HTTPS from the browser when it is installed with SAS Viya.
Note: Most of the cases have been tested. However as there are a lot of possible combinations and ESP clients, the table might not be 100% accurate or complete enough, feel free to contact me if you detected anything wrong !
Event Stream Manager
Event Stream Manager (ESM) is a completely new with ESP 4.3. It is a web-based client that enables you to manage your SAS Event Stream Processing environment (Administer ESP deployments and projects, monitor deployment health, etc...).
As ESM is a SAS Viya web application, it integrates with all SAS Viya components and Microservices (including authentication).
If deployed in stand-alone mode, it comes with its own set of Viya Microservices. As other SAS Viya application, ESM can use full Viya capabilities for authentication (user/password, Kerberos, etc...) and TLS can be configured for the ESM User Interface.

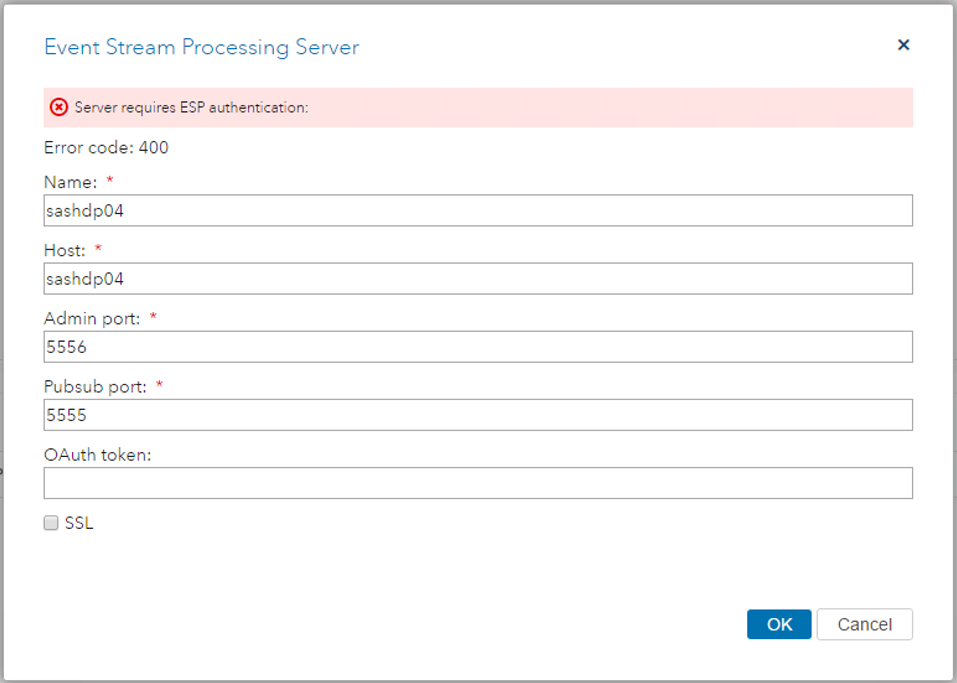

As you can see below, the end user is authenticated in the GUI (it stills not the case for ESP Studio).
However, when working with an ESP server, ESM supports "encryption-enabled" ESP server but does not support ESP server SASLogon Authentication.
The Authinfo file
In many cases, you won’t have the possibility to provide a user/password in an "interactive mode" (prompt or command line), or even if you can provide a user/password, maybe you don’t want to expose this password in plain-text.
In such cases, you can use an "authinfo" file to store the credentials that you need for the authentication. The Viya documentation provides a nice "How to" section, explaining Authinfo File creation. Basically, it is a simple text file called .netrc or .authinfo, usually located in user's home directory, secured to be read only by its owner and containing user credentials in a specific format, such as :
However a simplified format, such as :
can work too.
I found out the hard way that ESP can be, kind of "capricious" with the format of the .netrc file content... for example:
- For dfesp_client, use "user" field, do not use the "port" field
- For Streamviewer, you need to use the "username" field (instead of "user")
- For Streamviewer do not use "host" or "port", just default, user and password fields
Note that you can also use "authinfo" file in ESP adapters when connecting to thirdparty data/event providers (such as CAS).
Finally, an interesting thing about the "authinfo" file authentication is that you can use the SAS PROC PWENCODE to encode your password using one of the available encoding method (for example sas004 which uses a 256-bit key plus 64-bit salt value to encode passwords).
Example with the SASLogon authentication in ESP
First you need to start the ESP Server with the SASLogon authentication enabled, for example:
In the server log, you should see :
Now your ESP server is running a project defined in vwapeng.xml and will only accept access to the project windows content from authenticated users.
Note: Do not forget to specify the SASLogon Viya service port (80 by default). Otherwise your ESP server will start without error but you will never be able to authenticate.
It is time to test the access to the ESP server:
As we can see, credentials are required, now let’s create an authinfo file with the sasdemo credential and try again:
Now it works !
Streamviewer SASLogon authentication
As it is using two communication channels (http-pubsub and pubsub), the Streamviewer configuration for SASLogon is a bit specific, in order to use the SASLogon authentication you’ll need to provide the user password at two levels:
- UI for communications on http-pubsub port 5557,
- Authinfo file for communications on pubsub port 5555
Let’s see what it means with an example:
First we need to start the Streamviewer service with an authinfo file containing the user credentials.

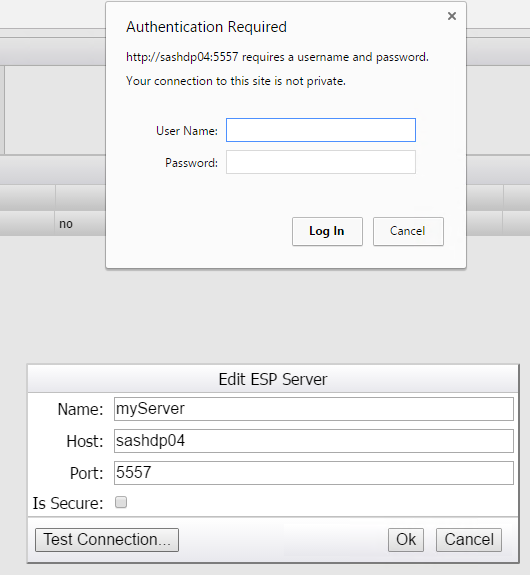

After starting the ESP XML server with SASLogon authentication enabled, in Streamviewer we can define and test the connection to the server.
When prompted we just provide the sasdemo user and password.

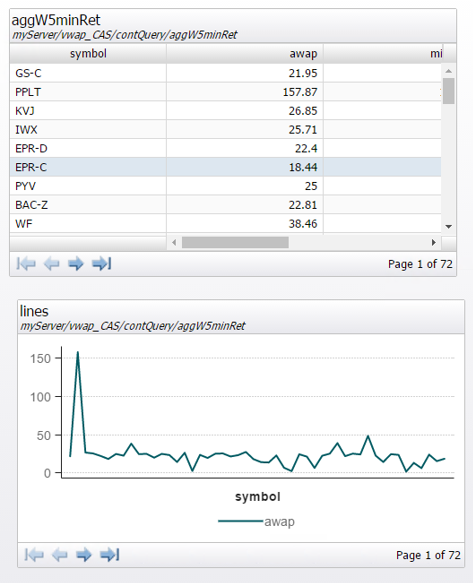

We can now subscribe to the ESP windows to display the real-time dashboards.
Conclusion
On the security side, ESP 4.3 brings very important new capabilities, securing his position as a true Enterprise Class software.
Thanks to an increased integration with Viya, ESP 4.3 brings the capability to almost all the ESP tools/clients to authenticate through user/password or Kerberos mechanisms.
With ESP 4.3 a new tool is also appearing, "Event Stream manager" which brings and can leverage the full Viya capabilities for authentication.
However, do not underestimate the required time to set up and test authentication, encryption and permission policies as many combinations are possible with the various ESP tools/clients and ways to access ESP.
Finally, please note that all "5.1+" mentions are road-map information, so subject to changes.
Many thanks to Ravi Sunchu, Chris M West, Robert Levey, Vince Deters for their invaluable help to cover this ESP topic.
