 Good morning,



I have a problem in applying the "proc tree" procedure in SAS University. I can't visualize any dendrogram after running the procedure. The only thing I can see are crosses all over the output page. May anyone help me ? I write you down the command I insert, the syntax should be correct ( here it refers to the single linkage method )



/*********************************************************************************************/
/* Single linkage */
/*********************************************************************************************/

proc cluster simple noeigen data=base.prin method=single outtree=dendro pseudo rmsstd rsq ;
var prin1-prin3;
copy Id dom_2_1--dom_2_11;
ID Id;
run;





/****************************************************************************************************************/
/* Create the dendrogram */
/****************************************************************************************************************/

proc varclus;
run;





Do I have to insert other commands to display the dendrogram in SAS University?

Thank you so much for helping me!

4 REPLIES 4
ChrisHemedinger
Community Manager

Did you enable ODS graphics before VARCLUS? Add:



ods graphics on;



Before your proc varclus statement.

Kangurika
Calcite | Level 5

Thank you for your answer! However I still can't visualize the dendrogram even if I add the SAS command ods graphics on;



Actually the commands my teacher gave me during the lesson did not include the command proc varclus but proc tree  ( I changed it trying to solve the problem alone by following the instructions on your website).



I leave you my "original" teacher's procedure for the single linkage method (with the ODS graphics on; added by me) . Then I've pasted a screenshoot of the output obtained by adding the ODS command before the proc tree statement. The same problem occurs with other cluster methods (complete linkage, average method, Ward).





/*********************************************************************************************/
/*	 Hierarchical Cluster Analysis on first three PC									     */
/*********************************************************************************************/

/*********************************************************************************************/
/*					Single linkage					 										 */
/*********************************************************************************************/

proc cluster simple noeigen data=base.prin method=single  outtree=dendro pseudo rmsstd rsq ;
var prin1-prin5;
copy d8_1--d8_19;
ID   interview_number;
run;


/****************************************************************************************************************/
/*  										Create the dendrogram											    */
/****************************************************************************************************************/

ods graphics on;
proc tree;
run;

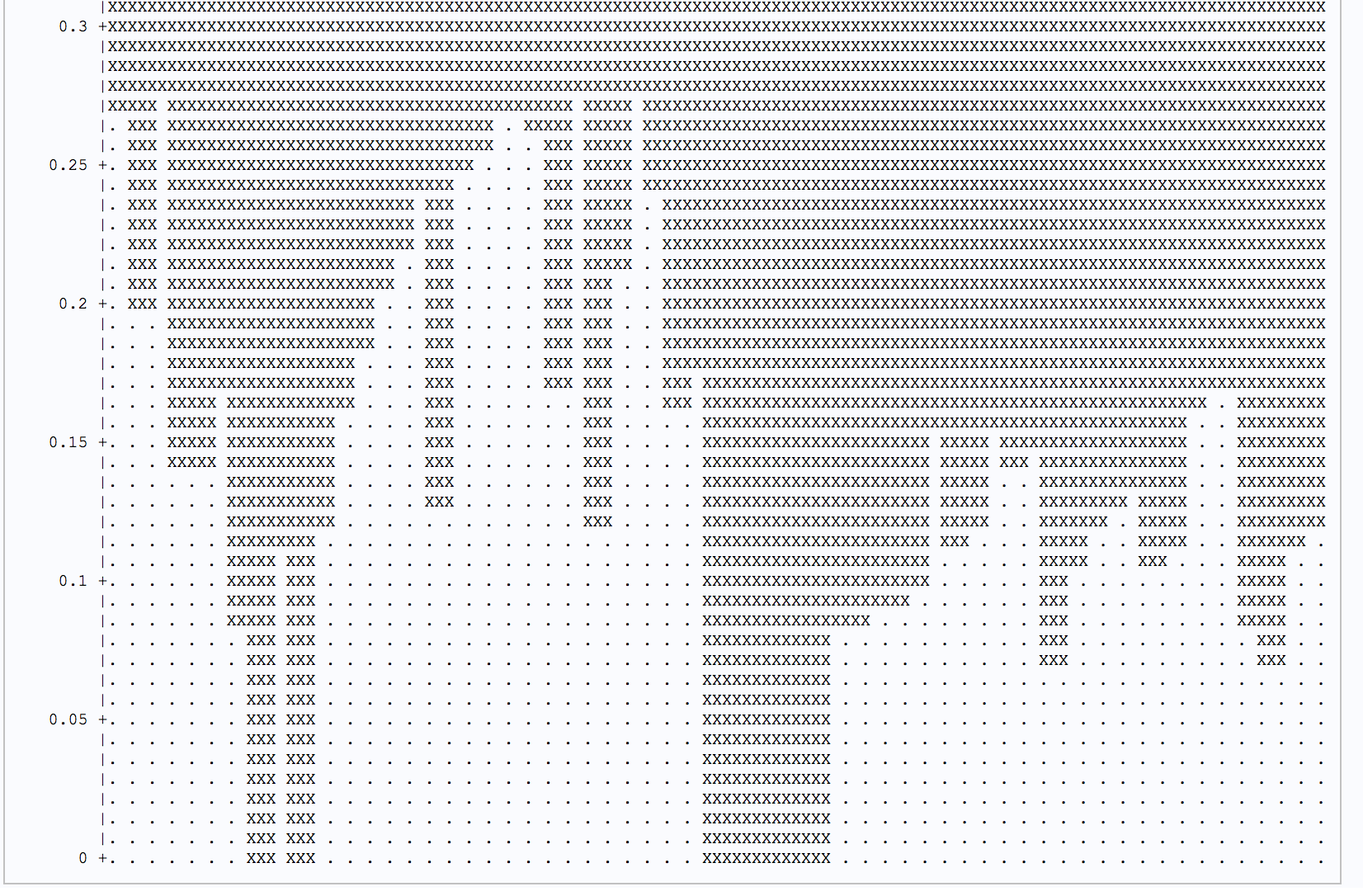

 This is the output I see after running the procedure above. Thank you again!

Schermata 2016-05-29 alle 23.42.29.pngSchermata 2016-05-30 alle 00.08.51.png

ChrisHemedinger
Community Manager

You're getting the "Line printer" version of PROC TREE output.  The VARCLUS procedure will provide a nicer output, I think, but you can see the varieties in this documentation topic.

DuaneTiemann
Fluorite | Level 6

I have the same problem.  PROC TREE does not produce graphics output in University Edition. I tried the GRAPHICS option as well but got "High resolution graphics is not available since SAS/GRAPH is either not licensed for your system or the license has expired.".  I read elsewhere that SAS/GRAPH is not available with University Edition.



PROC CLUSTER produces a nice graphic chart using TREE, but TREE won't display the outtree produced by CLUSTER.



I want to create my own agglomeration and use PROC TREE's graphic display. Is that supposed to be possible in University Edition?



University Edition Release 3.5
