Hi everyone, this forum has been great help to me in the past, so I'm hoping you can help me out of another rut. I am trying to customize the x-axis tickmarks in a proc lifetest hazard plot to be from 0 to 24. I have never used a macro or template before, but I'm hoping I'll be able to figure one out for this. Here is what I have tried so far:

The code I found on SAS.com (only changed the numbers for x and y values)



proc template;
   define statgraph Stat.Lifetest.Graphics.ProductLimitSurvival;
      dynamic NStrata xName plotAtRisk plotCensored plotCL plotHW plotEP
              labelCL labelHW labelEP maxTime StratumID classAtRisk plotBand
              plotTest GroupName yMin Transparency SecondTitle TestName pValue;
      begingraph;
         if (NSTRATA=1)
            if (EXISTS(STRATUMID))
            entrytitle "Product-Limit Survival Estimate" " for " STRATUMID;
         else
            entrytitle "Product-Limit Survival Estimate";
         endif;
         if (PLOTATRISK)
            entrytitle "with Number of Subjects at Risk" / textattrs=
            GRAPHVALUETEXT;
         endif;
/* Original syntax */
*         layout overlay / xaxisopts=(shortlabel=XNAME offsetmin=.05 linearopts
            =(viewmax=MAXTIME)) yaxisopts=(label="Survival Probability"
            shortlabel="Survival" linearopts=(viewmin=0 viewmax=1
            tickvaluelist=(0 .2 .4 .6 .8 1.0)));

/* Modified syntax - modify axes */
         layout overlay /
            xaxisopts=(shortlabel=XNAME offsetmin=.05
                       linearopts=(viewmax=24 tickvaluelist=(0 6 12 18 24)))
            yaxisopts=(label="Survival Probs" shortlabel="Survival"
                       linearopts=(viewmin=.25 viewmax=.3 tickvaluelist=(0 0.05 0.1 0.15 0.2 0.25 0.3)));
            if (PLOTHW=1 AND PLOTEP=0)
               bandplot LimitUpper=HW_UCL LimitLower=HW_LCL x=TIME / modelname
               ="Survival" fillattrs=GRAPHCONFIDENCE name="HW" legendlabel=
               LABELHW;
            endif;
            if (PLOTHW=0 AND PLOTEP=1)
               bandplot LimitUpper=EP_UCL LimitLower=EP_LCL x=TIME / modelname
               ="Survival" fillattrs=GRAPHCONFIDENCE name="EP" legendlabel=
               LABELEP;
            endif;
            if (PLOTHW=1 AND PLOTEP=1)
               bandplot LimitUpper=HW_UCL LimitLower=HW_LCL x=TIME / modelname
               ="Survival" fillattrs=GRAPHDATA1 datatransparency=.55 name="HW"
               legendlabel=LABELHW;
            bandplot LimitUpper=EP_UCL LimitLower=EP_LCL x=TIME / modelname=
               "Survival" fillattrs=GRAPHDATA2 datatransparency=.55 name="EP"
               legendlabel=LABELEP;
            endif;
            if (PLOTCL=1)
               if (PLOTHW=1 OR PLOTEP=1)
               bandplot LimitUpper=SDF_UCL LimitLower=SDF_LCL x=TIME /
               modelname="Survival" display=(outline) outlineattrs=
               GRAPHPREDICTIONLIMITS name="CL" legendlabel=LABELCL;
            else
               bandplot LimitUpper=SDF_UCL LimitLower=SDF_LCL x=TIME /
               modelname="Survival" fillattrs=GRAPHCONFIDENCE name="CL"
               legendlabel=LABELCL;
            endif;
            endif;
            stepplot y=SURVIVAL x=TIME / name="Survival" rolename=(_tip1=
               ATRISK _tip2=EVENT) tip=(y x Time _tip1 _tip2) legendlabel=
               "Survival";
            if (PLOTCENSORED=1)
               scatterplot y=CENSORED x=TIME / markerattrs=(symbol=plus) name=
               "Censored" legendlabel="Censored";
            endif;
            if (PLOTCL=1 OR PLOTHW=1 OR PLOTEP=1)
               discretelegend "Censored" "CL" "HW" "EP" / location=outside
               halign=center;
            else
               if (PLOTCENSORED=1)
               discretelegend "Censored" / location=inside autoalign=(topright
               bottomleft);
            endif;
            endif;
            if (PLOTATRISK=1)
               innermargin / align=bottom;
               blockplot x=TATRISK block=ATRISK / repeatedvalues=true display=
                  (values) valuehalign=start valuefitpolicy=truncate
                  labelposition=left labelattrs=GRAPHVALUETEXT valueattrs=
                  GRAPHDATATEXT (size=7pt) includemissingclass=false;
            endinnermargin;
            endif;
         endlayout;
         else
            entrytitle "Product-Limit Survival Estimates";
         if (EXISTS(SECONDTITLE))
            entrytitle SECONDTITLE / textattrs=GRAPHVALUETEXT;
         endif;

/* Original syntax */
*         layout overlay / xaxisopts=(shortlabel=XNAME offsetmin=.05 linearopts
            =(viewmax=MAXTIME)) yaxisopts=(label="Survival Probability"
            shortlabel="Survival" linearopts=(viewmin=0 viewmax=1
            tickvaluelist=(0 .2 .4 .6 .8 1.0)));

/* Modified syntax - modify axes */
         layout overlay /
            xaxisopts=(shortlabel=XNAME offsetmin=.05
                       linearopts=(viewmax=24 tickvaluelist=(0 6 12 18 24)))
            yaxisopts=(label="Survival Probs" shortlabel="Survival"
                       linearopts=(viewmin=0 viewmax=.3 tickvaluelist=(0 0.05 0.1 0.15 0.2 0.25 0.3)));
            if (PLOTHW)
               bandplot LimitUpper=HW_UCL LimitLower=HW_LCL x=TIME / group=
               STRATUM index=STRATUMNUM modelname="Survival" datatransparency=
               Transparency;
            endif;
            if (PLOTEP)
               bandplot LimitUpper=EP_UCL LimitLower=EP_LCL x=TIME / group=
               STRATUM index=STRATUMNUM modelname="Survival" datatransparency=
               Transparency;
            endif;
            if (PLOTCL)
               if (PLOTBAND)
               bandplot LimitUpper=SDF_UCL LimitLower=SDF_LCL x=TIME / group=
               STRATUM index=STRATUMNUM modelname="Survival" display=(outline);
            else
               bandplot LimitUpper=SDF_UCL LimitLower=SDF_LCL x=TIME / group=
               STRATUM index=STRATUMNUM modelname="Survival" datatransparency=
               Transparency;
            endif;
            endif;
            stepplot y=SURVIVAL x=TIME / group=STRATUM index=STRATUMNUM name=
               "Survival" rolename=(_tip1=ATRISK _tip2=EVENT) tip=(y x Time
               _tip1 _tip2);
            if (PLOTCENSORED)
               scatterplot y=CENSORED x=TIME / group=STRATUM index=STRATUMNUM
               markerattrs=(symbol=plus);
            endif;
            if (PLOTATRISK)
               innermargin / align=bottom;
               blockplot x=TATRISK block=ATRISK / class=CLASSATRISK
                  repeatedvalues=true display=(label values) valuehalign=start
                  valuefitpolicy=truncate labelposition=left labelattrs=
                  GRAPHVALUETEXT valueattrs=GRAPHDATATEXT (size=7pt)
                  includemissingclass=false;
            endinnermargin;
            endif;
            DiscreteLegend "Survival" / title=GROUPNAME location=outside;
            if (PLOTCENSORED)
               if (PLOTTEST)
               layout gridded / rows=2 autoalign=(TOPRIGHT BOTTOMLEFT TOP
               BOTTOM) border=true BackgroundColor=GraphWalls:Color Opaque=
               true;
               entry "+ Censored";
               if (PVALUE < .0001)
                  entry TESTNAME " p " eval (PUT(PVALUE, PVALUE6.4));
               else
                  entry TESTNAME " p=" eval (PUT(PVALUE, PVALUE6.4));
               endif;
            endlayout;
            else
               layout gridded / rows=1 autoalign=(TOPRIGHT BOTTOMLEFT TOP
               BOTTOM) border=true BackgroundColor=GraphWalls:Color Opaque=
               true;
               entry "+ Censored";
            endlayout;
            endif;
            else
               if (PLOTTEST)
               layout gridded / rows=1 autoalign=(TOPRIGHT BOTTOMLEFT TOP
               BOTTOM) border=true BackgroundColor=GraphWalls:Color Opaque=
               true;
               if (PVALUE < .0001)
                  entry TESTNAME " p " eval (PUT(PVALUE, PVALUE6.4));
               else
                  entry TESTNAME " p=" eval (PUT(PVALUE, PVALUE6.4));
               endif;
            endlayout;
            endif;
            endif;
         endlayout;
         endif;
      endgraph;
   end;
run;









And added my proc lifetest code:

ods html;
ods graphics on;
proc lifetest data=lvad.inf4 method=life plots=survival(cl cb=hw strata=panel)
plots=hazard(cl) intervals = (3 to 24 by 1) maxtime = 24;
time Months*inf_ind(0);
;
run;
ods graphics off ;
ods html close;



But the closest I get is this:

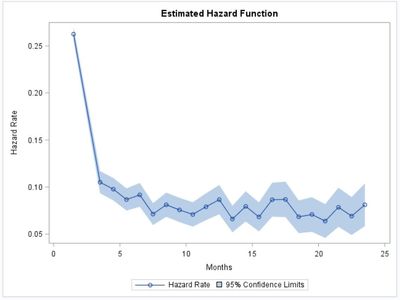

 As you can see, the line stops at 24 but the tickmark continues to 25. Please help!!! Thanks!

8 REPLIES 8
WarrenKuhfeld
Ammonite | Level 13

http://support.sas.com/documentation/cdl/en/statug/68162/HTML/default/viewer.htm#statug_kaplan_toc.h...



There is an entire chapter devoted to modifying the KM plot with examples that do not require direct template modification.

Reeza
Super User

@WarrenKuhfeld are the macros available in a location that's more user friendly to copy from? Ie how the documentation examples are stored?

I did see the data _null_ code in the documentation on how to download it automatically.



data _null_;
   %let url = //support.sas.com/documentation/onlinedoc/stat/ex_code/142;
   infile "http:&url/templft.html" device=url;

   file 'macros.tmp';
   retain pre 0;
   input;
   _infile_ = tranwrd(_infile_, '&amp;', '&');
   _infile_ = tranwrd(_infile_, '&lt;' , '<');
   if index(_infile_, '</pre>') then pre = 0;
   if pre then put _infile_;
   if index(_infile_, '<pre>')  then pre = 1;
run;

%inc 'macros.tmp' / nosource;

Maybe something simpler like:

https://blogs.sas.com/content/sasdummy/2012/12/18/using-sas-to-access-data-stored-on-dropbox/



Or is it possible to %INCLUDE a file directly from SAS Support website or GitHub?

WarrenKuhfeld
Ammonite | Level 13

The macros and macro variables are in the SAS sample library, which is available on the web, from the SAS help in display manager (for most releases I believe), and from the HTML documentation in newer releases.  The DATA step copies them from the web location.   All you have to do is a one-time copy, paste, and run of the lines from the chapter to make a local copy of the file.  From then on you can just include it.  The only thing I planned for was putting them in the sample library.

Reeza
Super User

@WarrenKuhfeld wrote:

 and from the HTML documentation in newer releases.



It seems to link back to the older style of formatting on the web, from the 'newer' style which is cleaner to copy/paste from, ergo my question.



STAT 14.3 Documentation

http://documentation.sas.com/?docsetId=statug&docsetTarget=statug_kaplan_sect014.htm&docsetVersion=1...



Links to this as source code, much different style than the newer versions:

http://support.sas.com/documentation/onlinedoc/stat/ex_code/142/templft.html





PS. It seems we've come full circle in some ways, originally had FTP sites with just plain text files, then migrated to web pages instead and now back to text files 🙂

zombiegirl
Calcite | Level 5

Ah, okay. Sadly my SAS classes skipped over macros, so I had no idea you had to actually add them to your program, which makes a lot more sense. Will try this then circle back. Thanks!

Reeza
Super User

1. Run the code to create the macros on your system.

http://support.sas.com/documentation/onlinedoc/stat/ex_code/142/templft.html

Or an easy to copy version here:

https://gist.githubusercontent.com/statgeek/5a380133c1df7da6a8b2eb51fddb6811/raw/1d270ec4bc9d61dd084...







2. An example of how you would modify it, in this case, I modified to show 0 to 500 by 100. You no longer need the MAXTIME option.



%ProvideSurvivalMacros; %let xOptions = label="Time" linearopts=(viewmin=0 viewmax=500 tickvaluelist=(0 100 200 300 400 500)); %CompileSurvivalTemplates; proc lifetest data=VALung plots=(s) outtest=Test; time SurvTime*Censor(1); id Therapy; strata Cell; test Age Prior DiagTime Kps Treatment; run;

Data to run the code above is available here as well:

http://documentation.sas.com/api/docsets/statug/14.3/content/statug_code_liftex1.htm?locale=en













zombiegirl
Calcite | Level 5

Thanks for your answer. I ran the first macro exactly as stated, then added in



%ProvideSurvivalMacros;

%let xOptions = label="Time"
                linearopts=(viewmin=0 viewmax=24
                            tickvaluelist=(0 6 12 18 24));

%CompileSurvivalTemplates;
libname lvad 'd:\lvad';
Options nofmterr;
proc lifetest data=lvad.inf4 method=life plots=survival(cl cb=hw strata=panel)
plots=hazard(cl) intervals = (0 to 24 by 1);
time Months*inf_ind(0);

run;

And there was no change, the resulting graph was exactly the same. I tried several similar macros and nothing worked. I've never successfully used a macro ever, am I doing something wrong?

Reeza
Super User

Post your log from when you run the PROC LIFETEST code please.



Also, try running the demo code I provided with the source data and see if that generates the expected graph. If it does, it's something with your code or data. If it doesn't then it's something with the answer or SAS version.




@zombiegirl wrote:

Thanks for your answer. I ran the first macro exactly as stated, then added in



%ProvideSurvivalMacros;

%let xOptions = label="Time"
                linearopts=(viewmin=0 viewmax=24
                            tickvaluelist=(0 6 12 18 24));

%CompileSurvivalTemplates;
libname lvad 'd:\lvad';
Options nofmterr;
proc lifetest data=lvad.inf4 method=life plots=survival(cl cb=hw strata=panel)
plots=hazard(cl) intervals = (0 to 24 by 1);
time Months*inf_ind(0);

run;

And there was no change, the resulting graph was exactly the same. I tried several similar macros and nothing worked. I've never successfully used a macro ever, am I doing something wrong?
