eemrun
Obsidian | Level 7

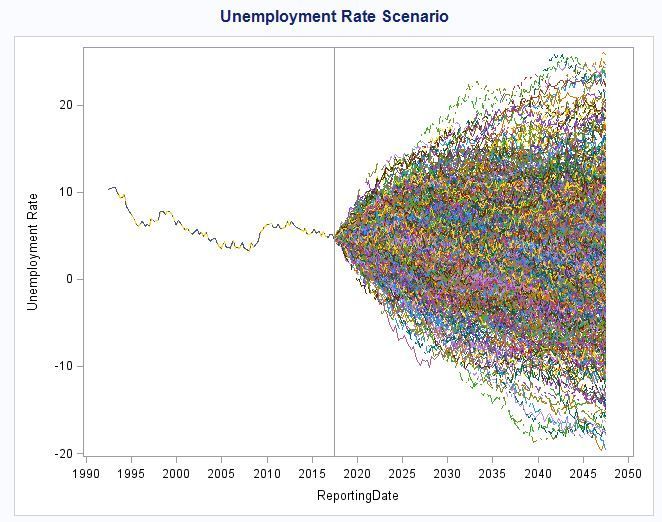

I am trying to plot a chart with multiple scenarios. The code currently used to display it is as follows:



title 'Unemployment Rate Scenario';
proc sgplot data=ifrs_econ_scnr;
   series x=ReportingDate y=Raw_UMP/group = Iteration;
   format ReportingDate yyqc4.;
   yaxis label= 'Unemployment Rate';
   refline '30Jun2017'd / axis = x;
 run;




The chart is grouped by 'Iteration' and I wanted to know if I could highlight 1 particular iteration (e.g. 1) in the plot and make it a bit more prominent (e.g. change weight of the line). Any ideas?

2 REPLIES 2
WarrenKuhfeld
Ammonite | Level 13

In a DATA step, before SGPLOT, create a new variable for just iteration 1.  Then add a second SERIES statement after the first that just displays that iteration.  Use options to make the line heavier or change the color or do what it takes to make it more prominent.

Reeza
Super User

Make the first series black, with a heavier line and the remains as light grey. In fact, it'll probably end up similar to a confidence/prediction interval/band, which is another option to consider. Summarize the data ahead of time to get the max/min to set up prediction intervals and use that to define a band instead.



SGPLOT has examples in the documentation of plotting a line series with banded intervals.
