If you enable XCMD, enable Watchdog to prevent XCMD accessing paths outside the LOCKDOWN allowlist
If you absolutely must enable XCMD, which we do not recommend, then consider enabling SAS Watchdog to limit XCMD access to the filesystem. You should also take a further step to prevent users from changing the value of the SHELL environment variable inside SAS.
A SAS colleague, Phil Hopkins, recently found that in addition to extending the protection of the lockdown paths allow list to Python, R or Java code executed directly in SAS Compute sessions, SAS Watchdog extends the same protection to XCMD statements like filename pipe, the x statement, %SYSEXEC macro statements or the CALL SYSTEM routine. Attempts to access filesystem paths outside the lockdown paths list from XCMD statements are blocked by SAS Watchdog, which is something we were not previously aware of, but it is good news!
The lockdown paths list is part of LOCKDOWN, and you'll find lots of articles explaining what LOCKDOWN does and how to modify its settings for your needs with quick web search, or a search of articles published here. I recently wrote another article about how to see which paths are in the LOCKDOWN paths list, and how to add paths here.
To be clear, SAS Viya is designed to be secure by default. A number of SAS programming language features are disabled by default in SAS Viya, as they are in earlier versions of SAS. The LOCKDOWN SAS System option is enabled by default. Separately, XCMD is disabled by default. We recommend both features stay that way.
We do not recommend anyone write new SAS code that uses XCMD; in general there are far more secure ways to achieve your objectives than user-written shell statements, or the desired result should be reconsidered from a security perspective. If your SAS programs need to interact with files, some better alternatives are discussed at the end if this article. Allowing arbitrary user-written shell statements in SAS programs is just asking for something malicious or damaging to happen.
Customers may wish to - or have to - migrate legacy SAS code which uses XCMD to SAS Viya. These customers would be wise to rewrite migrated code so that it does not use these language features, if they have the choice.
However, in reality we know that some customers' regulatory requirements demand that they to continue to run legacy code unchanged, even in new versions of SAS Viya.
Other customers determine - rightly or wrongly - that the risks to their business arising from rewriting legacy code in this way seem greater than the risks which come with running SAS compute sessions with XCMD enabled. Customers can mitigate some of these risks in a number of ways, such as limiting XCMD to run in SAS compute contexts which can only be used by a select group of users. But if XCMD continues to be used, then you should consider enabling SAS Watchdog to limit the filesystem paths which OS commands run through XCMD can access.
XCMD and SAS Watchdog demonstration
The walkthrough below uses code Phil Hopkins chose to demonstrate what happens with an XCMD statement which tries to access a file outside the LOCKDOWN paths list, in a SAS Viya environment with LOCKDOWN enabled (as it should be), and XCMD enabled.
This environment is running SAS Viya Stable 2025.09, but I think the behavior is likely the same in any version we currently support.
Hopefully it is clear by now that I am not advocating enabling XCMD. However, if you must, one way to enable it for a compute context is to add an attribute to the compute context with a name of allowXCMD, and a value of true.
To test whether XCMD is enabled or not, you can run the following SAS code statement in e.g. SAS Studio:
filename mypipe pipe "cat /etc/csh.login";
If XCMD is not enabled, you will get an error message like this in the SAS program log output:
ERROR: Insufficient authorization to access PIPE.
Normally that is a good thing! However, for this experiment we need to have XCMD enabled.
If XCMD is enabled, that command should run successfully, without producing a log message.
Test XCMD access to a filesystem path outside the lockdown path list with SAS Watchdog NOT enabled
Before we enable Watchdog, we will try to read input from that pipe, to see if we can get the output of the cat statement which tries to list the content of /etc/csh.login, which is outside the lockdown paths list:
/* Create a SAS dataset to store the output of the shell command */
data command_output;
infile mypipe truncover; /* Read from the pipe, handle lines shorter than max length gracefully */
input line $256.; /* Read each line of output into a variable named 'line' */
run;
If SAS Watchdog is not enabled (and XCMD is), the SAS program log output might look something like this:
NOTE: The infile MYPIPE is:
Pipe command="cat /etc/csh.login"
NOTE: 44 records were read from the infile MYPIPE.
The minimum record length was 0.
The maximum record length was 65.
NOTE: The data set WORK.COMMAND_OUTPUT has 44 observations and 1 variables.
In my environment, there are 44 observations in WORK.COMMAND_OUTPUT, and the content of the file is shown in the Output Data tab in SAS Studio:
Select any image to see a larger version.
Mobile users: To view the images, select the "Full" version at the bottom of the page.
So without SAS Watchdog, the end user can read the contents of a file which is outside the lockdown paths allow list. You can perhaps imagine what other operating system commands a user might try to run - there is no restriction imposed by SAS's software here. That is absolutely not desirable.
Enable SAS Watchdog
Enabling SAS Watchdog is a good idea if you are configure open source programming languages for use in SAS Compute sessions. It does add a little overhead to the CPU and memory use of compute server pods, for the watchdog sidecar container and the extra work it does, but in my opinion that overhead cost is very much worth it. It is also important to mention, especially to Kubernetes administrators, that SAS Watchdog runs with elevated privileges to perform its functionality.
To enable SAS Watchdog, follow the instructions in the README file at $deploy/sas-bases/overlays/sas-programming-environment/watchdog/README.md (for Markdown format) or $deploy/sas-bases/docs/configuring_sas_compute_server_to_use_sas_watchdog.htm (for HTML format). Doing that, I added a reference like this to the transformers: section of my deployment's kustomization.yaml file, and then redeployed SAS Viya:
- sas-bases/overlays/sas-programming-environment/watchdog
That line must appear somewhere before this line in the transformers: section :
- sas-bases/overlays/required/transformers.yaml
Having added the line, re-deploy SAS Viya in your usual way. If you have a SAS compute session running, start a new one to test that enabling SAS Watchdog worked. In SAS Studio you can choose Options > Reset SAS Session.
Test XCMD access to a filesystem path outside the lockdown path list with SAS Watchdog enabled
With SAS Viya redeployed and SAS Watchdog now enabled, try the same code again. There still should not be any errors in the SAS logs, but we will see if we get an error message from Linux, or if we can read the output of the cat statement which lists the content of /etc/csh.login:
/* Create a SAS dataset to store the output of the shell command */
data command_output;
infile mypipe truncover; /* Read from the pipe, handle lines shorter than max length gracefully */
input line $256.; /* Read each line of output into a variable named 'line' */
run;
If SAS Watchdog is enabled, the SAS program log output looks like this:
NOTE: The infile MYPIPE is:
Pipe command="cat /etc/csh.login"
NOTE: 1 record was read from the infile MYPIPE.
The minimum record length was 44.
The maximum record length was 44.
NOTE: The data set WORK.COMMAND_OUTPUT has 1 observations and 1 variables.
The key difference is in the last line: there is only 1 observation in WORK.COMMAND_OUTPUT. It contains the string "cat: /etc/csh.login: Operation not permitted".

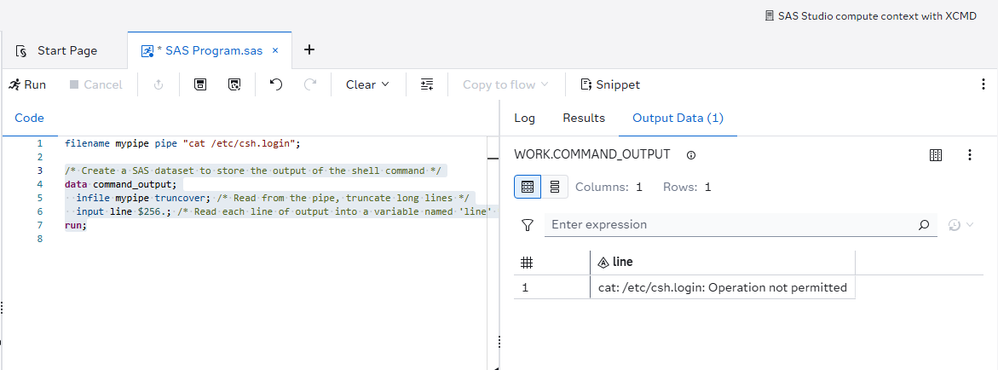

It looks like this in SAS Studio's output tab:
This is good! It gives a little bit of extra protection to the filesystem inside the SAS Compute server container, from users running XCMD commands to explore filesystem paths they have no reason to be exploring, or to run binaries they have no business to be running. It does not make XCMD safe, but it arguably makes it a little bit safer.
Prevent users from changing the SHELL environment variable to interfere with SAS Watchdog protection for XCMD
Following an initial review of the SAS Watchdog coverage of XCMD statements, and after reading an earlier draft of this post, Phil Hopkins raised an important concern regarding the SAS SHELL environment variable. In testing I found that if the user changes the value of the SHELL environment variable using an options statement, to change the path to the linux shell inside the Compute server container that is used to run XCMD commands, so that the shell is something other than /bin/sh, then XCMD statements are run successfully using the alternative shell, and SAS Watchdog no longer ensures that commands run through XCMD are monitored by the OS for requests to access to filesystem paths outside the allowlist.
If that seems confusing, it boils down to this. If you run the statement below, or something else similar which sets the SHELL environment variable to something that is a valid symlink to (or an actual executable for) a linux shell, but is not /bin/sh, in an environment with XCMD and SAS Watchdog enabled, user-written XCMD commands still work, but they can access filesystem paths outside the lockdown paths allowlist:
options set=SHELL="/bin/bash";
Fortunately, the SAS Administrator can and should prevent users from modifying the SHELL environment variable.
If you have to enable XCMD, do this in addition to enabling SAS Watchdog. As documented in How to Restrict Environment Variables Defined by the SET= System Option, the steps to follow to add an environment variable to a SAS_OPTIONS_SET_DENY_LIST are described in these two files in your SAS Viya deployment's sas-bases directory:
- $deploy/sas-bases/examples/sas-programming-environment/options-set/README.md
- $deploy/sas-bases/docs/controlling_user_access_to_options_set_statement.htm
To save you looking for them, the gist of the documented steps are:
- Copy the $deploy/sas-bases/examples/sas-programming-environment/options-set/deny-options-set-variables.yaml file to your site-config directory. You have to make it writeable too: chmod u+w deny-options-set-variables.yaml.
- Modify the deny-options-set-variables.yaml file as described in the docs above to add the SHELL environment variable to the value: attribute for the SAS_OPTIONS_SET_DENY_LIST list.
- Reference the deny-options-set-variables.yaml file in the transformers section of your kustomization.yaml in the normal way.
- Redeploy SAS Viya.
The deny-options-set-variables.yaml file looks like this with just the SHELL environment variable in the deny list, though the docs above suggest some other SAS environment variables you could consider adding too:
apiVersion: builtin
kind: PatchTransformer
metadata:
name: deny-set-options-variables
patch: |-
- op: add
path: /data/SAS_OPTIONS_SET_DENY_LIST
value: "SHELL"
target:
kind: ConfigMap
name: sas-programming-environment-path-config
After following those steps, in a new SAS compute session an attempt to change the SHELL environment variable in SAS program code fails, and produces this warning in the SAS program log:
WARNING: The SHELL variable cannot be set using the options statement.
The same method can be used to prevent users from modifying other environment variables. This is a bit like using restricted_options to prevent users from modifying other SAS system options for the programming run-time. For more on that, see Restricted options in SAS Viya compute, connect and batch servers. There are other ways to set SAS environment variables, but I think they all require you to be a SAS administrator. I believe this step is sufficient to close that avenue off from users. Please let me know if I missed a way end users can modify SAS environment variables.
But of course, discussing steps to secure XCMD is missing a greater point: if you take security for your SAS Viya deployment sufficiently seriously, do not enable XCMD at all. Instead, if you can, it is preferable to rewrite or change the design of migrated code so that it does not need to run user-written commands in a shell inside the SAS compute (or connect or batch) container at all.
XCMD is often used to interact with files. There are literally dozens of SAS functions for dealing with files, none of which require XCMD to be enabled. Examples include FILENAME (but not filename pipe which does use XCMD), FILEEXIST, FEXIST, FGET, FOPEN, FPUT, FREAD, FWRITE, and many, many others in the External Files category of SAS Functions and CALL Routines. All of these functions are of course protected by LOCKDOWN by default.
As mentioned at the beginning of this article, to learn what paths are in the LOCKDOWN paths allow list, or to add paths to it (as seen by the SAS compute, connect or batch process running inside its sas-programming-environment container in its pod), see my recent post Managing the LOCKDOWN allowlist: find out what paths are included, and add paths where necessary.
Acknowledgements
My thanks to Phil Hopkins for discovering the way SAS Watchdog also limits filesystem access for commands run through XCMD, for recognizing that changing the SHELL environment variable in SAS would potentially interfere with this, and for the SAS code statements I have replicated here to demonstrate it - they are great examples and illustrated what happened nicely. Thank you very much to Bob Huemmer for confirming our understanding of how SAS Watchdog worked, and that it covered a feature not included in our SAS Help Center documentation at the time.
Any errors or omissions in this post are mine.
