ODS RTF Proc Report; Header BorderWidth=0 still shows border?

[mcook]

Given the dataset Temp1 from the code below,  I am trying to generate a table with header borders like this  ( I manually added the borders in Word).

data Temp1;
	input Col1 $ Col2 Col3 Col4 Col5 Col6;
	datalines;
Set1 2 3 4 5 6
;
run;

ODS RTF File="&FilePath.\HeaderTest.rtf";
ODS Escapechar='^';
options nodate nonumber;

proc report data=Temp1
	Style(Report)=[rules=None Frame=HSides]
	style(Header)=[background=lightgrey]
	style(Column)=[just=c];
	Columns ('^{Style[borderbottomwidth=0
					borderrightwidth=0.1pt
					borderrightcolor=black]}'(Col1))
			('^{Style[borderbottomwidth=0]}'(Col2))
			('^{Style[borderleftwidth=0.1pt
						borderleftcolor=black
						borderrightwidth=0.1pt
						borderrightcolor=black]Span1}'(Col3 Col4))
		('Span2'(Col5 Col6));
	define Col1 / display
style(Header)=[bordertopwidth=0
/*		bordertopcolor=lightgrey*/
				];
	define Col2 / analysis
		style(Header)=[bordertopwidth=0
/*		bordertopcolor=lightgrey*/
		borderleftwidth=0.1pt
		borderleftcolor=black];
	define Col3 / analysis
		style(Header)=[
		borderleftwidth=0.1pt
		borderleftcolor=black
		bordertopwidth=0.1pt
		bordertopcolor=black];
	define Col4 / analysis
		style(Header)=[
		borderleftwidth=0.1pt
		borderleftcolor=black
		bordertopwidth=0.1pt
		bordertopcolor=black];
	define Col5 / analysis
		style(Header)=[
		borderleftwidth=0.1pt
		borderleftcolor=black
		bordertopwidth=0.1pt
		bordertopcolor=black];
	define Col6 / analysis
		style(Header)=[
		borderleftwidth=0.1pt
		borderleftcolor=black
		bordertopwidth=0.1pt
		bordertopcolor=black];
run;

ODS RTF Close;

Notice I used escape char to create an empty spanning header over each of Col1 and Col2.  Both those spanning headers have a borderbottomwidth=0 ,and Col1 and Col2 headers have bordertopwidth=0.

But this outputs the following

even with the border set to 0 from top and bottom, it still shows the border.

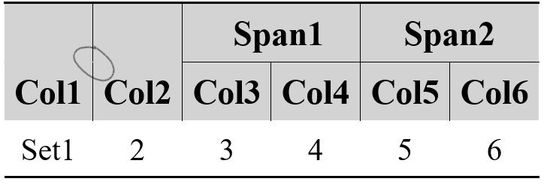

Then if I uncomment the 'bordertopcolor=lightgrey' for Col1 and Col2, it removes the border (or just masks it), but leaves a gap in the vertical column. (circled below, hopefully visible)

Why does the bordertop/bottom width=0 not remove the border and not result in a  solid vertical line?  Is it that the spanning header borders are done with ODS EscapeChar?  Is there a way around this? or is there another way to extend Col1 and Col2 headers up to the top frame, rather than generate dummy spanning headers?

[hlnquynh]

Hi,

Sorry for multiple replies..

I tried this code and it worked. A thin dash line is visible but it won't affect the printing.

proc report data=Temp1 split = '@'
  Style(Report)=[rules=None Frame=HSides cellspacing=0 ]
  style(Header)=[background=lightgrey borderleftwidth=0.1pt borderleftcolor=black borderrightwidth=0.1pt borderrightcolor=black ]
  style(Column)=[just=c bordertopcolor=black bordertopwidth=0.1pt borderleftcolor=white borderrightcolor=white borderbottomwidth=0.1pt borderbottomcolor=black];
Columns
("^S={borderleftwidth=0.1pt borderleftcolor=black}" (col1))
("^S={borderleftwidth=0.1pt borderleftcolor=black}" (col2))
("^S={borderbottomwidth=0.1pt borderbottomcolor=black borderbottomstyle=solid}Span1" (Col3 Col4))
("^S={borderbottomwidth=0.1pt borderbottomcolor=black borderbottomstyle=solid}Span2" (Col5 Col6));
define Col1 /display;
define Col2 /analysis;
define Col3 /analysis;
define Col4 /analysis;
define Col5 /analysis;
define Col6 /analysis;
run;
