How to display subscript in proc sgplot in y axis for multiple PK parameters in box plot

[thamu]

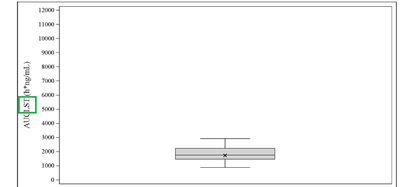

I need to subscript LST in AUCLST in PK figure. could you please anyone guide how to do it? I have multiple Parameters coming in sequence in same figure like CMAX, AUCINF etc..How to subscript in Y axis. I am using Proc SGPLOT for creating this box plot.

[DanH_sas]

You will need to use Unicode for the characters. The following is an example. Be sure to use a full-featured Unicode font. In this case, I chose "Times New Roman Uni", as you where using a serif-based font. Hope this helps!

ods escapechar '~';
proc sgplot data=sashelp.class;
    vbox weight / category=sex;
    yaxis label="AUC~{Unicode '2097'x}~{Unicode '209B'x}~{Unicode '209C'x}(h*ng/ml)" labelattrs=(family="Times New Roman Uni");
run;

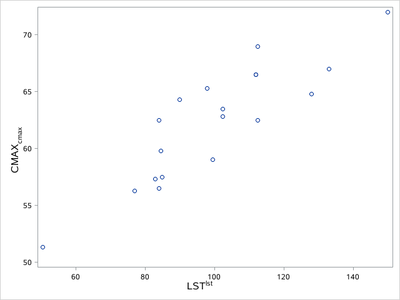

[Ksharp]

/*****************************/
%let label1=LST(*ESC*){sup 'lst'}  ;
%let label2=CMAX(*ESC*){sub 'cmax'} ;
data _anno;
length label $ 200;
 drawspace="layoutpercent"; function="text"; textweight="normal"; textsize=12;textcolor="black"; width=200;
 x1=50; y1=2.5;label="&label1."; output;
 x1=2.5;  y1=50;rotate=90;label="&label2."; output;
 run;
proc sgplot data=sashelp.class sganno=_anno;
scatter x=weight y=height;
xaxis label=' ';
yaxis label=' ';
run;
