suraestar
Calcite | Level 5

Hi ,

I want to generate a 100 percent stacked Bar chart using GTL Code?

PFA attachment for the expected output from GTL.

Can anyone help me in setting up the code ?

Thanks


1 ACCEPTED SOLUTION

Accepted Solutions
data_null__
Jade | Level 19

You have to make the data summary with the percent calculated within each group first.

proc sort data=sashelp.cars out=cars;
   by origin;
   run;
proc freq data=cars noprint;

by origin;
   tables type / out=g100;
   run;
proc print;

run;
proc template;

define statgraph bar100;
      begingraph;

layout overlay;

BARCHARTPARM X = origin y=percent / group=type;
            endlayout;

endgraph;

end;

run;
proc sgrender data=g100 template=bar100;
   run;

View solution in original post

9 REPLIES 9
suraestar
Calcite | Level 5

Hi,

Thanks.

But I want the options\statment in PROC TEMPLATE.... BARCHART statement..? Not using SGPLOT or GCHART.

data_null__
Jade | Level 19

RTM.  I did not intend to "like" your reply but I don't know how to "unlike".:smileyplain:

TMPLOUT=“filename

writes the Graph Template Language code for your graph to a file.

Jay54
Meteorite | Level 14

Due to its popularity, an option to do a "G100" like bar chart will be added to GTL and SG procedures soon.

Jay54
Meteorite | Level 14

Just  an FYI...

Dan just reminded me that G100 feature has been added to SGPLOT procedure with SAS 9.4.  User PCTLEVEL=GROUP;

sgplot data=sashelp.cars pctlevel=group;

  vbar origin / group=type stat=pct;

  run;

suraestar
Calcite | Level 5

Hi All,

Thanks for your replies.

The below is the code which I tried to generate 100% stacked bar chart without Y axis and below is the output which I got.output.PNG

proc template;
define statgraph bar100;
begingraph;
   layout overlay;
    barchart x=Origin /group=type
       stat=pct;
   endlayout;
  endgraph;
end;
run;

ods rtf file="c:temp\bar100.rtf";
proc sgrender data=sashelp.cars template=bar100;
run;
ods rtf close;

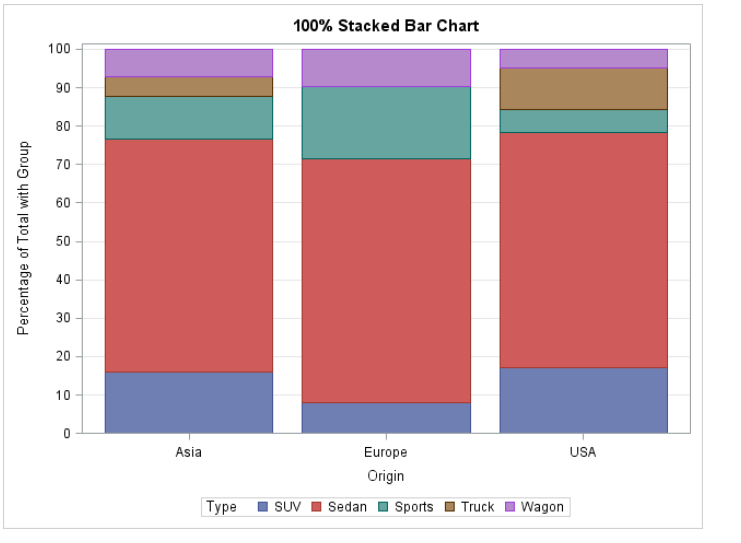

My expected Output is


Please suggest me how to generate since I am new to SAS graph.

Thanks.

data_null__
Jade | Level 19

You have to make the data summary with the percent calculated within each group first.

proc sort data=sashelp.cars out=cars;
   by origin;
   run;
proc freq data=cars noprint;

by origin;
   tables type / out=g100;
   run;
proc print;

run;
proc template;

define statgraph bar100;
      begingraph;

layout overlay;

BARCHARTPARM X = origin y=percent / group=type;
            endlayout;

endgraph;

end;

run;
proc sgrender data=g100 template=bar100;
   run;
suraestar
Calcite | Level 5

Hi,


I have one doubt.

Is it possible to give in BARCHART statement? or Do we need to use BARCHARTPARM ?

Does it make any difference in output since we are paasing the summarized data to the erender?
